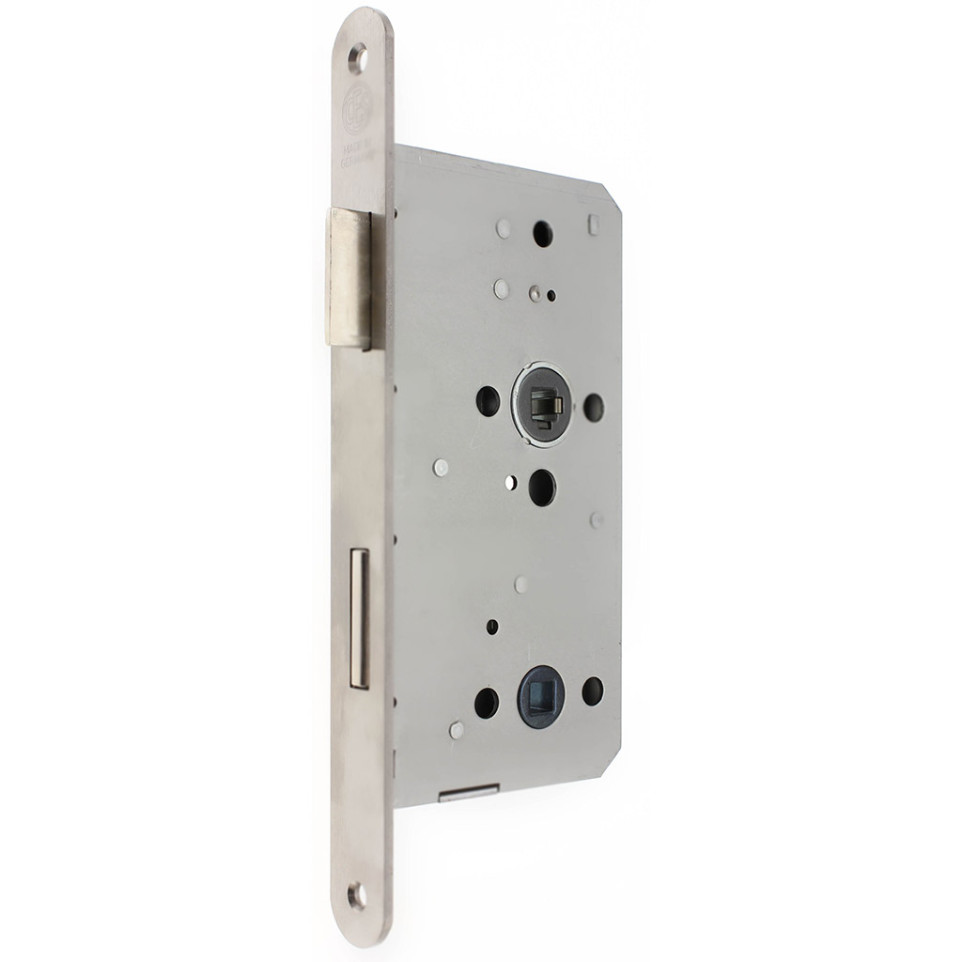

DIN Bathroom Lock CES 390 WC 55/78/8/24rd Left Hand/DIN R / pc

Usage

The Serrure DIN projets CES 390 WC 55/78/8/24rd left-handed lock is designed for secure locking of toilet or privacy doors in commercial and project-based environments. Its configuration is suited for DIN standard door setups.

Advantages

• Compatible with DIN-standard doors, ensuring easy integration in European projects.
• Left-handed (DIN R) version supports targeted installations where door handing matters.
• Simple one-point notch mechanism allows reliable basic security and smooth operation.
• Robust construction using corrosion-resistant materials extends product lifespan.
• Straightforward maintenance; mechanical simplicity reduces risk of malfunction over time.

Specifications

• Design: One-point notch lock with a latch bolt and deadbolt system, constructed from galvanized or nickel-plated steel; includes an 8 mm square spindle drive.
• Cylinder Compatibility: Accepts standard Euro-profile cylinders common to European locks.
• Main Dimensions: Backset: typically around 55 mm; Lockcase height: approximately standard for mortise locks (between ~150–200 mm); Follower: square, sized at 8 mm for spindle compatibility.
• Status Indicator Option: Designed specifically for privacy/WC doors—may have integrated occupancy indicator (visual status), depending on installation setup.

How it works

The lock is fitted into the door edge according to DIN standards. When engaged, the latch secures the door closed while the turn inside operates the privacy bolt for restroom use. The exterior may show occupancy status if equipped with an indicator, enhancing user convenience and privacy control.
