Product

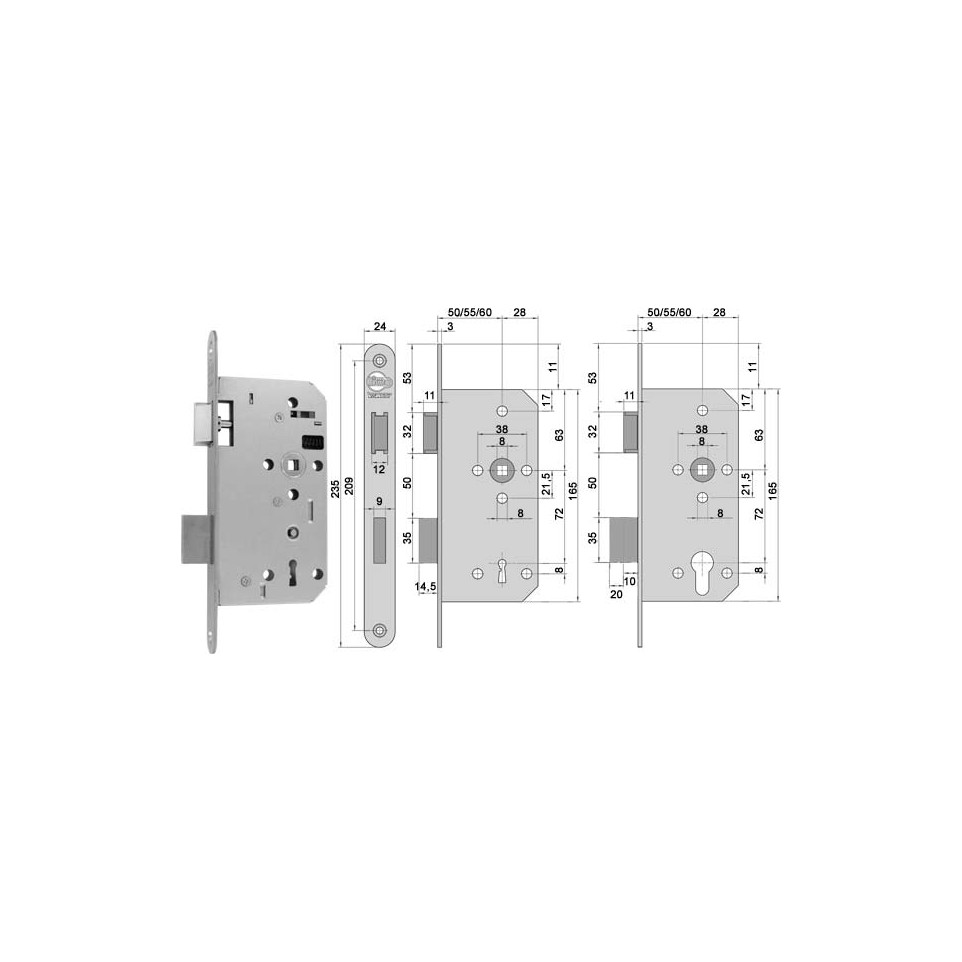

The Litto A13E6 reversible DIN lock is designed for secure door applications, featuring a single-turn nickel-plated zamak deadbolt and a robust, zinc-plated closed case. It is suitable for installations requiring compliance with DIN standards for 1 point notch locks.
Specifications
- Zinc-plated closed case; nickel-plated sintered steel latch; massive single-turn nickel-plated zamak deadbolt; synthetic follower; 8 mm square spindle; riveted cover
- Designed for durability and corrosion resistance; built to DIN standard dimensions
- Includes latch and anti-reverse springs, strike plate, and drilled holes for sleeve screw fitting
Usage
Install the lock into the door according to DIN standard measurements. The reversible mechanism allows simple adaptation for left or right opening doors. The included strike plate and mounting options allow secure attachment and reliable daily operation with compatible door handles.
FAQ
-
What type of doors is this lock compatible with?
This lock is compatible with interior and exterior doors that conform to DIN standards and require a 1 point notch lock system.
-
Is the latch reversible for left and right-handed doors?
Yes, the lock features a reversible mechanism, making it suitable for both left and right-handed installations.
-
What materials are used in the main locking components?
The latch is made from nickel-plated sintered steel, and the deadbolt is a single-turn design made from nickel-plated zamak.
-
Does the package include a strike plate?
Yes, a matching strike plate is included for complete installation.
-
What is the size of the spindle opening for the handle?
The spindle opening (follower) is designed for an 8 mm square spindle.
