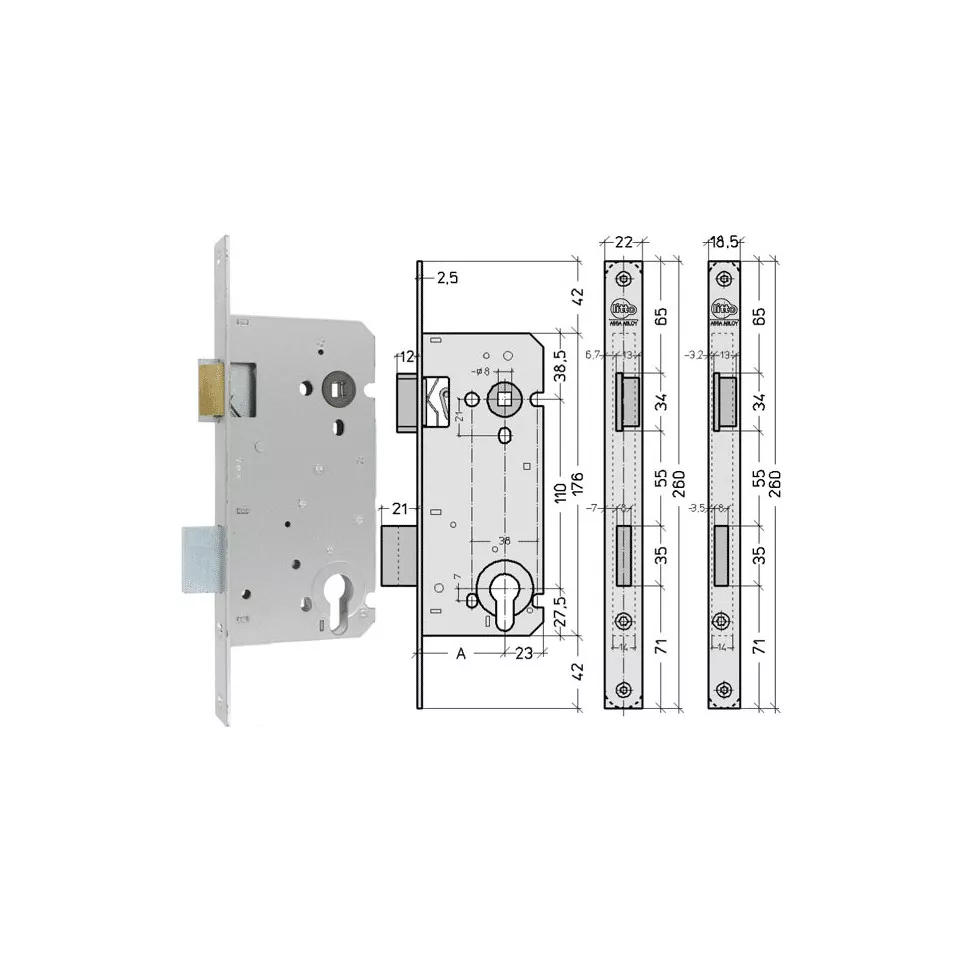

Litto A2658 70/110 Right Mortise Lock / pc

Product

The Litto A2658 70/110 right-hand notch lock is a robust and versatile solution designed for secure door locking in residential or commercial environments. Suitable for installations requiring a single-point locking system.

Specifications

• Open case, finished with epoxy lacquer for enhanced durability
• Equipped with a launching spring and counter-spring for smooth handle operation
• Synthetic nut with 8 mm spindle size
• Solid launching head
• Pre-drilled holes for sleeve screws to secure trim and fittings
• Striker plate included
• Bolt throw (deadbolt travel): 21 mm
• Designed for right-hand use and fits standard door lock cutouts

Usage

Install the lock within the prepared door cutout using the supplied striker plate and screws. The mechanism is activated by turning the handle, which engages the robust deadbolt and ensures reliable security with each use. Minimal maintenance is required to maintain optimal performance.

FAQ

1. Is this lock compatible with left-handed doors?
   No, this version is intended for right-handed doors only.

2. What is the size of the spindle required?
   The lock requires an 8 mm spindle for proper handle fitment.

3. Does the product include all necessary mounting hardware?
   Yes, the striker plate and required holes for sleeve screw mounting are provided.

4. Is the lock suitable for both wooden and metal doors?
   Yes, it is engineered for versatility and can be installed on most standard wooden or metal doors.

5. What is the bolt travel distance?
   The deadbolt throw is 21 mm, ensuring secure engagement with the frame.
