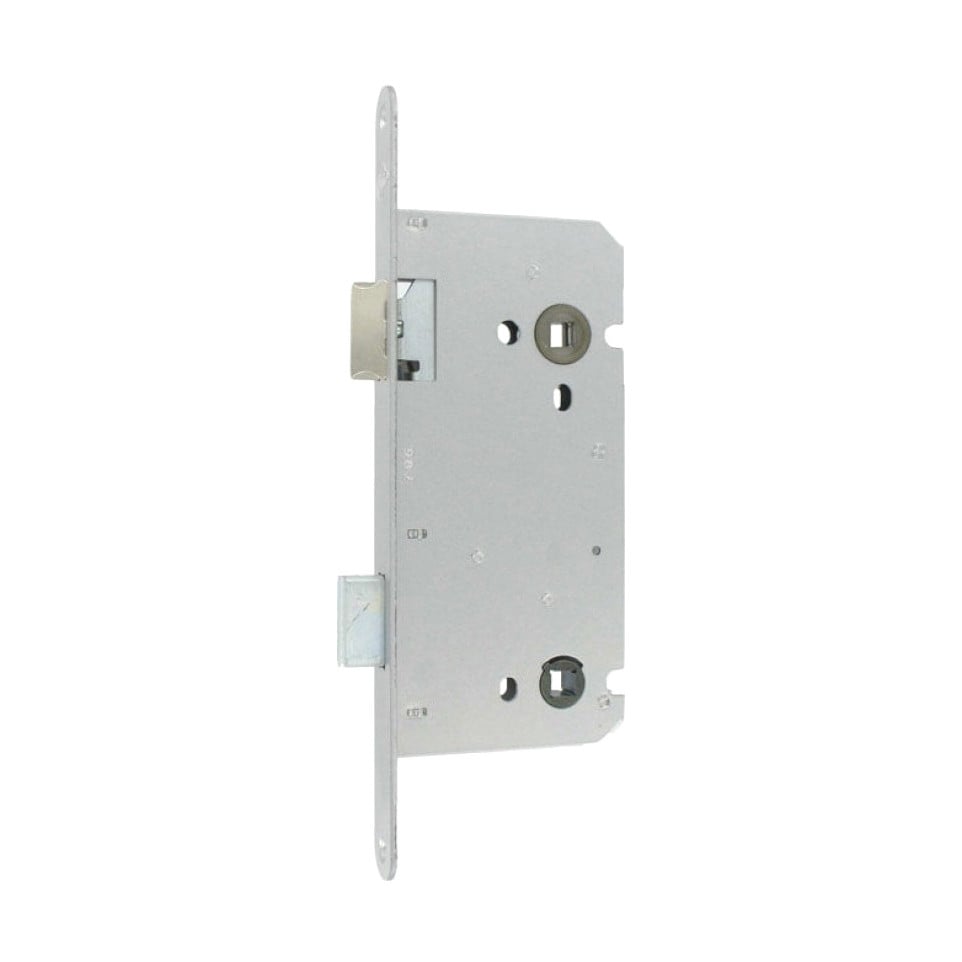

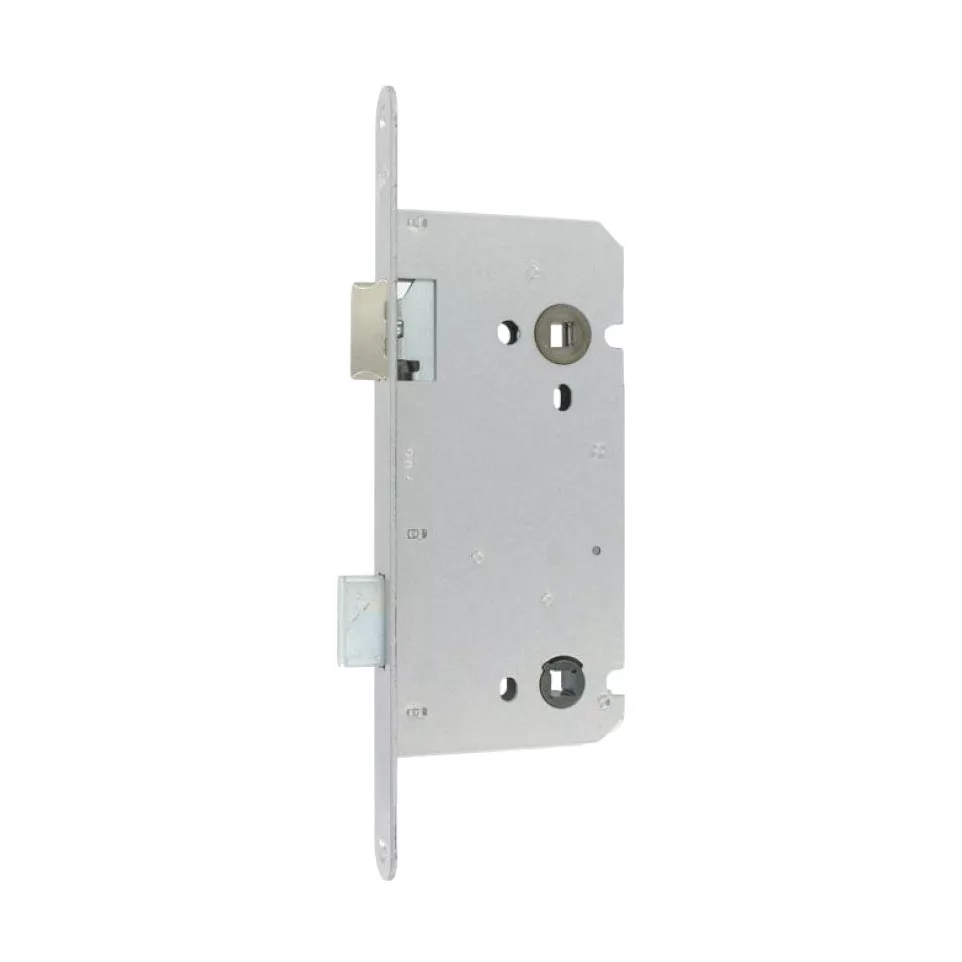

The Litto A1553 WC 55/116 is a single-point notch lock designed for interior wooden doors, ideal for use in bathroom or WC settings. This built-in lock features a reversible latch mechanism suitable for both left and right hinged doors.
Specifications
- Open case finished with epoxy lacquer for enhanced durability
- Includes a sprung latch and opposing handle return spring
- Synthetic spindle hub with 8 mm square spindle
- Solid zamak latch bolt head
- Patent holes for easy mounting with sleeve screws on door hardware

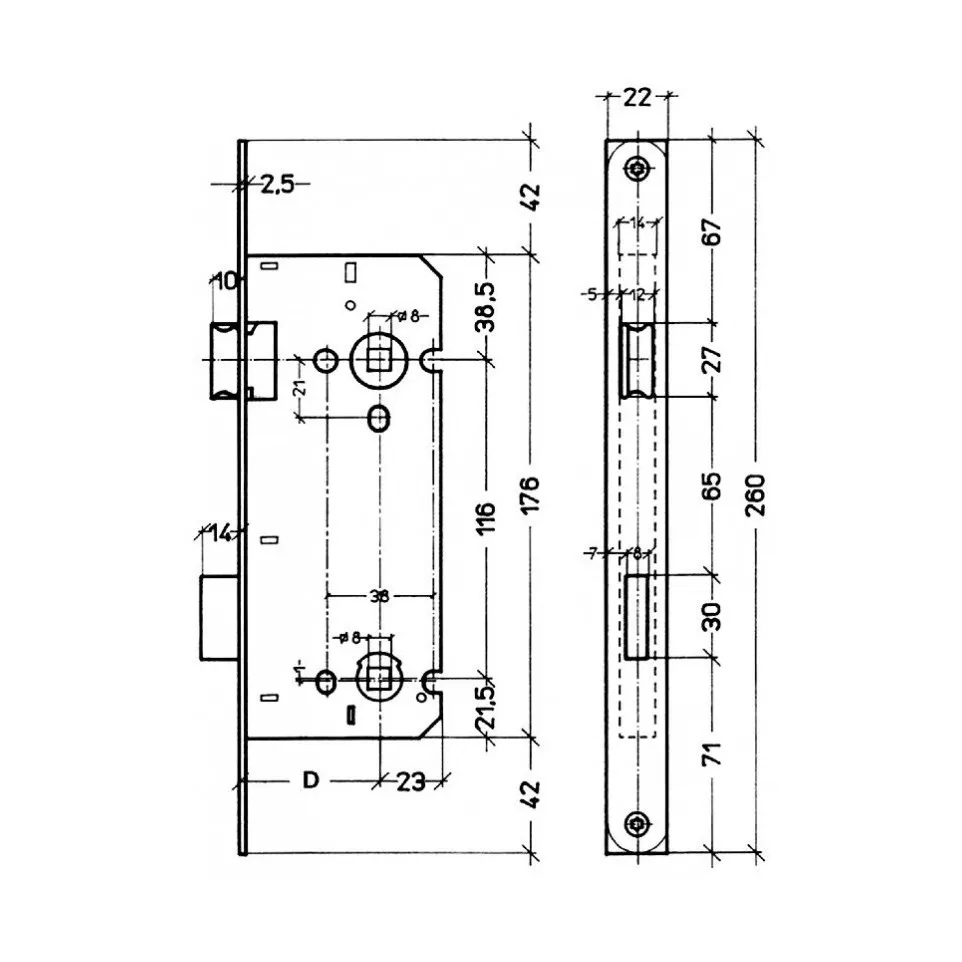

- Faceplate dimensions: 22 x 260 mm, rounded design
- Case dimensions: 176 x 73 x 14 mm
- Latch throw (deadbolt travel): 14 mm for the A1553 model
- Strike plate is not included
Usage
This WC lock is designed for straightforward installation in interior doors, providing privacy and security for bathroom spaces. The reversible latch allows for flexibility regardless of door orientation. The product is particularly suitable for replacing or upgrading existing locks where a clean, uniform fit with other Litto locks is desired.
FAQ
-
Is the latch reversible for both left- and right-handed doors?
Yes, the latch mechanism can be reversed to fit left- or right-handed doors.
-
Does the lock include a strike plate?
No, the strike plate (keeper) is not included and must be ordered separately.
-
What is the spindle size required for the handle?
An 8 mm square spindle is required for handle installation.
-
Can this lock be used as a direct replacement for other Litto models?
Yes, it is designed with standardized case and faceplate sizes, ensuring compatibility with other Litto internal door locks.
-
What materials are used for the latch and internal hub?
The latch head is made of solid zamak for strength, while the hub is constructed from durable synthetic material.
