Product

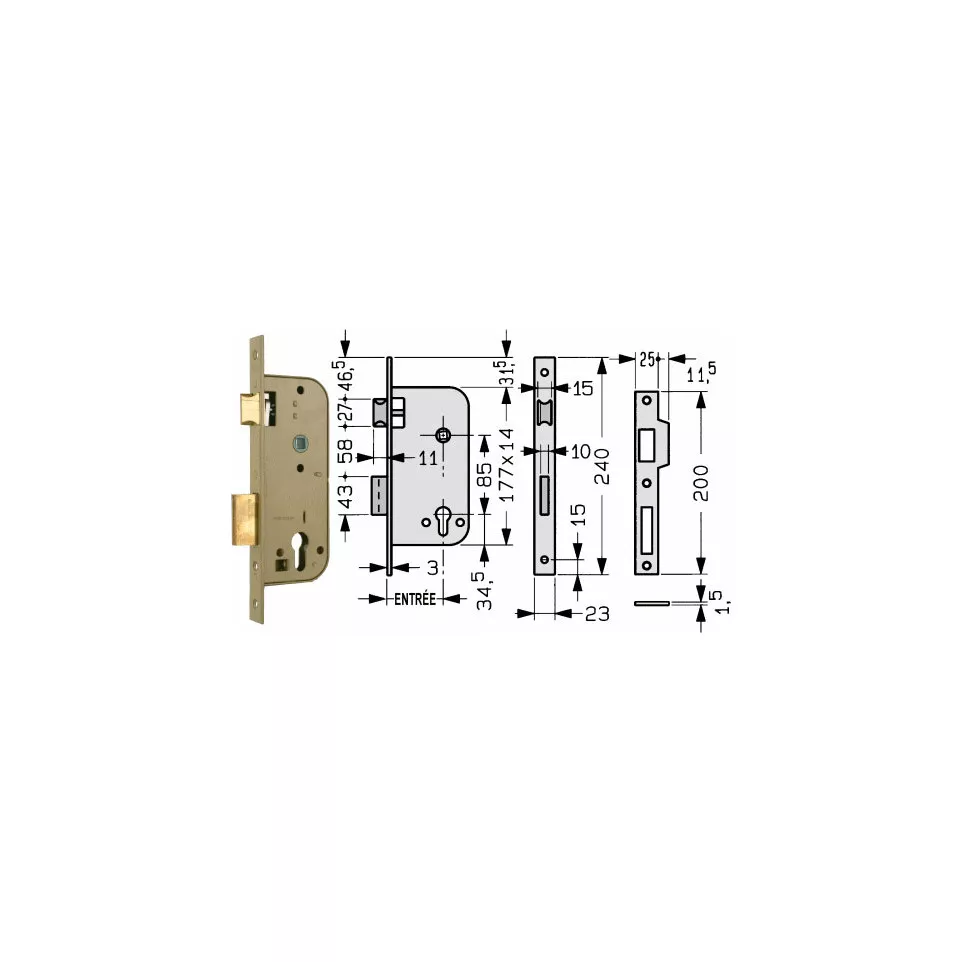

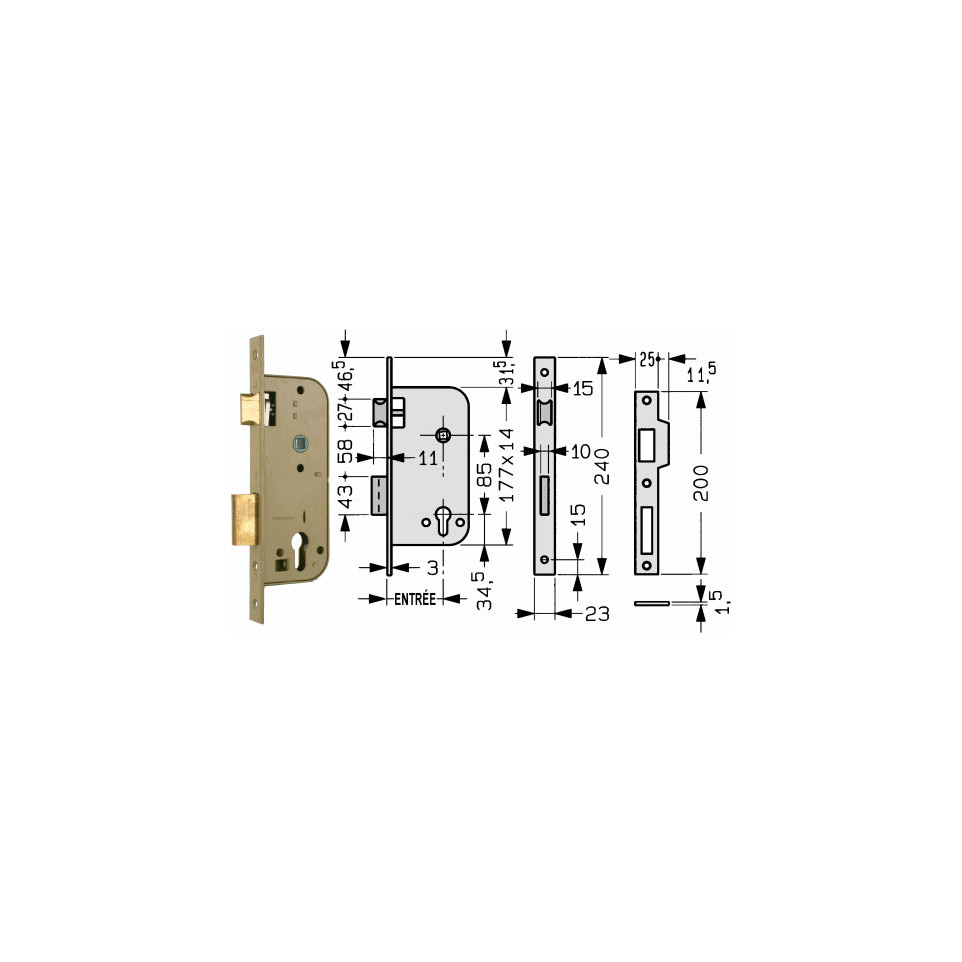

The Yale 520 60/85 cylinder lock is a robust single-point notch lock designed for securing doors in residential and commercial settings. It offers reliable access control suitable for applications requiring enhanced security and durability.
Specifications
- Reversible latch bolt for flexible installation
- Steel case, forend, and strike plate with lacquered finish
- Brass latch and deadbolt for increased durability
- Designed for PZ cylinders
- Security escutcheon holes from 35 mm backset
- 8 mm follower
- Deadbolt throw: 1 turn (20–30 mm in, 10 mm out), 2 turns (35–70 mm in, 21 mm out)
- Strike plate included
Usage
Install in a compatible door, using a PZ profile cylinder. The lock is engaged by turning the key, which operates the brass latch or extends the deadbolt according to the number of turns. Suitable for both new installations and replacements where a dependable mortice lock is needed.
FAQ
-
What cylinder type is compatible with this lock?
- It is designed for PZ profile cylinders.
-
Is the latch reversible for left or right-hand doors?
- Yes, the latch bolt is reversible for versatile fitting.
-
What materials are used in the construction?
- The lock features a lacquered steel body, forend, and strike plate, with brass components for the latch and deadbolt.
-
Does the product include a strike plate?
- Yes, a strike plate is supplied as part of the set.
-
What is the follower (spindle) size?
- The spindle (follower) measures 8 mm.
