Connection Bracket 32mm JB-D-W32/47 / Pc
€3.24
In stock
Usage

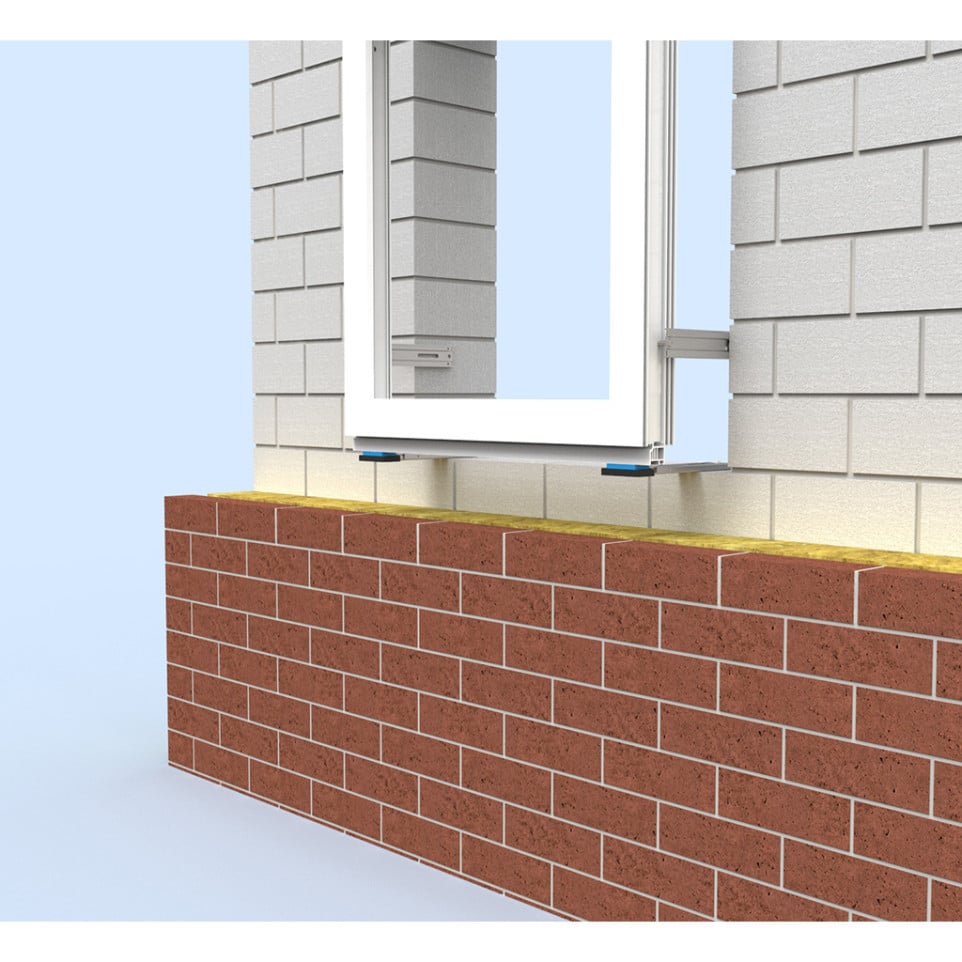

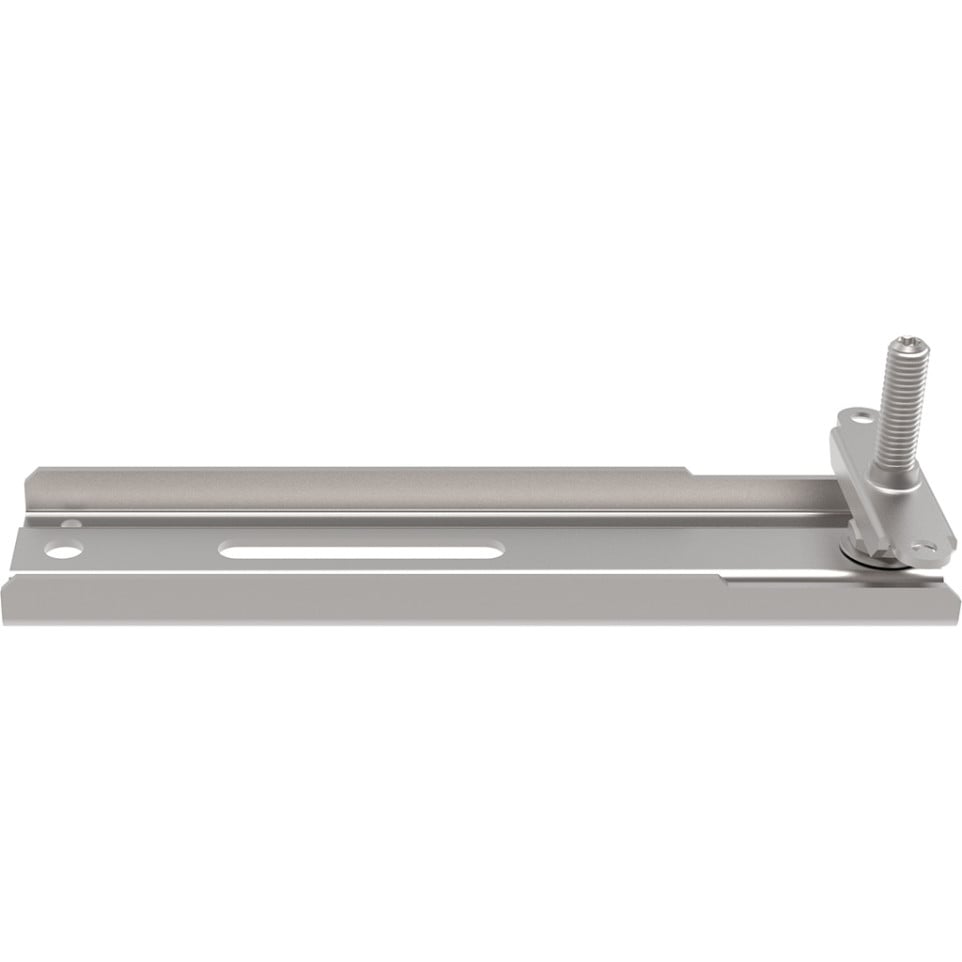

The JB-D-U185 U-shaped lateral bracket is designed for mounting and securing window frames or façade elements to various wall substrates in construction and renovation projects.
Advantages
- Supports the transfer of large structural loads safely
- Compatible with all common frame materials and wall substrates
- Provides high safety against fire, certified to DIN 4102-1 class A standards
- Burglar resistance tested and thermally calculated for performance assurance
- Enables flexible installation, including cantilever applications up to 150 mm if required
Specifications
- Constructed from S350 galvanized steel with a material thickness of approximately 2.5 mm
- Non-combustible classification according to DIN 4102-1 class A; ift certification available
- Lateral bracket length: approx. 185 mm (U-form); width typically matching system requirements (e.g., ~47 mm)
- Differentiated by rigid design that ensures point load transfer; suitable for use as part of the structurally certified JB-D® PLUS system
How it works

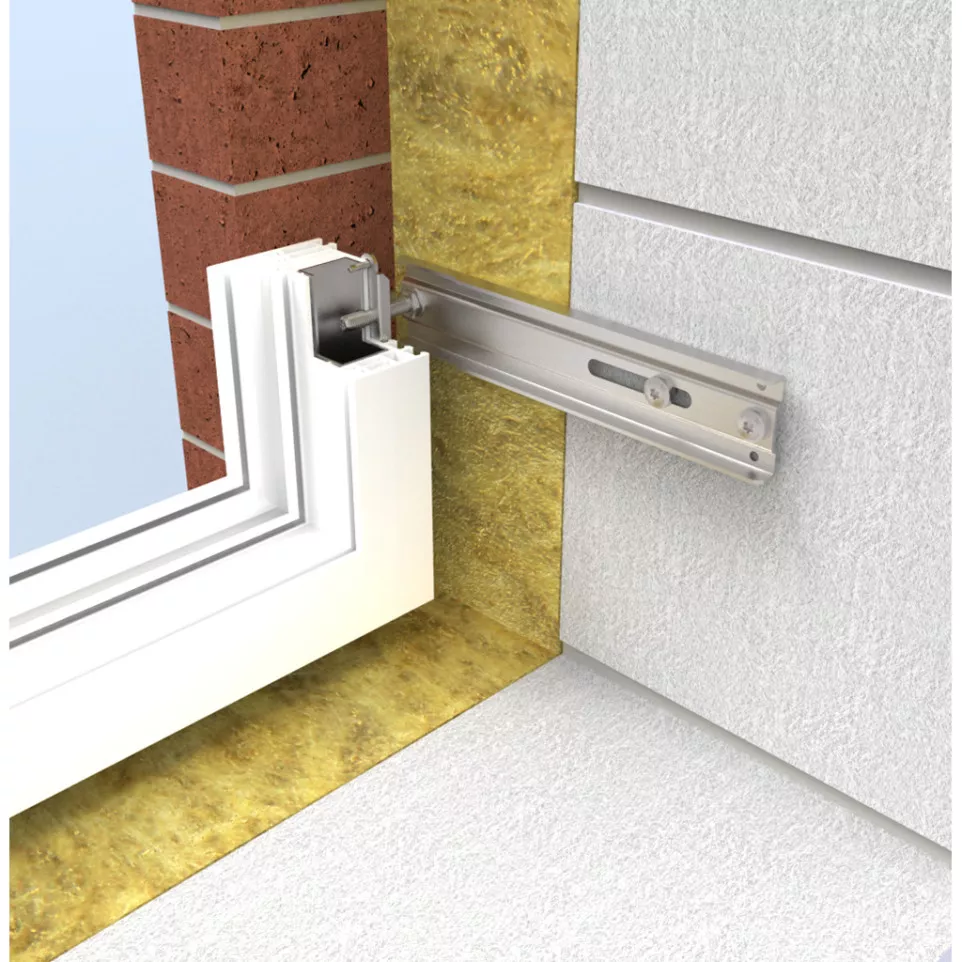

The U-shaped lateral bracket is anchored between the window frame or façade element and load-bearing wall structure. It transfers forces as point loads through its rigid form, enabling secure and compliant installation in new builds or retrofits while allowing flexibility in alignment and substrate compatibility.
