Usage

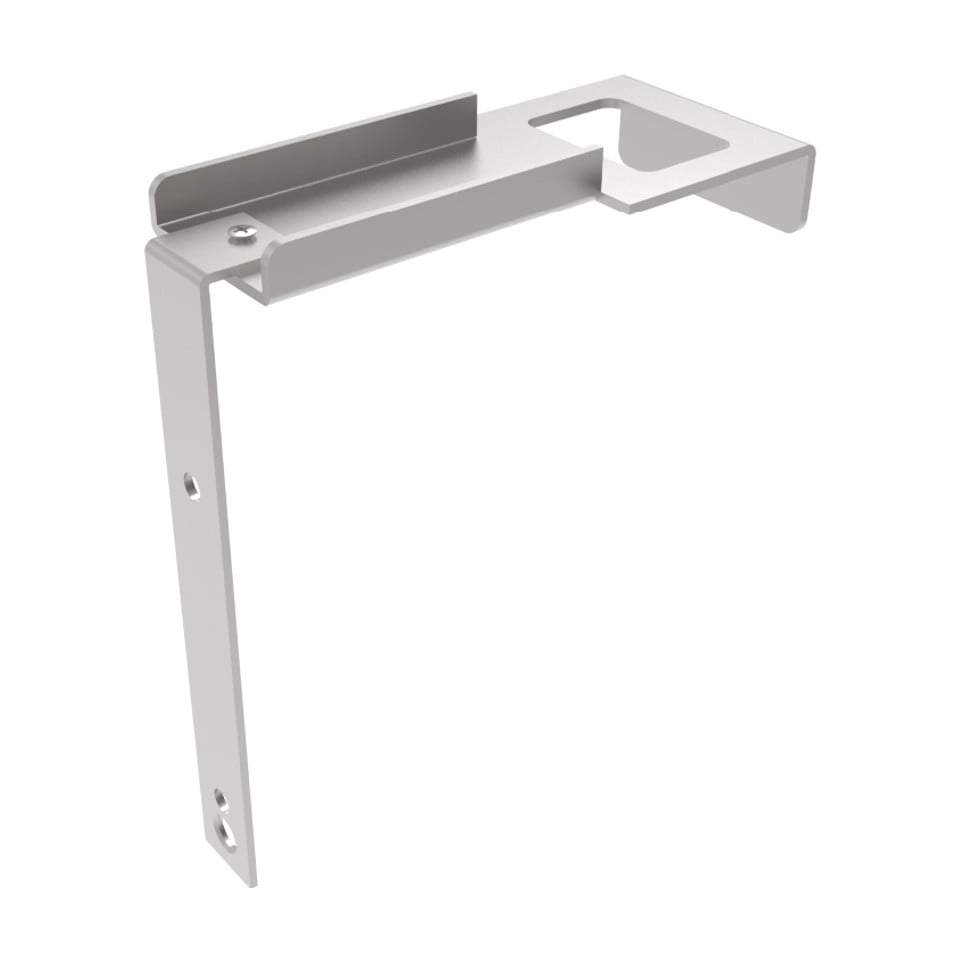

The Pince murale inférieure 175mm JB-D-CB175 is designed for securely mounting and supporting windows in front of wall installations. It is primarily used as a lower wall bracket in conjunction with compatible frame systems, suitable for various construction substrates.
Advantages
- Supports high loads with documented component load capacities for safe and durable window installation.
- Manufactured from non-combustible galvanized steel compliant with DIN 4102-1 class A fire safety requirements.
- Simplifies height adjustment and leveling using standard spacers, facilitating precise alignment during installation.
- Compatible with all common frame materials, extensions, and multiple wall types including concrete, lime-sandstone, timber, aerated concrete, or hollow brick.
- If applicable: Relatively flat bearing surface minimizes obstructions for follow-up trades such as sealing or ETICS tasks.
Specifications
- The bracket is made from S350 galvanized steel (GD Z275), ensuring strength and protection against corrosion.
- Carries certifications including ift approval (for burglar resistance) and National Technical Approval Z-14.4-806; meets relevant safety standards for structural mounting applications[1].
- Bearing plate has a typical width of approximately 25–32 mm; length suited to support window cantilevers up to a maximum of around 150 mm depending on substrate[1].
- The design enables rigid point-load transfer from the installed element directly into the building structure; features allow quick connection to system accessories such as sill profiles[1].
How it works

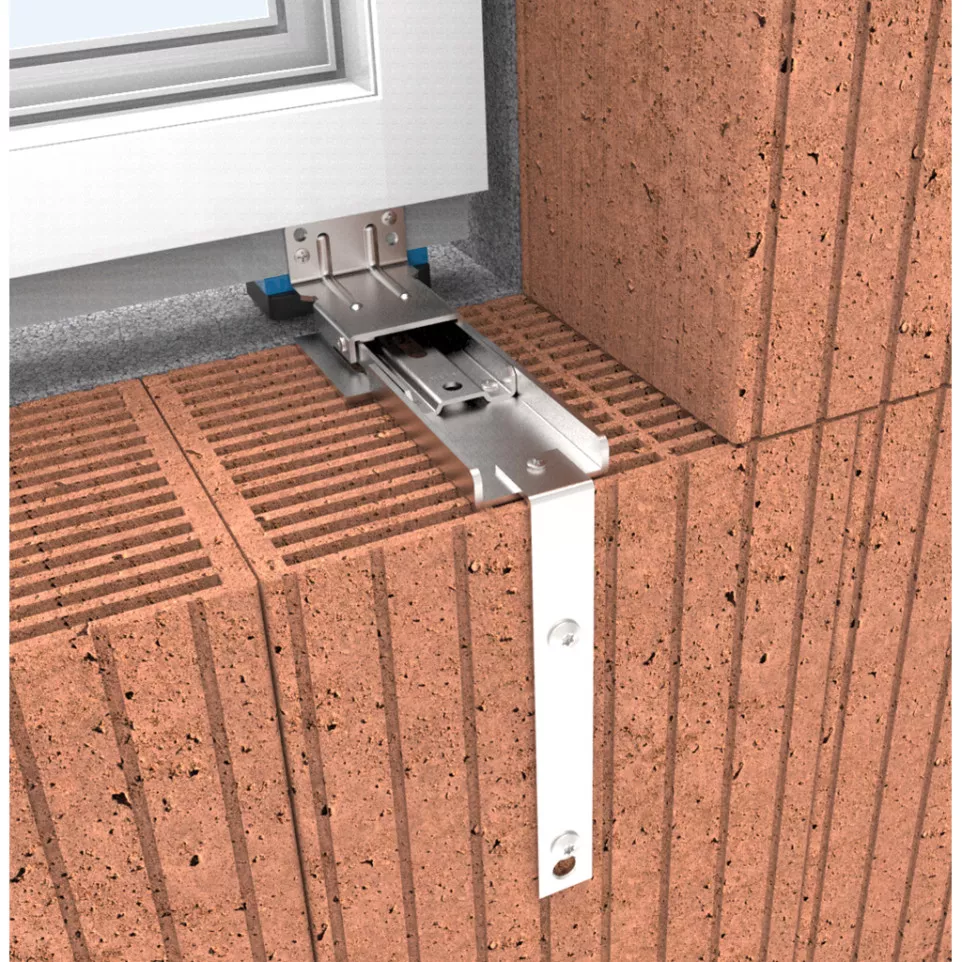

This lower wall clamp is fixed onto the designated substrate using appropriate anchors. The window or façade element rests upon the bracket’s bearing surface, which transfers static loads safely into the structure while allowing easy vertical adjustment before final fixing.
