Usage

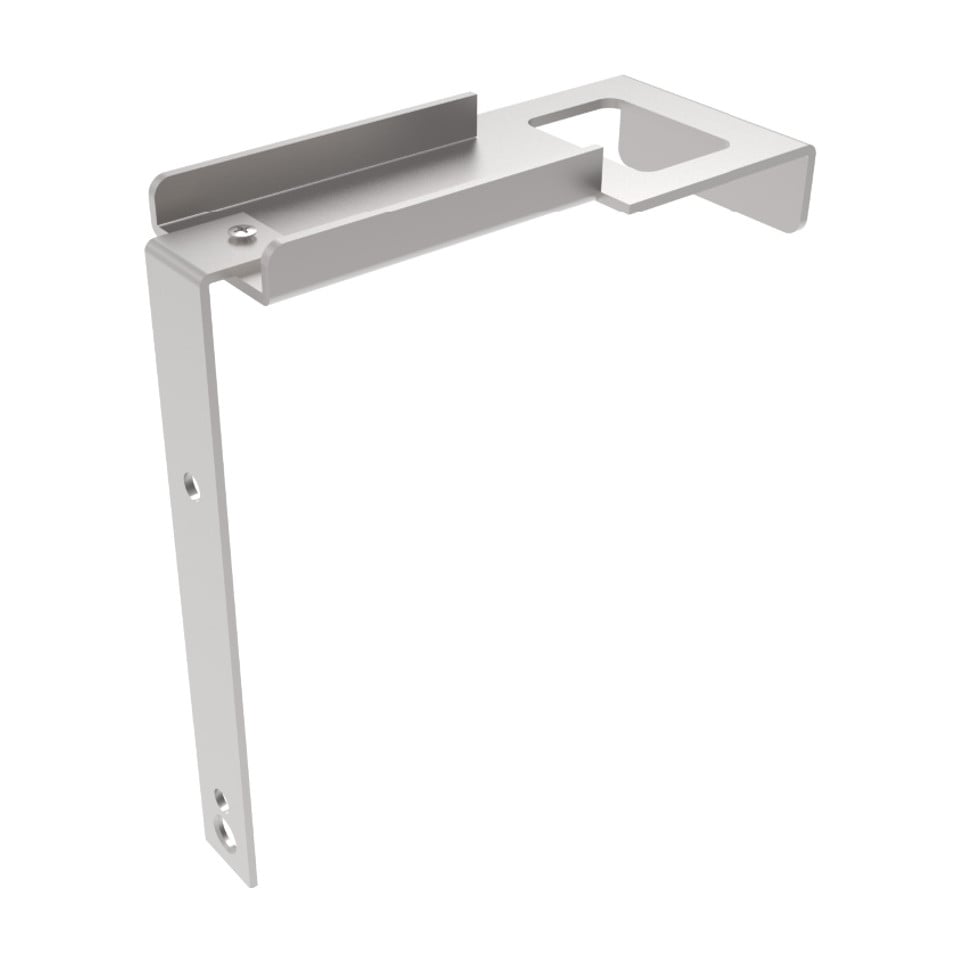

The Pince murale inférieure 240mm JB-D-CB240 is designed for secure, load-transfer mounting of window frames or similar structural elements to building walls. Suitable for various substrates including concrete, brick, and timber.
Advantages
- Enables reliable point load transfer from windows to wall structures
- Constructed from non-combustible galvanized steel for fire resistance
- Supports a wide range of wall types and frame materials
- Simplifies installation with adjustable height and flat bearing surface
- Certified durability with proven performance under loads; high fire safety standard (DIN 4102-1 class A)
Specifications
- Made from S350 or S355 galvanized steel in accordance with DIN standards for strength and fire safety (class A)
- Carries ift certification and National Technical Approval (abZ), ensuring compliance with European construction standards
- Total length: 240 mm; designed to handle significant structural loads as documented by technical data sheets
- Differentiating features include compatibility with frame extensions, hollow bricks, aerated concrete, timber, and more; allows use as a cantilever up to specified lengths depending on substrate type (see manufacturer tables for details)
How it works

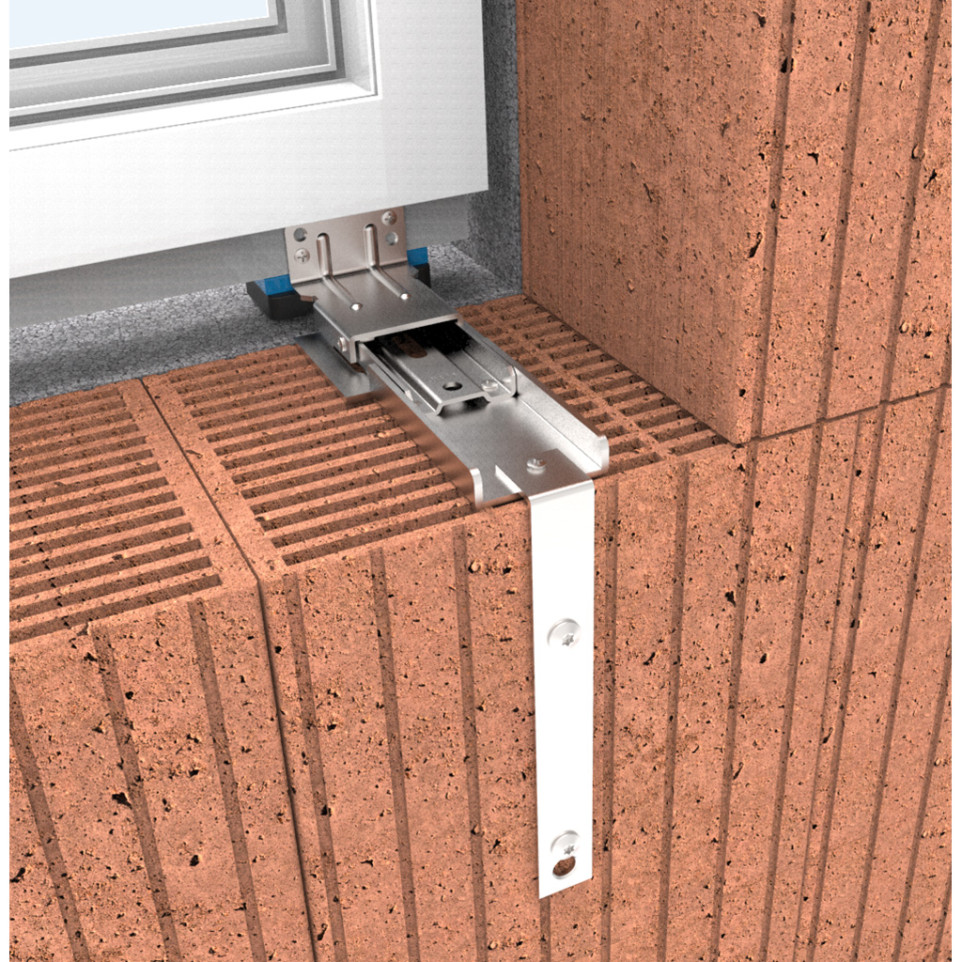

The bracket is fixed directly onto the supporting wall using appropriate fasteners. It provides a stable base that transfers the weight and forces from window frames directly into the structure. Installation is quick due to its flat surface design and allowance for adjustment using standard spacers.
