Product

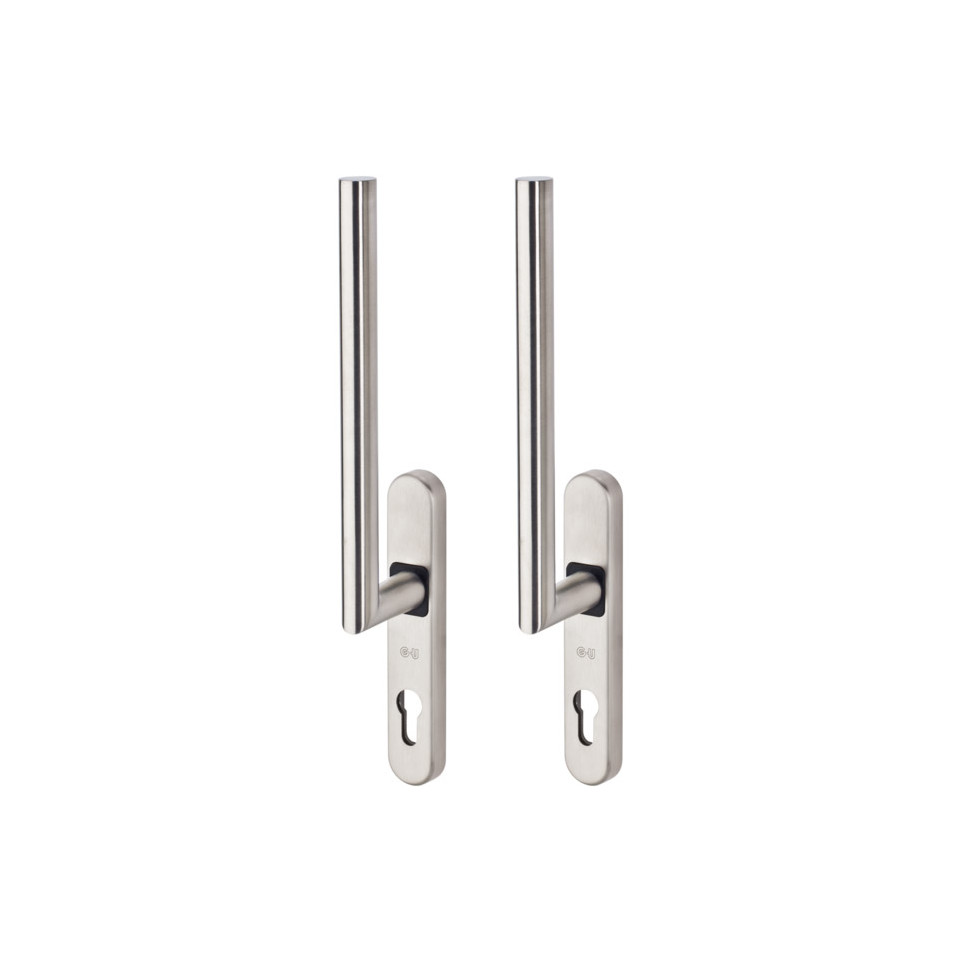

Double stainless steel GU Forte handles with L-90° PZ profile, Ø20mm, are engineered for lift-and-slide frames. They provide a robust and ergonomic gripping solution for modern sliding door systems.
Specifications

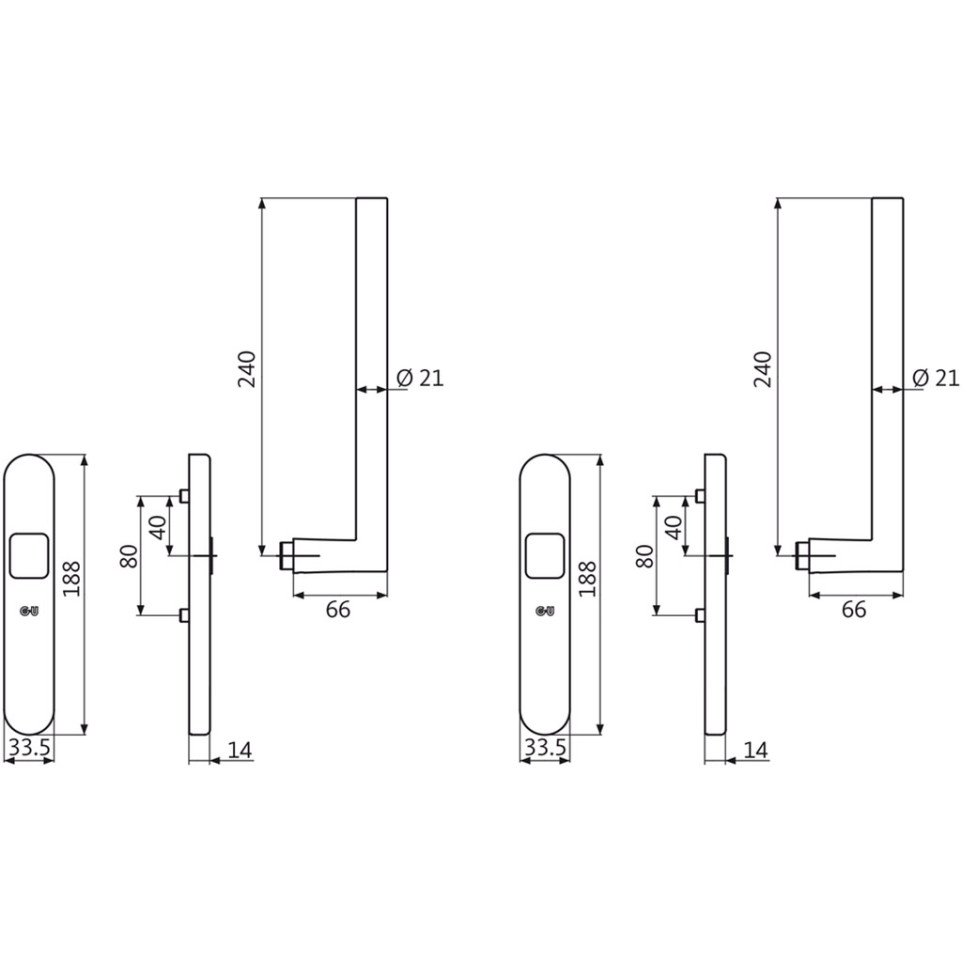

- Ø20 mm hollow stainless steel tube, length 240 mm, brushed finish
- Mounted on a 34 x 187 mm oval rose with dual 180° positions for lift-and-slide system compatibility
- Substructure in zamak with stainless steel cover
- Concealed M6 screw fixing, screws included
- Includes 10 x 145 mm spindle and two 100 mm M6 breakable screws for frame thicknesses between 45–90 mm
Usage
Install the handles on lift-and-slide chassis by securing them with the supplied M6 screws and spindle. The design ensures seamless integration and secure attachment with invisible fixings, suitable for both residential and commercial applications.
FAQ
-
What door types are compatible with these handles?
These handles are designed for lift-and-slide frames, specifically for sliding door systems.
-
Is mounting hardware included?
Yes, the handles come with all necessary mounting screws and components for installation.
-
What materials are used in the construction?
The grips are made of brushed stainless steel on a zamak substructure with a stainless steel cover.
-
Can the handle fit different door thicknesses?
Yes, the included sectionable screws allow for compatibility with door thicknesses from 45 mm to 90 mm.
-
Is the fixing system visible after installation?
No, the handles use a concealed fixing system for a clean and seamless appearance.
