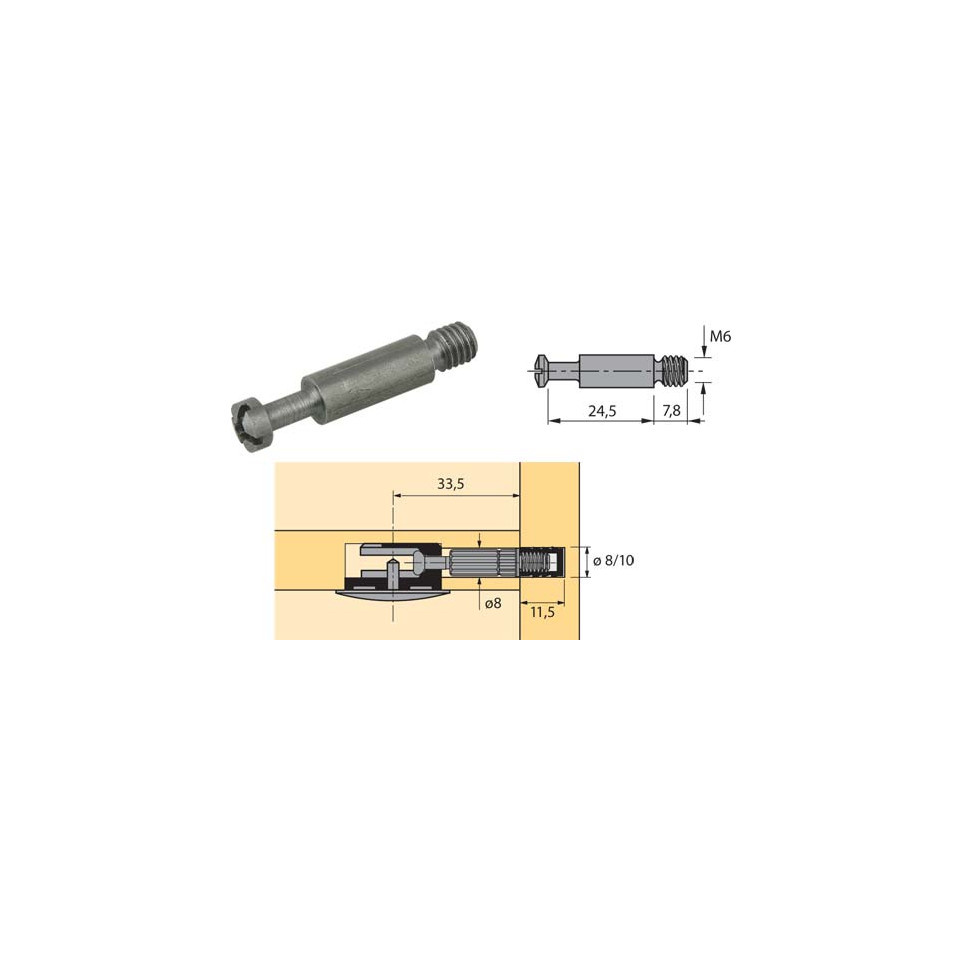

Hettich DU 643 is a screw-in dowel with M6 thread, designed for secure connections in furniture frames. Compatible with RASTEX 25, it's suitable for cabinet assembly and other carcase applications.
Specifications
- Thread: M6 x 7.8 mm
- Tension length: 24.5 mm
- Material: Zinc-plated steel
- Designed for use with RASTEX 25 cam fittings
- Separate M6 sleeves required, reference FG 211038 or FG 211039
Usage
Insert the DU 643 dowel into the designated pre-drilled hole and screw in using the M6 thread. For a complete connection, use the appropriate RASTEX 25 cam fitting and order the corresponding M6 sleeves separately. This provides a stable and durable joint for furniture frame construction.
FAQ
-
What is the thread size of this dowel?
The thread size is M6 x 7.8 mm. -
What is the recommended application?
It is intended for use in furniture frame assembly, particularly with RASTEX 25 cam fittings. -
Is the dowel supplied with sleeves?
No, M6 sleeves must be ordered separately using the reference FG 211038 or FG 211039. -
What material is the DU 643 made from?
It is manufactured from zinc-plated steel for corrosion resistance. -
How long is the dowel?
The dowel has a tension length of 24.5 mm.
