Product
Hettich VB 36D eccentric cam connector is a slim fitting designed for strong, durable assembly of 19mm furniture shelves to side panels, utilizing a proven cam locking technology for secure and lasting joints in furniture construction.
Specifications
- Made from robust materials, supporting 19mm panels
- Designed for use with the System 32 drilling pattern (32mm bore spacing)

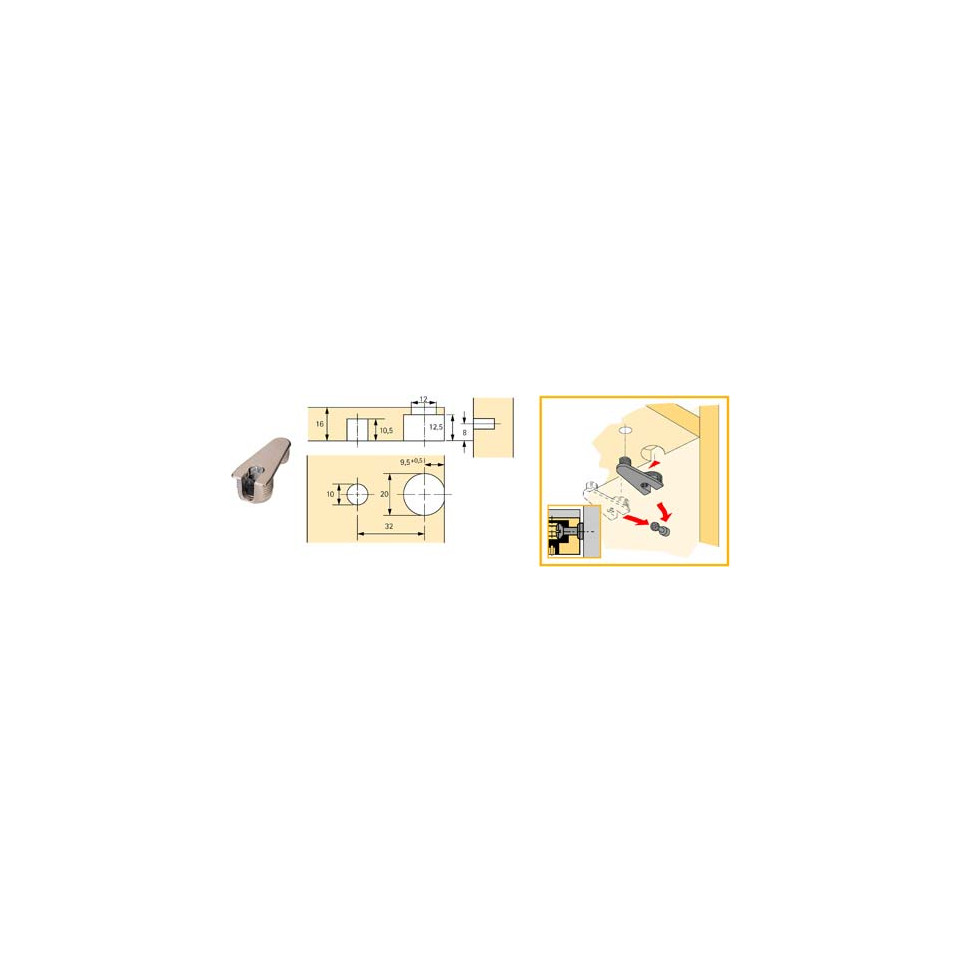

- Requires double bore holes: Ø 20mm and Ø 10mm
- Allows top or side shelf insertion for flexible assembly
- Cam mechanism can also be locked from above when used in bottom panels (with through-hole)
- Compatible with dowels FG 211013, FG 211016, FG 211017, FG 211018
Usage
Simply insert the connecting fitting into the pre-drilled 20mm and 10mm holes with 32mm spacing on shelf and side panels. The shelf can be installed from the top or side, then tightened using the eccentric cam. For bottom panels, the cam can be accessed and locked from above by drilling through the panel if needed.
FAQ
-
What panel thickness is the VB 36D connector suitable for?
The fitting is specifically designed for 19mm thick panels. -
What drilling pattern is required?
Use a 32mm system drilling with 20mm and 10mm diameter holes for installation. -
Can the connector be used for shelves installed from the side or top?
Yes, the shelf can be inserted and secured from either the side or the top. -
Is additional hardware needed for assembly?
Compatible dowels FG 211013, FG 211016, FG 211017, and FG 211018 are required for complete installation. -
How do I access the cam for bottom panels?
On bottom panels, the cam can be locked from above by drilling a hole through the panel.
