Usage

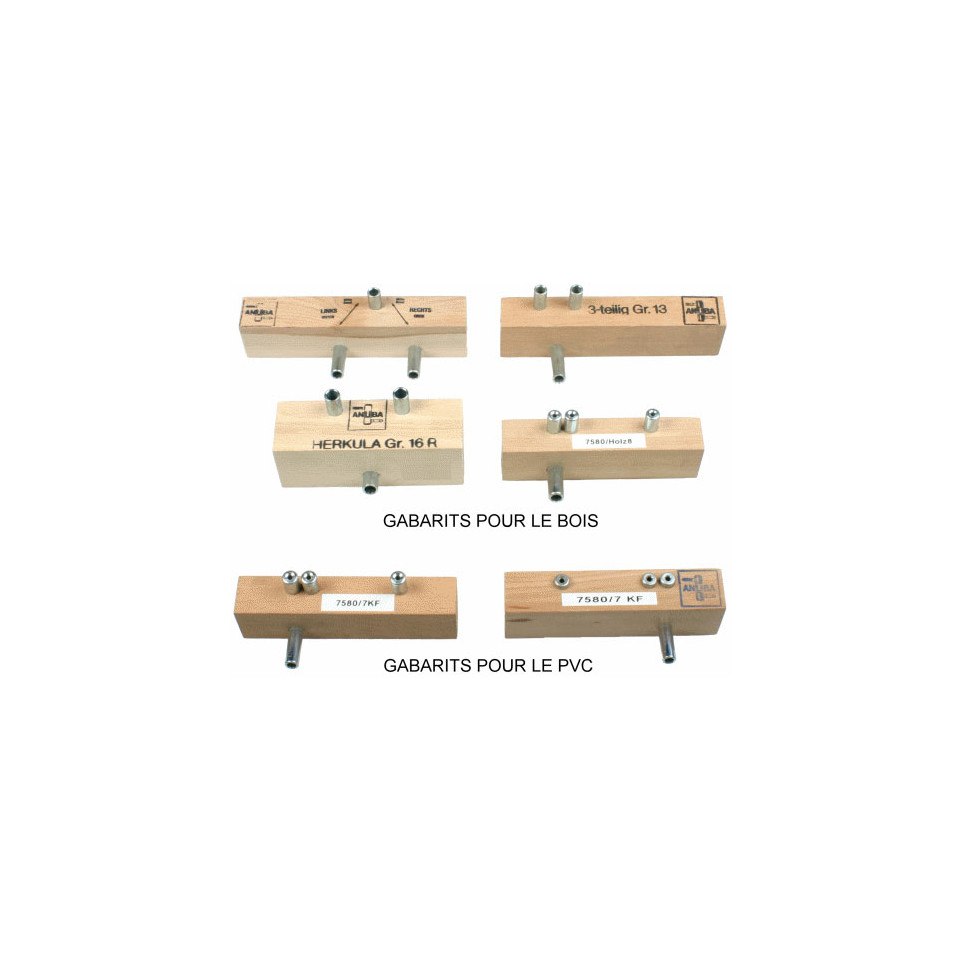

This template block is designed for the precise placement of 3-pin "HERKULA" Ø13mm Anuba hinges on doors and frames, ensuring accurate installation for secure and durable fittings in woodworking and carpentry projects.
Advantages
- Allows quick and accurate alignment of 3-pin Anuba hinges during installation
- Reversible design accommodates left or right-handed applications
- Clearly marked with diameter information for easy identification
- Simplifies repetitive drilling tasks with consistent results
- Slight limitation: Compatible only with specific pin diameters (Ø13mm)
Specifications
- Milled from durable material suitable for intensive workshop use; labeled with “HERKULA Gr.” to indicate compatibility with Ø13mm pins[1][3]
- Reversible construction enables use on both sides of the frame or door[1]
- Pins accurately spaced and aligned per standard Anuba hinge configurations; ensures correct pilot hole positioning every time[1][10]
- Differentiated from other templates by its exclusive fitment to HERKULA model and clear size markings; contributes to error-free assembly even in high-volume production environments[1][3]
How it works
The template is placed against the door frame or sash, orienting the opening direction as indicated. It is then secured in place, guiding drill bits precisely for each pin location. This guarantees uniform fitting after hinge placement.[1][3]
