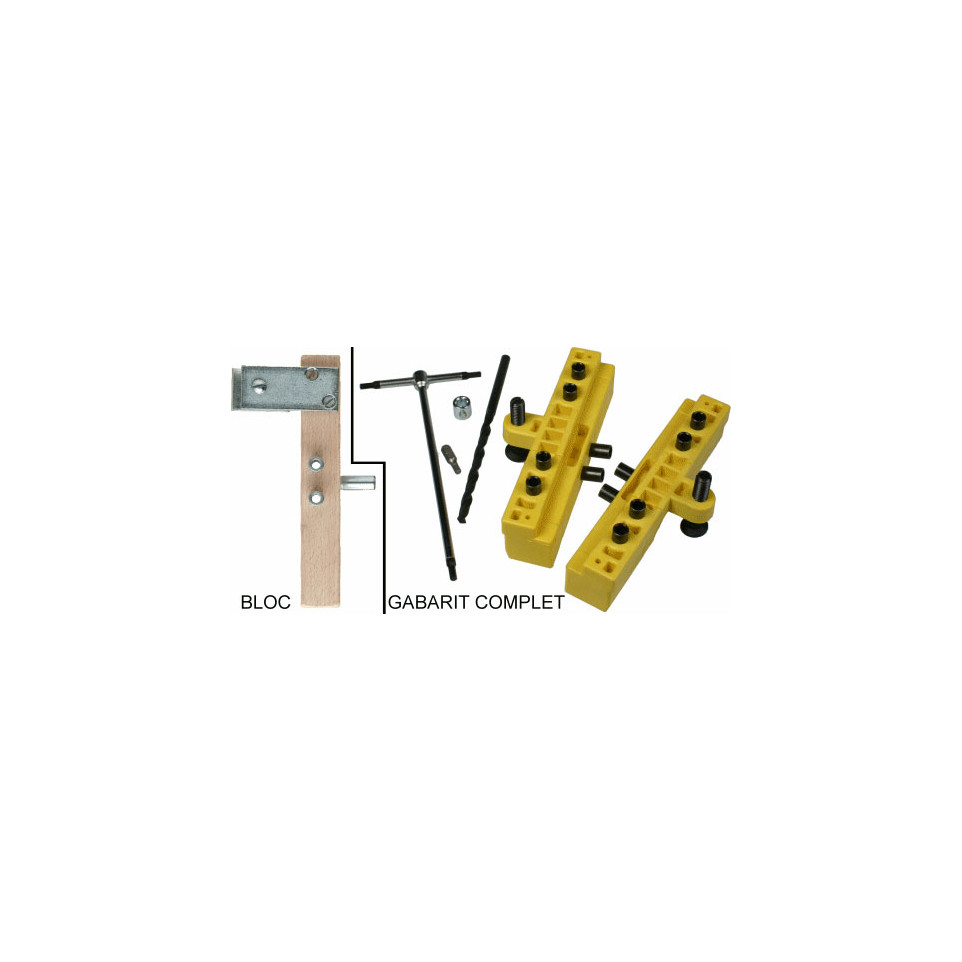

This adjustable template with four Ø16mm stems is designed for precise installation of Otlav 499 hinges. Supplied as a complete kit, it ensures accurate, repeatable positioning for hinge and plug systems in woodworking and door manufacturing.
Position the template blocks on the workpiece, adjust the four Ø16mm stems for the required fitting, and secure in place. Use the included stepped drill bit and hex driver for pilot holes, ensuring perfect alignment. The adjustment key allows for fine-tuning, supporting both new installations and replacements.
What components are included in the kit?
The kit comes with two template blocks, one stepped drill bit, one adjustment key, and a hexagonal driving bit.
Is this template compatible with all Otlav hinges?
It is specifically engineered for Otlav 499 Ø16mm hinges and similar systems using Ø16mm plugs.
Can the stem positions be adjusted for different hinge layouts?
Yes, the four stems are fully adjustable to suit varying installation requirements and layouts.
What material thicknesses can this template accommodate?
It is designed for standard door and panel thicknesses as used with Otlav 499 hinges.
Is special training required to use this template?
No special training is required; clear instructions and precise adjustment features support both novices and professionals.
mvm-dt-2025-07-07
| Brand | Otlav |
|---|---|
| Description | GABARITS COMPLETS : |
