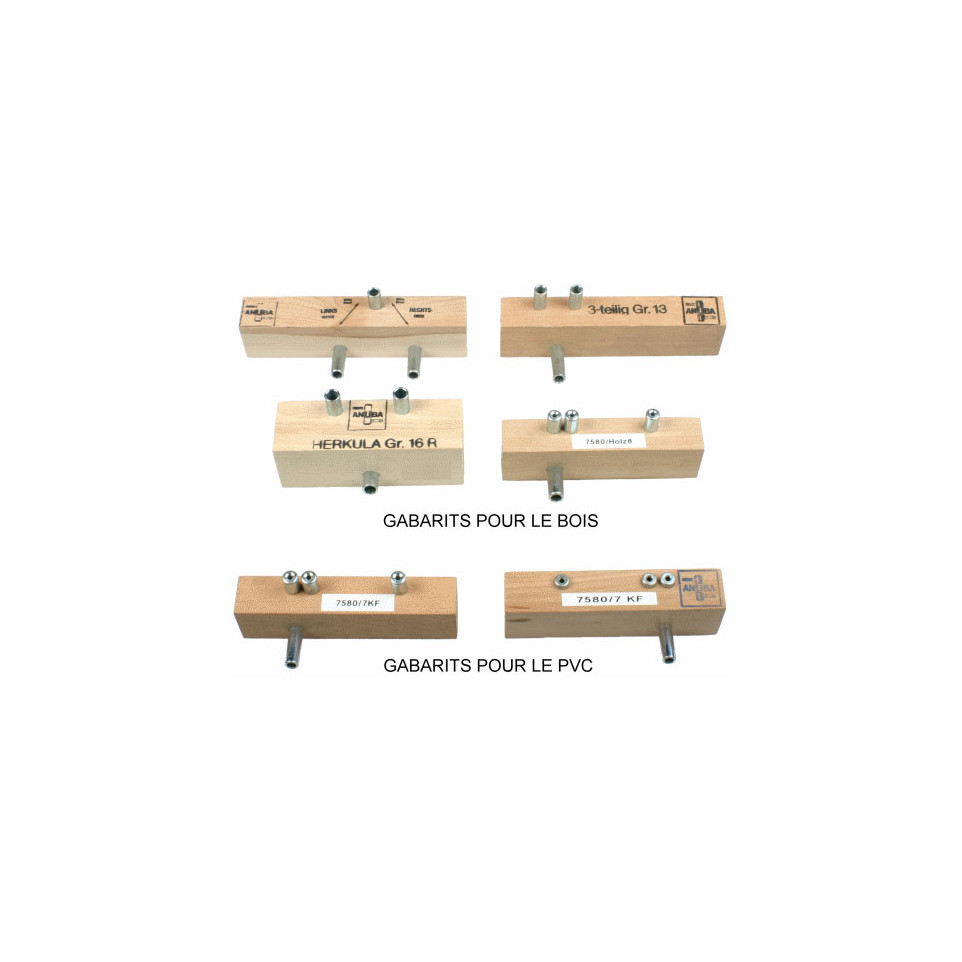

Hinge Pin Jig Block for 3-Rod "HERKULA" Ø16mm Anuba Hinge Pin Installation / pc

Hinge Pin Jig Block for 3-Rod...

Estimated delivery date :  Friday 24 July
€25.74 HT
In stock (5)

Ref : FGT-124239

Quantity

Add to your shopping List

You must be logged


Description

Usage

The "HERKULA" template block for 3-pin Ø16mm Anuba hinges is designed to guide precise positioning and drilling for installing Anuba hinge pins on doors and frames in woodworking or joinery applications.

Advantages

  • Enables accurate alignment of 3-pin Anuba hinges with consistent results
  • Reversible design allows use on both left- and right-handed doors
  • Clearly marked with Ø16mm “HERKULA Gr.” identification for easy selection
  • Simplifies installation process, reducing errors and rework time
  • Compatible with standard clamping tools; can be used repeatedly by professionals or craftsmen

Specifications

  • Wooden block template specifically designed for "HERKULA" series, diameter Ø16mm, suitable for three-pin Anuba fittings
  • The robust wood construction ensures durability during repeated use; marking is engraved directly onto the block’s side for clear identification; reversible form factor supports universal application in frame/leaf arrangements[3][8]
  • The block provides a stable guide to drill corresponding holes at correct depth and spacing, matching the requirements of Ø16mm three-tige (pin) hinges[3]
  • Differentiated from other templates by its fit-for-purpose design: dedicated to HERKULA-type, facilitates highly reproducible placement of hinge fittings—essential when assembling multiple units or production work[3][8]

How it works

This template is placed against the door frame and sash—aligned according to printed instructions—to guide drilling precision holes. A clamp secures it during drilling. After preparation, users install hinge pins into pre-aligned bores using compatible tools.

See more

Product Details

Brand Anuba
Model bloc gabarit pour fiches 3 tiges ''HERKULA'' Ø 16 mm
Description 3.
FGT-124239
New
