Usage
The CMTJIG1 auto-centering mortising jig is designed for precise and repeatable drilling of hinge, plug, or fitting holes in woodworking projects. It is suitable for workshop and site tasks requiring accurate alignment.
Advantages
- Ensures automatic centering of the mortise or bore for professional-quality installations

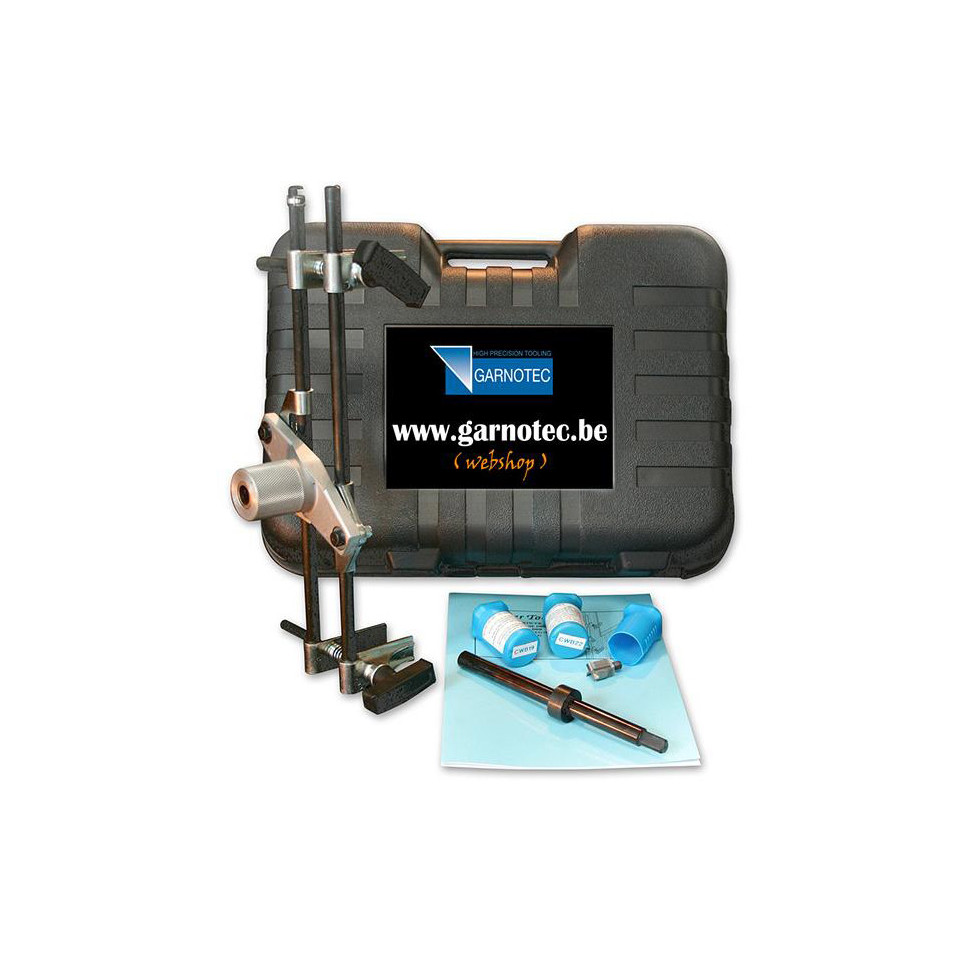

- Delivered in a robust plastic case for secure transport and organized storage

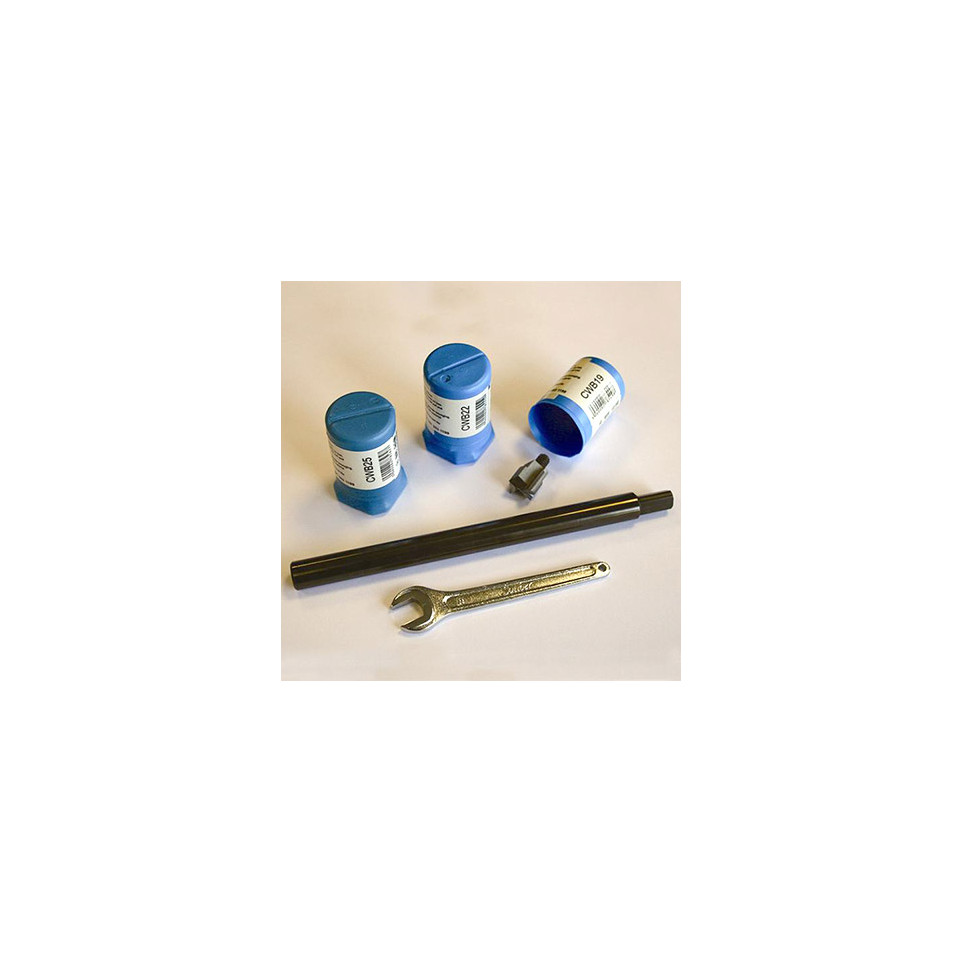

- Includes three carbide-tipped cutters with diameters of 16 mm, 22 mm, and 24 mm to cover common applications
- Simplifies setup by eliminating manual marking or measuring before drilling
- The kit’s versatility may be limited to compatible hinge sizes defined by the supplied cutter diameters
Specifications
- Main body manufactured from durable aluminum alloy with precision-machined surfaces; plastic carry case included for protection and convenience
- Cutter bits feature industrial-grade carbide tips to ensure long service life under regular use conditions; suitable for wood-based materials commonly used in cabinetry and joinery workspaces
- Milling cutter diameters: Ø16 mm, Ø22 mm, Ø24 mm; centering tolerance typically less than ±0.1 mm when properly clamped; compatible with standard mortaising machines equipped with appropriate shank size adapters
- Differentiates itself through its auto-centering mechanism which improves efficiency and minimizes operator error during repeated operations
How it works
The user mounts the CMTJIG1 onto the workpiece at the desired location. The self-centering mechanism positions the chosen cutter bit automatically along the intended centerline. Securely clamp into place before activating your mortaiseuse or drill press for clean, accurate cuts every time.
