Product

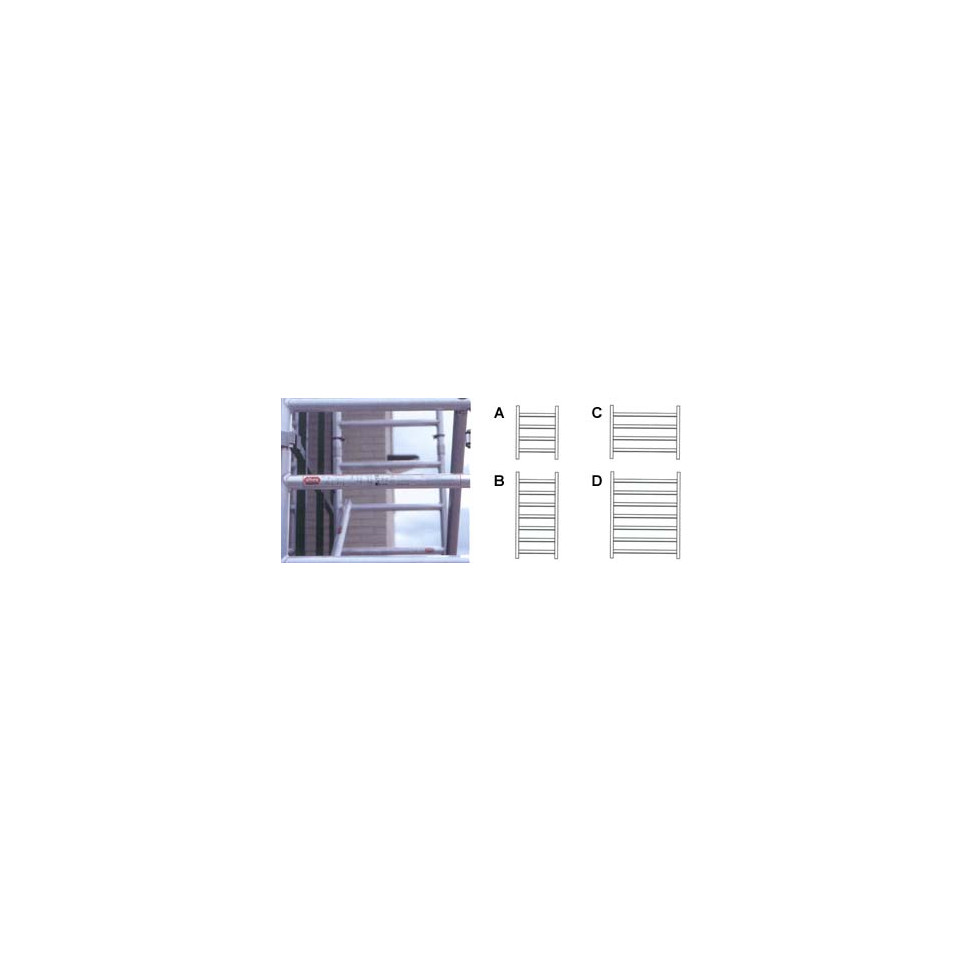

The Altrex scaffolding frame is a modular aluminum frame designed for professional and industrial use, supporting both wide and narrow folding scaffold towers. Available with 4 or 7 anti-slip rungs spaced at 28 cm, it enables flexible height and length configurations for various job sites.
Specifications
- Constructed from lightweight, durable aluminum with tube diameter of 51 mm and wall thickness of 2 mm
- Features anti-slip rungs for enhanced safety and capped tube ends to prevent debris intrusion
- Offers two widths and heights; telescopic system allows adjustment of the wide model to lengths of 1.85 m, 2.45 m, and 3.05 m
- Designed for compatibility with both wide and narrow folding scaffolds
- Meets stringent safety and quality standards
Usage
To use, attach the frame as a foundational component of your aluminum scaffolding setup. Select the desired width and rung configuration according to your workspace and adjust the telescopic mechanism for the appropriate scaffold length. The frame ensures stability, ease of assembly, and safety for elevated tasks.
FAQ
-
What widths and heights are available for the Altrex scaffolding frame?
- The frame comes in two widths and with options for either 4 or 7 rungs.
-
How are the rungs spaced and what safety features are included?
- Rungs are spaced at 28 cm intervals and include an anti-slip profile for safe climbing and standing.
-
How is the frame protected against site debris?
- Tube ends are fitted with caps to block dirt and debris from entering.
-
Can the frame be used for both wide and narrow scaffolding towers?
- Yes, it is designed for use as part of both wide and narrow folding scaffolds.
-
Is the length adjustable and how is this achieved?
- The wide model features a telescopic system, allowing selection of three different lengths: 1.85 m, 2.45 m, and 3.05 m.
