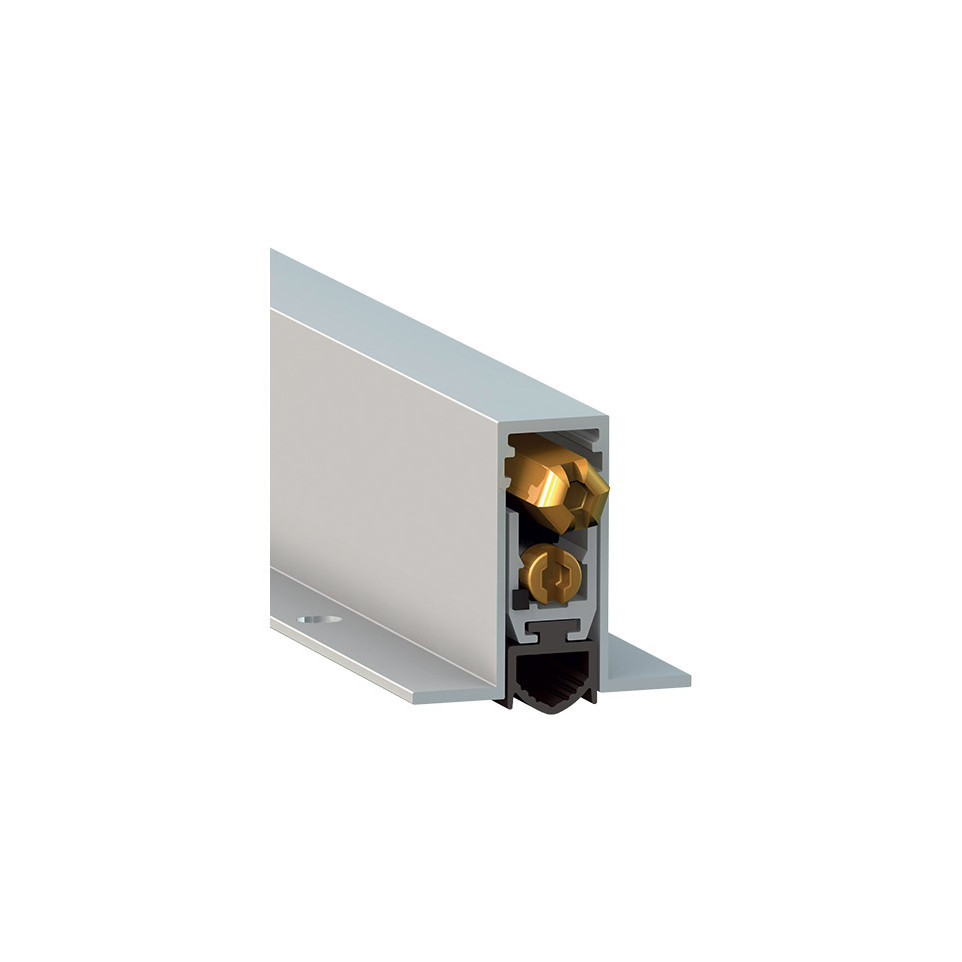

Comaglio 1812 Automatic Door Threshold 12x28.5x1130mm per piece

Product

The Comaglio 1812 automatic baseboard is a drop-down seal designed for armored or wooden doors, delivering consistent pressure along its 1130 mm length to prevent drafts, noise, and dust intrusion.

Specifications

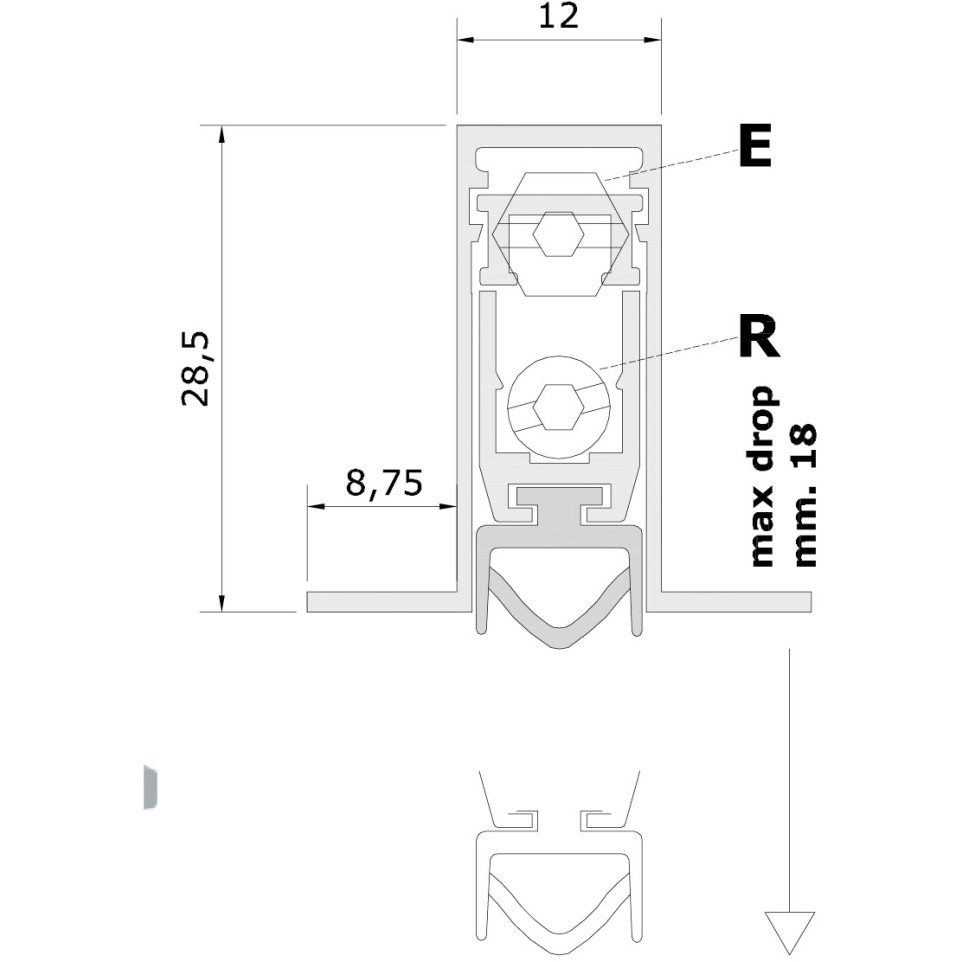

• Equipped with a tubular silicone seal; features a double adjustment system: screw E (drop motion) and screw R (inclination) for precise pressure control.
• Brass hexagonal push button and secondary brass adjustment screw.
• Can be shortened by up to 100 mm. Dimensions: 12x28.5x1130 mm per piece.
• Withstands up to 200,000 usage cycles, providing robust durability.
• Suitable for installation without disassembling the inner profile.

Usage

Install the baseboard onto the underside of the door using screws, without the need to remove the interior profile. Adjust using the two dedicated brass screws to achieve a tight, uniform seal. When the door closes, the automatic seal drops to block drafts, sound, and dust.

FAQ

1. Is the Comaglio 1812 suitable for both armored and wooden doors?
   Yes, it is engineered for use with both armored and wooden doors.

2. How is the pressure adjusted along the length of the seal?
   Double adjustment is possible through two screws: one controls the descent, and the other alters the inclination.

3. Does installation require removing the interior door profile?
   No, installation and fastening can be completed without dismantling the internal profile.

4. What is the maximum length that can be cut from the product?
   The baseboard can be shortened by up to 100 mm to fit custom door widths.

5. How durable is the Comaglio 1812 baseboard?
   It is tested for 200,000 usage cycles to ensure long-lasting performance.
