Comaglio 420 Mini Automatic Drop Down Seal 12x17.7x430mm per piece

Comaglio 420 Mini Automatic Drop Down Seal 12x17.7x430mm per piece
Comaglio 420 Mini Automatic Drop Down Seal 12x17.7x430mm per piece
Comaglio 420 Mini Automatic Drop Down...
Comaglio 420 Mini Automatic Drop Down...

Estimated delivery date :  Friday 24 July
€20.54 HT
In stock (3)

Ref : FGT-195722

Variantes

Comaglio 420 Mini Automatic Door Bottom Seal 12x17.7x830mm per piece Comaglio 420 Mini Automatic Door Bottom Seal 12x17.7x830mm per piece Comaglio 420 Mini Automatic Door Threshold 12x17.7x1330mm per piece Comaglio 420 Mini Automatic Door Threshold 12x17.7x1330mm per piece Comaglio 420 Mini Automatic Drop Down Door Seal 12x17.7x630mm per piece Comaglio 420 Mini Automatic Drop Down Door Seal 12x17.7x630mm per piece Comaglio 420 Mini Automatic Drop Down Seal 12x17.7x1030mm per piece Comaglio 420 Mini Automatic Drop Down Seal 12x17.7x1030mm per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

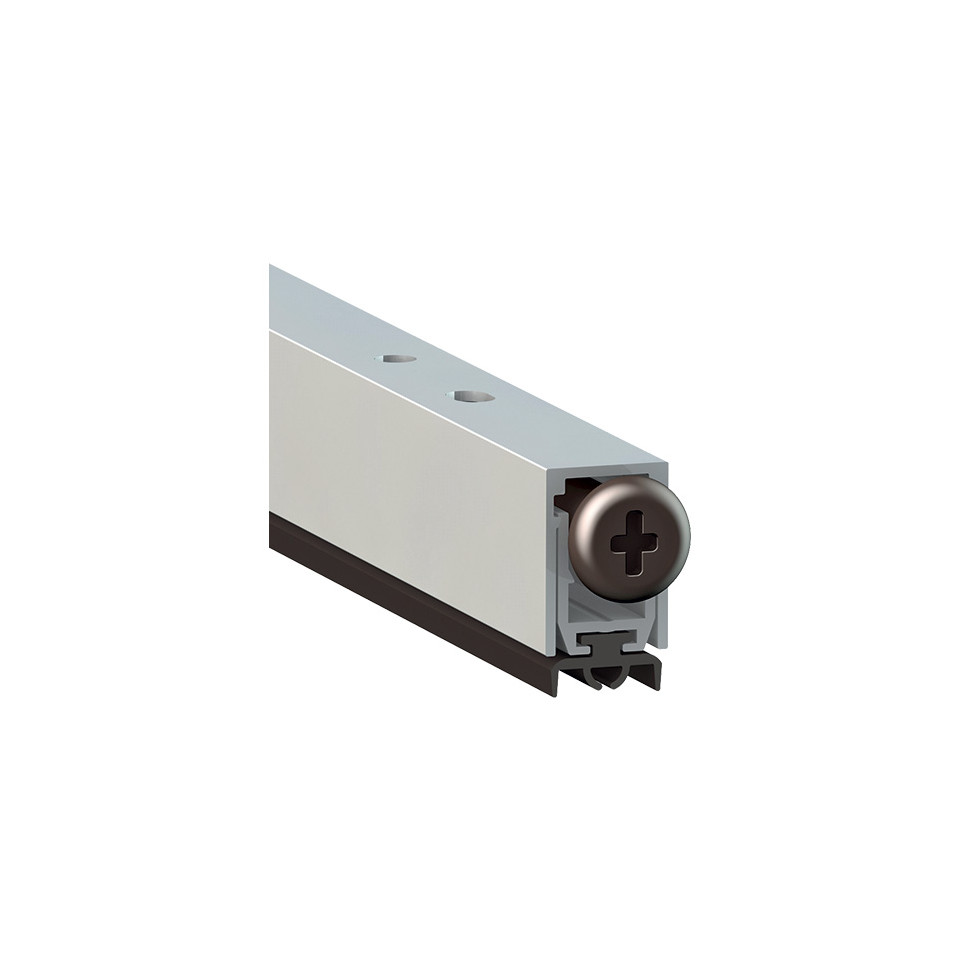

The Comaglio 420 mini automatic baseboard is designed for doors in aluminum or wood, enabling effective sealing and noise insulation with simple installation and adjustment for perfect contact with the floor.

Specifications

  • Features an extruded EPDM tubular seal, offering flexibility and durability.
  • Equipped with a nylon adjustment screw for precise positioning.
  • Allows up to 130 mm shortening for tailored fit.
  • Supports up to 200,000 operating cycles for long-lasting performance.
  • Measures 12 x 17.7 x 430 mm and mounts after removal of the inner profile.

Usage

Install the baseboard at the bottom of your door after dismantling the inner profile. Adjust the nylon screw to activate an immediate drop on the hinge side and a gradual drop along the length, adapting perfectly to floor irregularities for optimized sealing.

FAQ

  1. What type of doors is this baseboard compatible with?
    It is suitable for both aluminum and wooden doors.

  2. How is the baseboard installed?
    Place and screw it in after removing the door’s inner profile; adjustment is made via the nylon screw.

  3. Can the length be modified to fit smaller doors?
    Yes, it can be shortened by up to 130 mm to fit various door widths.

  4. What is the lifecycle of this product?
    It is rated for up to 200,000 operational cycles.

  5. What material is the sealing joint made of?
    The joint uses extruded EPDM, known for its resilience and sealing properties.

mvm-dt-2025-07-07

See more

Product Details

Brand Comaglio
Length (in mm) 430
Stroke ( mm ) 13
Fire resistance (min) 30,00
Noise level (dBA) 42,00
Groove width (mm) 12,00
FGT-195722
