Usage

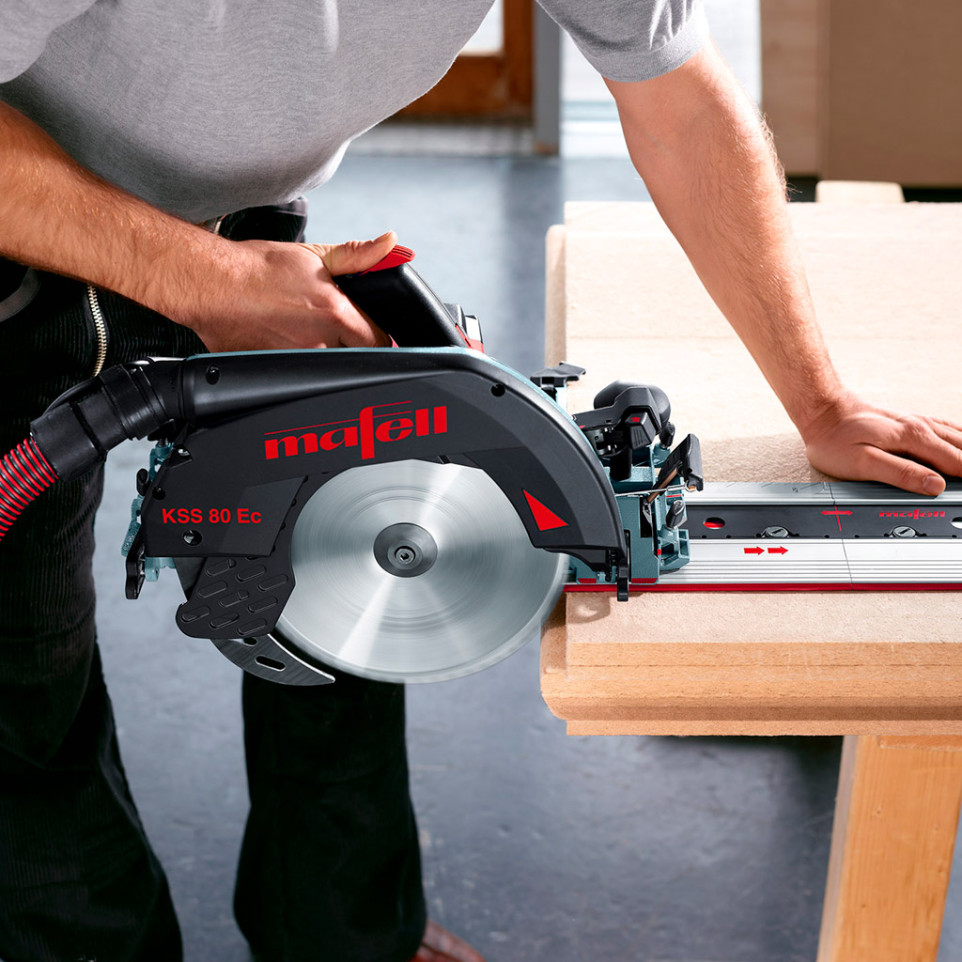

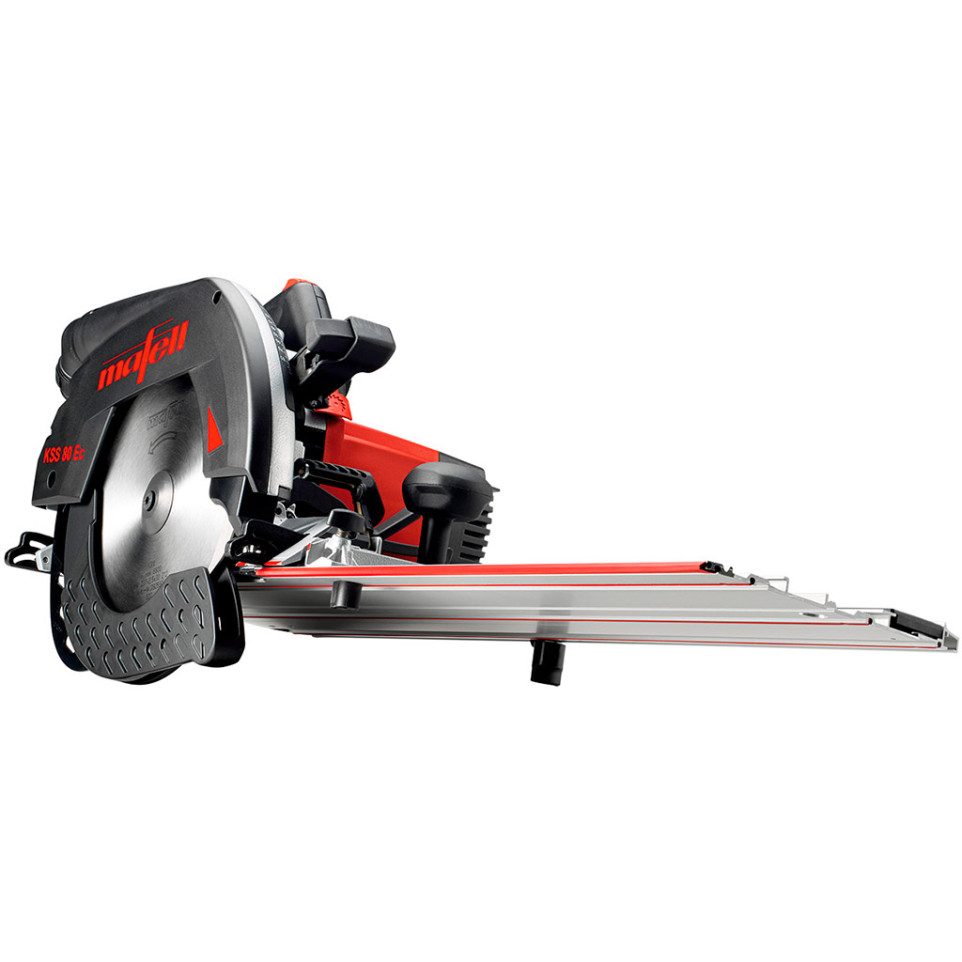

The Mafell KSS 80 Ec / 370 circular saw is designed for fast and precise cross-cutting and rip-cutting of solid wood, panels, fiberboard, doors, worktops, and insulating materials on professional job sites or in workshops.
Advantages
- Cuts up to 370 mm length at full depth using the integrated cross-cut rail for repetitive accuracy.
- Depth setting with a single action allows quick adjustment from 0 to 82 mm on rail (up to 88 mm off rail), improving efficiency.
- Pivots for miter and bevel cuts from -60° to +50°, supporting diverse woodworking applications.
- Can be used as both a fixed cross-cut system or detached as a versatile handheld circular saw compatible with Mafell’s Guide Rail F system.
- Total weight of only 8.3 kg (with guide rail) balances portability with stability; robust aluminum construction ensures durability.[4][5]
Specifications
- Saw blade diameter: Ø237 x 30 mm; carbide-tipped blade included for clean finishes.[4]
- Main housing in die-cast aluminum provides rigidity; ergonomic handle design aids user comfort during extended use.[4]
- Max cutting depth: up to ≈82 mm on rail at 0°, up to ≈55.5 mm at 45°; off-rail maximum depth: ≈88 mm.[4][5]
- Pivoting/tilt range: −60° to +50°, ensuring flexible angle cuts without additional accessories.[4][5]
Nominal input power: 2300 W.
Idle speed adjustable between approx. 2250–4400 rpm.
Cutting length per stroke (on track): max. 370 mm.
Extraction port diameter: Ø35 mm supports dust collection systems.
Weight (with cross-cut rail): approx. 8.3 kg.
How it works
The KSS 80 Ec / 370 operates by fixing the saw onto the supplied guided rail for repeatable straight or angled cuts—simply align the track against your workpiece edge, set cutting parameters, then push through smoothly while the anti-splinter edge maintains cut quality across diverse woods and sheet goods. The tool returns automatically after each cut via an integrated pull-back mechanism, increasing productivity and safety.[3][4][7]
