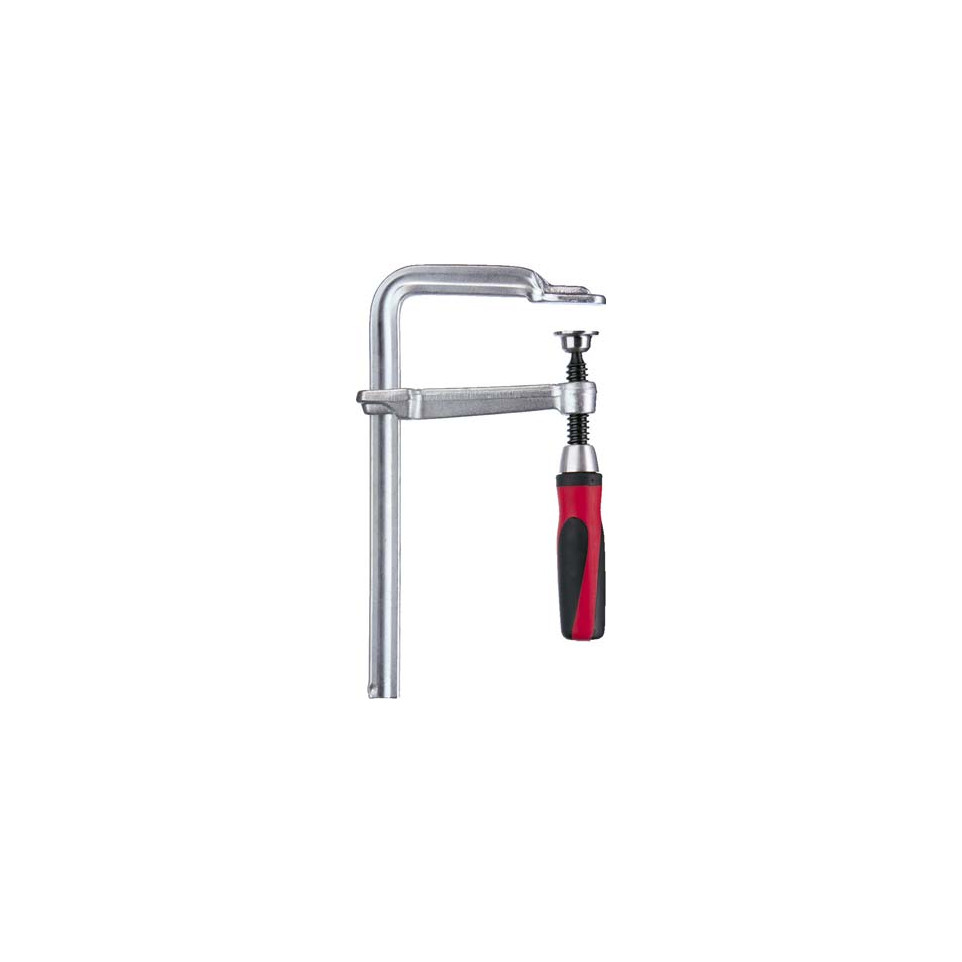

Bessey All-Steel Screw Clamp 250mm Opening per piece

Product

The Bessey all-steel clamp with 250mm opening is designed for secure and reliable clamping in woodworking, metalworking, and assembly contexts. Its robust construction accommodates demanding projects that require strong holding power.

Specifications

• Made entirely from treated steel with a monobloc rail and forged sliding arm for enhanced durability
• Features a dual-material handle for improved ergonomic grip and user comfort
• Removable and tool-free interchangeable pivoting jaw, enabling fast adaptation to various surfaces
• Delivers up to 6000 N of clamping force
• Throat depth: 120 mm
• Bar section dimensions: 22 x 10.5 mm

Usage

Position the movable jaw against the workpiece and tighten using the bi-material handle to generate up to 6000 N of force. The pivoting jaw adapts to irregular shapes, while the treated steel construction ensures stability throughout demanding applications.

FAQ

1. What is the maximum opening capacity of this clamp?
   The maximum opening is 250 mm, allowing versatility for medium to large projects.

2. Can I replace the pivoting jaw without tools?
   Yes, the pivoting jaw is removable and can be exchanged without any tools or effort.

3. Is this clamp suitable for heavy-duty use?
   The clamp’s treated all-steel design and 6000 N clamping force make it well-suited for demanding tasks in workshops or on-site.

4. What is the throat depth?
   This model features a 120 mm throat depth, providing substantial reach for deeper assemblies.

5. Is the handle comfortable for prolonged use?
   The bi-material handle is ergonomically designed to reduce operator fatigue and optimize grip.
