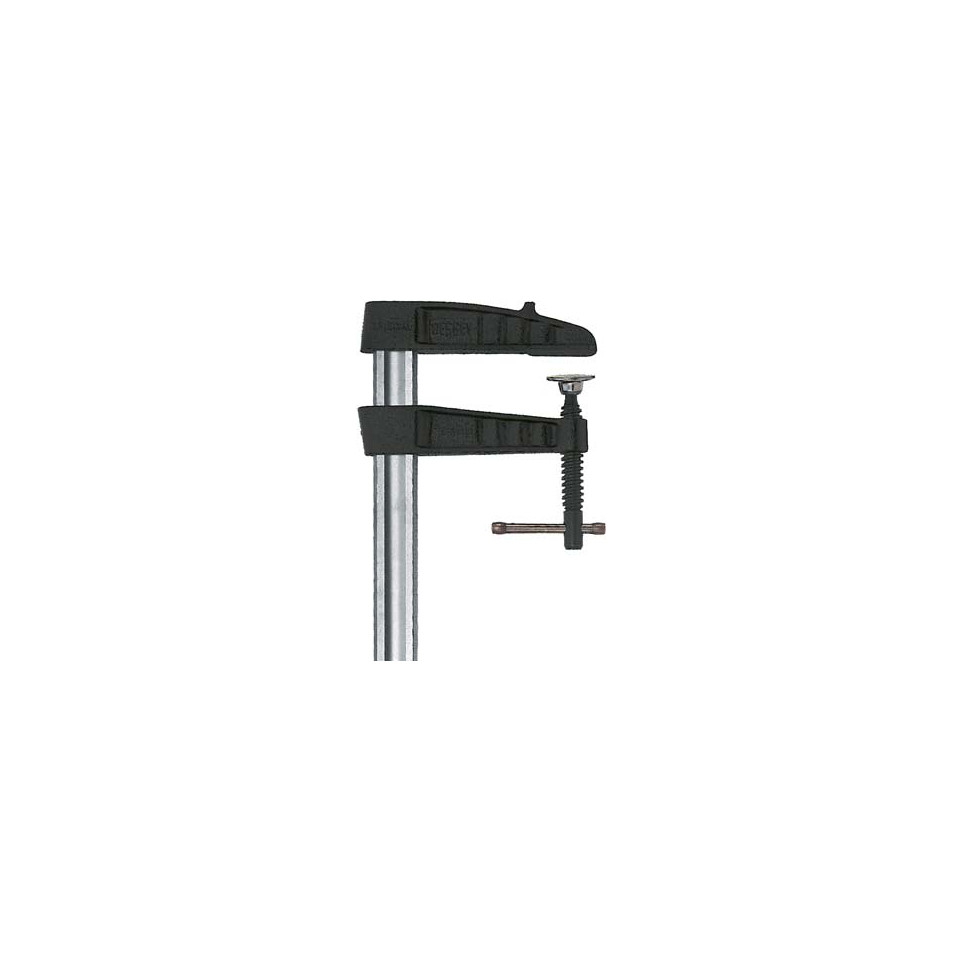

The Bessey Serre-joint à poignée à garrot UK100-12 is a robust clamp designed to handle heavy-duty clamping tasks up to 1000 mm. Ideal for woodworking, metalwork, and professional assembly, it combines extended reach with secure holding strength.
Specifications
- Reinforced high-strength construction for demanding applications
- Clamping force up to 7000 N
- Ergonomic ratchet handle with rounded ends for comfortable and efficient tightening
- Cold-drawn, zinc-coated profiled rail with notched surface, highly resistant to torsion and bending
- Clamp opening: 1000 mm
- Throat depth: 120 mm
- Rail section: 35 × 11 mm
- Integrated sliding jaw lock for secure positioning
- Durable and engineered for consistent performance
Usage
Position the materials between the clamp jaws and adjust the sliding jaw. Tighten using the ergonomic ratchet handle to achieve precise and powerful clamping. The notched, reinforced rail prevents unwanted movement, ensuring reliable holding during gluing, fixing, or assembly work.
FAQ
-
What is the maximum clamping force?
The clamp provides up to 7000 N of clamping force.
-
What is the maximum opening capacity?
The clamp can open up to 1000 mm, accommodating large workpieces.
-
What are the rail section dimensions?
The rail measures 35 × 11 mm, designed for superior strength and stability.
-
Is it suitable for heavy-duty applications?
Yes, its reinforced design and high clamping force make it ideal for intensive professional use.
-
What ergonomic features does the handle offer?
The ratchet handle is rounded at the ends, providing enhanced comfort and torque during operation.
