Product

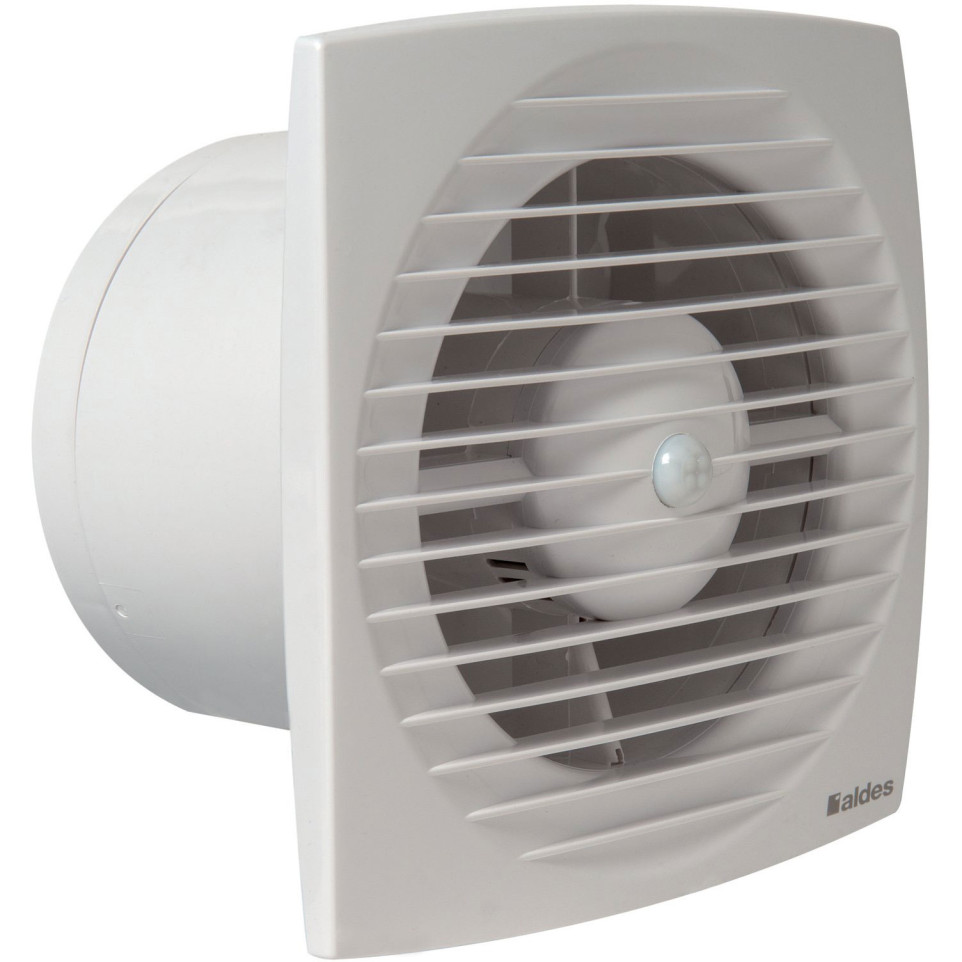

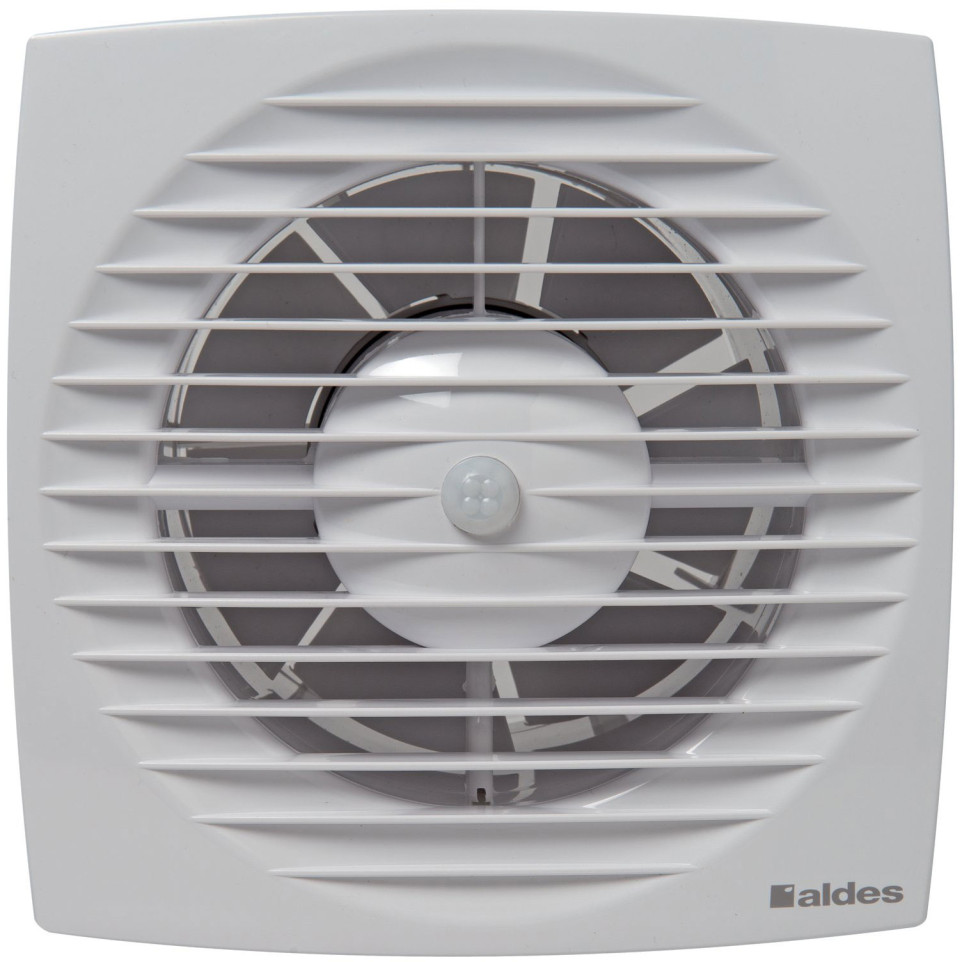

The Design 100H humidity+timer extractor is a controlled mechanical ventilation point extractor, ideal for intermittent air extraction in small bathrooms, WCs, or laundry rooms. It provides automatic, demand-driven ventilation based on humidity and user settings.
Specifications
- Features a compact Ø100 mm design, suitable for rooms up to 7 m².
- Made from robust materials for reliable operation in heated indoor spaces and rated for IP44 ingress protection.
- Incorporates a humidity sensor (adjustable from 60% to 90%), electronic timer (delay from 2 to 30 minutes), and manual override capability.
- Integrated backdraft valve helps prevent outside air entering when off.
- Suitable for wall or ceiling mounting; connects to 220-240V/50Hz AC power.
Usage
The extractor automatically activates at higher humidity levels, then continues operating for a set duration before reverting to low-speed ventilation. Users can adjust humidity sensitivity and timer delay using the included plastic screwdriver. Manual control is available via an external switch.
FAQ
-
What rooms is the Design 100H extractor suitable for?
- It is designed for bathrooms, WCs, and laundry rooms up to 7 m².
-
How does the humidity sensor work?
- The extractor activates at a user-set humidity threshold (60% to 90%) and switches off automatically when humidity drops below the set value.
-
Can I install this extractor on the ceiling?
- Yes, it can be installed on either the wall or ceiling with connection to suitable ducts.
-
How is the timer adjusted?
- Use the included plastic screwdriver to set the operating delay time between 2 and 30 minutes.
-
Does the extractor prevent outside air from entering when switched off?
- Yes, the integrated backdraft valve blocks reverse airflow for comfort and efficiency.
