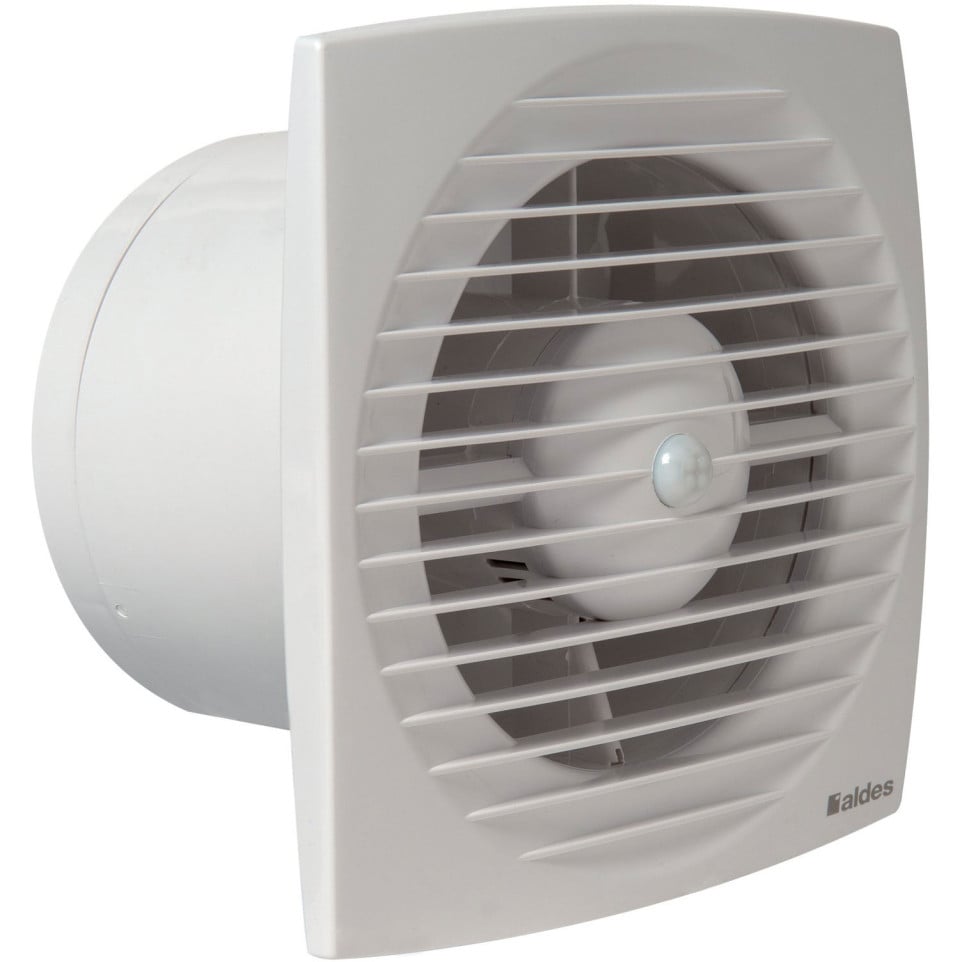

The DESIGN 100P is an intermittent spot extractor with presence detection and timer functionality, designed for forced room ventilation in residential and commercial settings. This wall or ceiling-mounted unit features a discrete aesthetic with silent operation and low energy consumption.
Specifications
- ABS body and façade grille construction for durability
- IPX4 protection rating with Class II electrical insulation
- Motion sensor with detection range of 1 to 4 meters within a 100° horizontal angle
- 230V 50Hz single-phase power supply with thermal fuse protection
- Maximum airflow of 70 m³/h with 5.6W power consumption
- Sound pressure level of 26 dB(A) at 3 meters
- 100mm diameter connection for duct mounting
- Maximum exhaust air temperature of 40°C
- Includes removable backdraft damper
- CE electrical safety certified
Usage
The extractor activates automatically when motion is detected within its sensor range, operating intermittently for spot ventilation. Once movement ceases, the integrated timer maintains operation for a preset duration between 2 and 30 minutes before shutting down. The unit mounts directly to walls or ceilings using four supplied screws and connects to standard 100mm ducting. Manual control via an external switch provides additional operational flexibility. Proper fresh air intake through air terminals or door undercuts ensures effective room ventilation.
FAQ
-
What is the detection range of the presence sensor? - The motion sensor detects movement within a radius of 1 to 4 meters at a 100° horizontal angle.
-
Can this extractor be used in humid environments? - Yes, the IPX4 protection rating allows installation in areas with water splashing, making it suitable for bathrooms and kitchens.
-
How long does the timer maintain operation after detection stops? - The adjustable timer can be set between 2 and 30 minutes of continued operation after motion ceases.
-
What is the noise level during operation? - The unit operates at 26 dB(A) measured at 3 meters, ensuring quiet performance.
-
Is the extractor suitable for both extraction and air supply? - Yes, the unit can function for both exhaust and air supply applications in forced intermittent ventilation systems.
