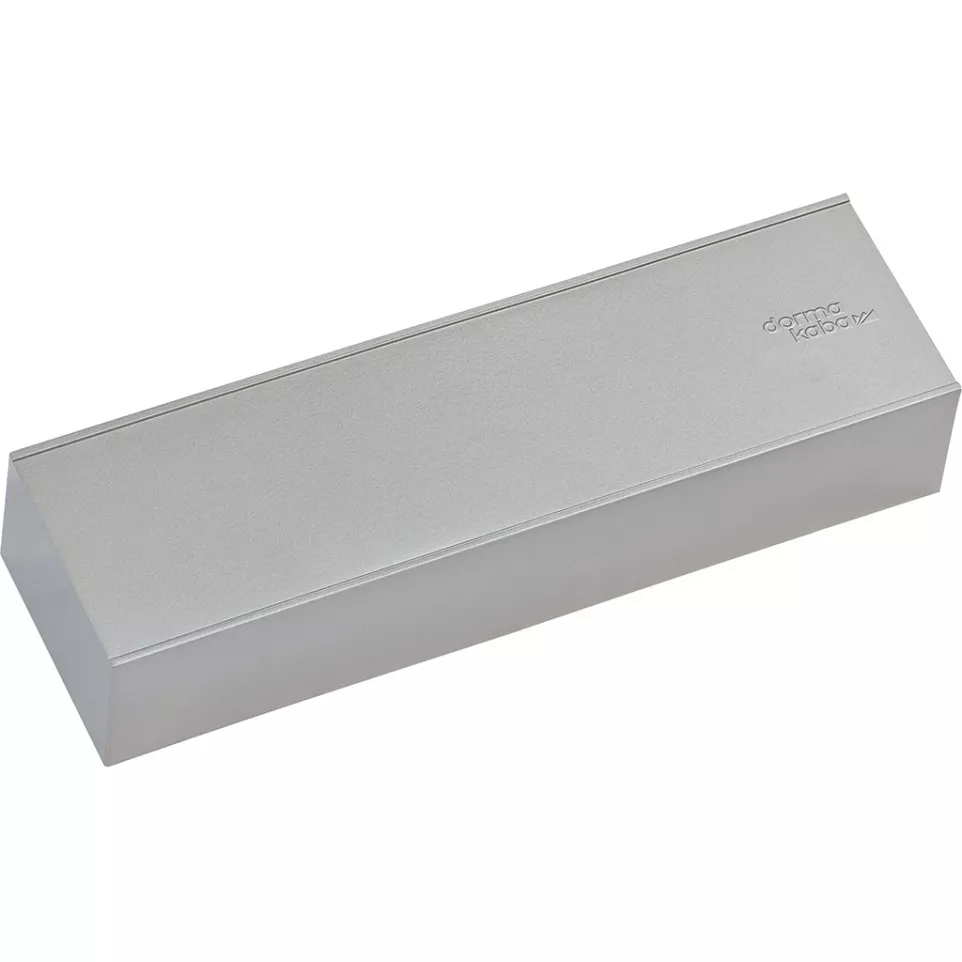

Dorma TS 72 Door Closer Without Arm EN 2-4 Silver per piece

Dorma TS 72 Door Closer Without Arm EN 2-4 Silver per piece
Dorma TS 72 Door Closer Without Arm EN 2-4 Silver per piece
Dorma TS 72 Door Closer Without Arm...
Dorma TS 72 Door Closer Without Arm...

Estimated delivery date :  Thursday 18 June
€100.61 TTC
In stock

Ref : FGT-135006

Quantity

Add to your shopping List

You must be logged


Related Products

Description

Usage

The Dorma TS 72 door closer is designed for controlled and automatic closing of standard interior doors in commercial and residential settings, suitable for doors up to 1100 mm wide.

Advantages

  • Continuously adjustable closing force (EN 2–4), adaptable to different door weights and widths
  • User-friendly installation without a mounting plate, saving time during setup
  • Adjustable closing speed and latching action via independent regulating valves for flexible operation
  • Non-handed design allows use on both left- or right-opening doors
  • No backcheck or delayed action; does not include arm — must be ordered separately if required

Specifications

  • Compact rack-and-pinion mechanism with robust metal construction and silver finish (argent)
  • Tested to EN 1154 standard; manufactured under ISO 9001-certified quality management systems

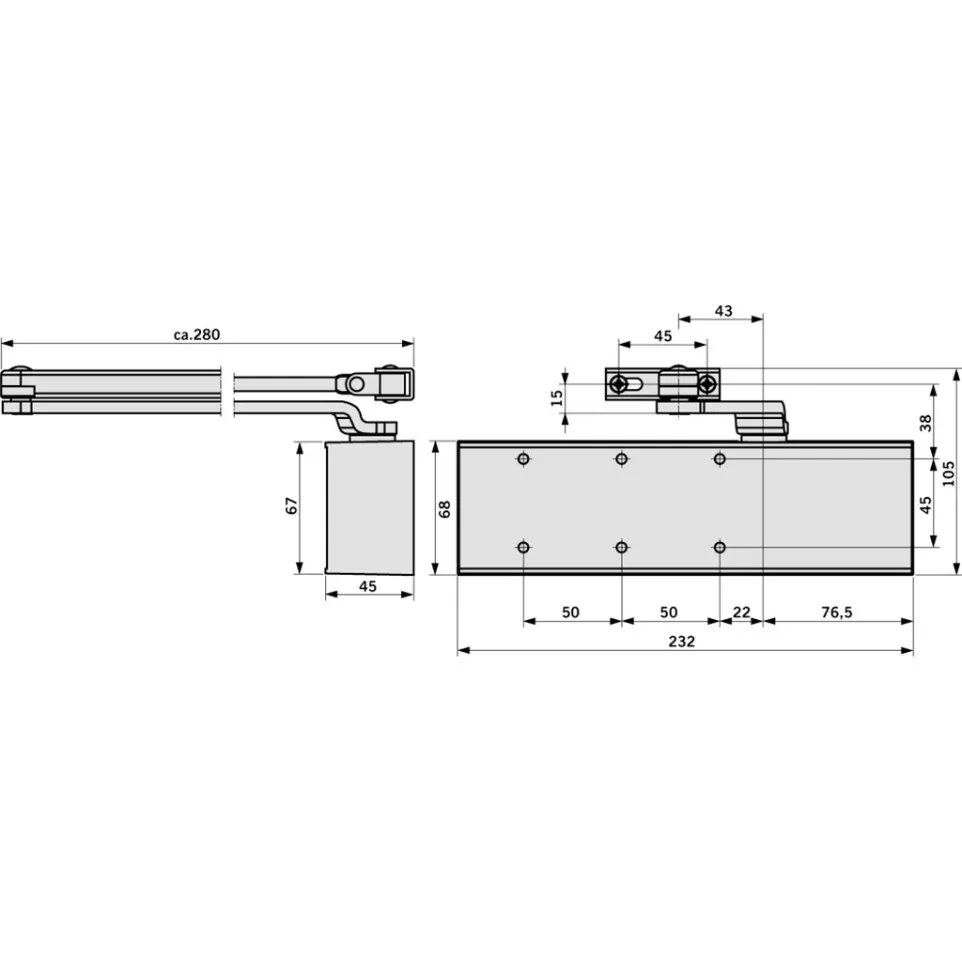

  • Covers door widths up to ≤1100 mm; adjustable force from EN size 2 (≤850 mm) through EN size 4 (≤1100 mm); unit weight approx. 1.2 kg; dimensions: length 232 mm, depth 45 mm, height 68 mm;
  • Latching action and two ranges of closing speed adjustment—180°–15° sweep, then precise control from the last 15°–0° before shutting. Hold-open functionality available as an optional accessory but not included in this unit.

How it works

The Dorma TS 72 mounts directly onto the door surface using its simple fixing system. After installation, users can adjust the spring tension and both stages of closing speed through accessible screws to ensure reliable self-closing performance tailored to each specific doorway.

See more

Product Details

Brand Dorma
Finishing argent
Product Dimensions 68 x 232 x 45 mm
With last stroke oui
Firewall oui
Strength (selon EN1154) EN 2-4
Leaf width (mm) 1100
Max. weight of leaf (kg) 80 Kg
For interior door oui
Operation technology à pignon et crémaillère
For door ext. opening outwards. non
Opening brake non
Max. opening angle on hinges 180°
Late Close non
Max. opposite opening angle hinges 180°
Type of opening function simple action
Adjustable closing speed oui
FGT-135006
