Dorma TS 98 XEA Slide Channel Arm White 9016 per piece
€52.19
In stock
Usage
The Dorma TS 98 XEA EN 1-6 white door closer is designed to automatically and reliably close interior or exterior swing doors in commercial, public, or residential buildings where controlled closing is essential.
Advantages
- Wide adjustable closing force from EN 1 to EN 6 for compatibility with a variety of door sizes and weights
- Smooth cam-action technology minimizes opening resistance for greater user comfort
- Surface-mounted design enables quick installation on most standard doors
- Offers reliable performance even under frequent use thanks to robust construction
- Lacks an integrated arm (arm sold separately), offering flexibility in choosing the appropriate arm type for the application
Specifications

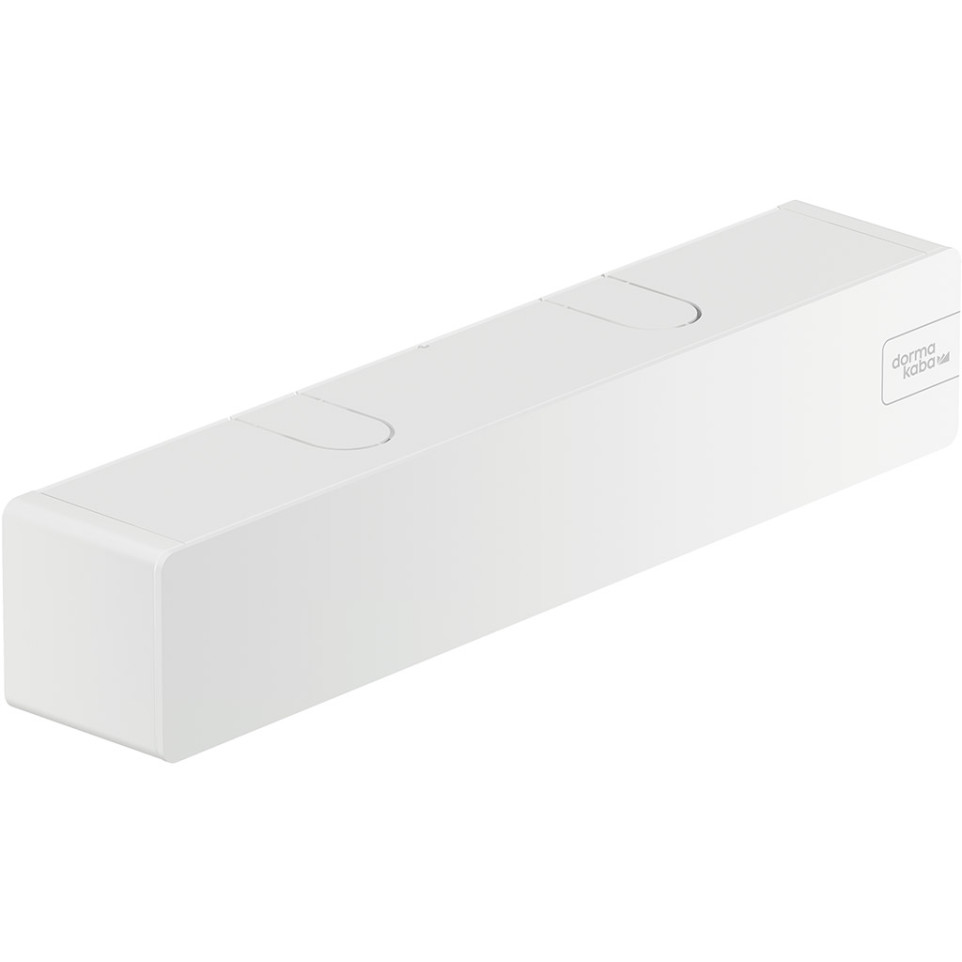

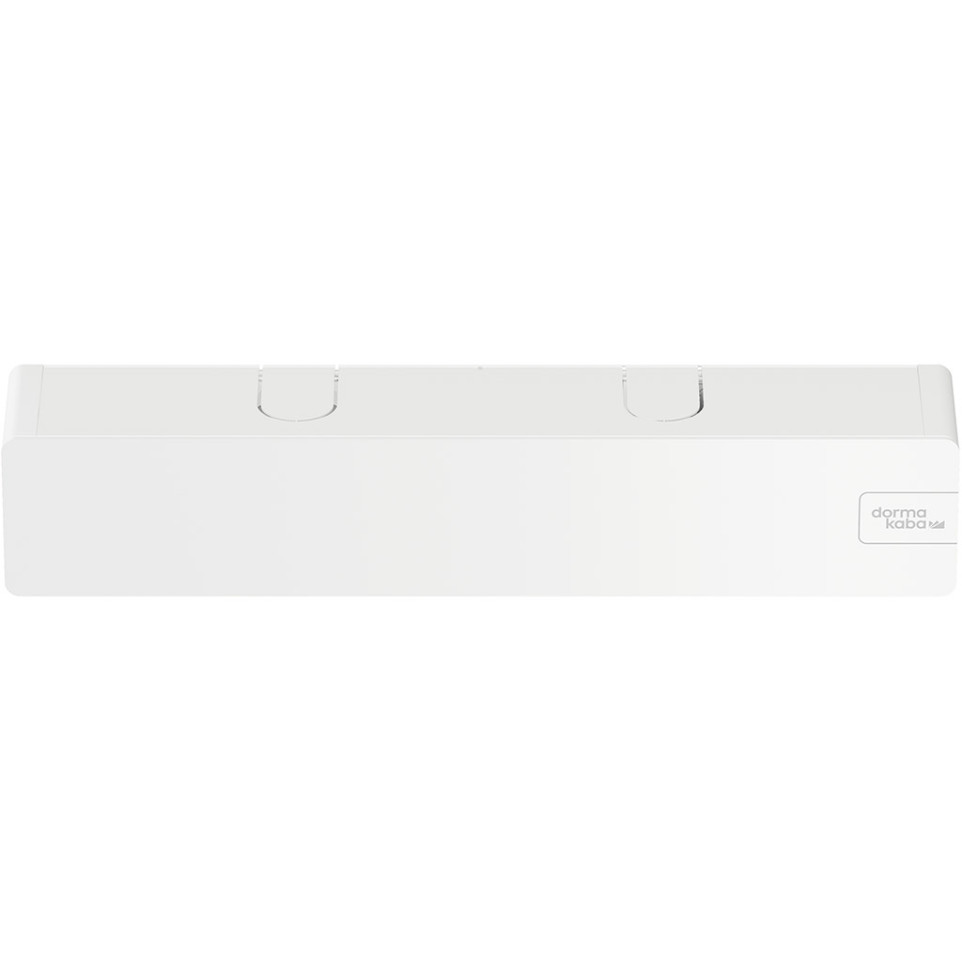

- Sleek modern casing finished in RAL9016 traffic white; surface-mounted aluminum body; utilizes advanced cam-action mechanism for optimized efficiency
- Compliant with EN1154 standards and suitable for fire/smoke protection doors (consult detailed certification as required)
- Covers door widths up to approximately 1400 mm and supports leaf weights up to about 120 kg, with fully adjustable power sizes ranging from EN1–EN6[1][4]
- Tunable closing speed, latching action, backcheck, delayed action functions; non-handed design allows installation on left- or right-opening doors[1][4]

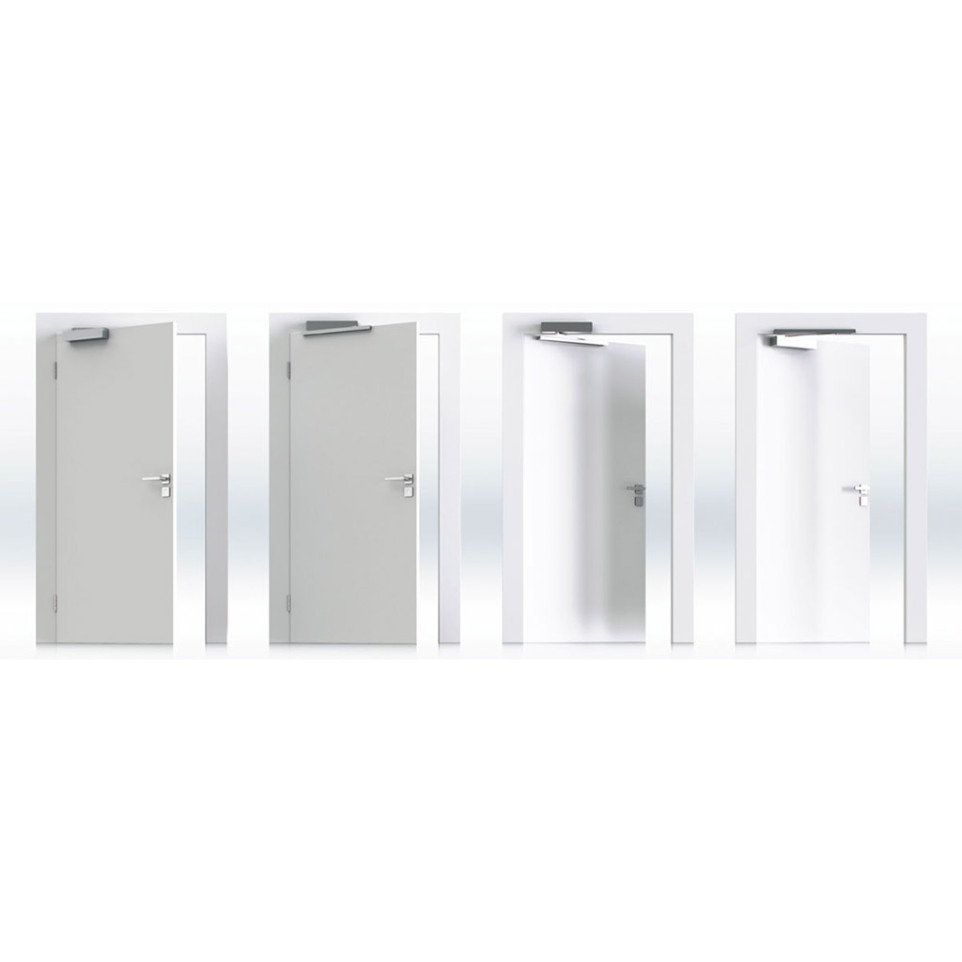

How it works
This closer mounts at the top of a swing door. When the door opens manually, its internal spring mechanism stores energy; upon release, hydraulic fluid controls return speed so the door closes gently and securely without slamming.
