GEZE sliding arm for TS 3000-5000 door closer white per piece
€32.51
In stock
Product

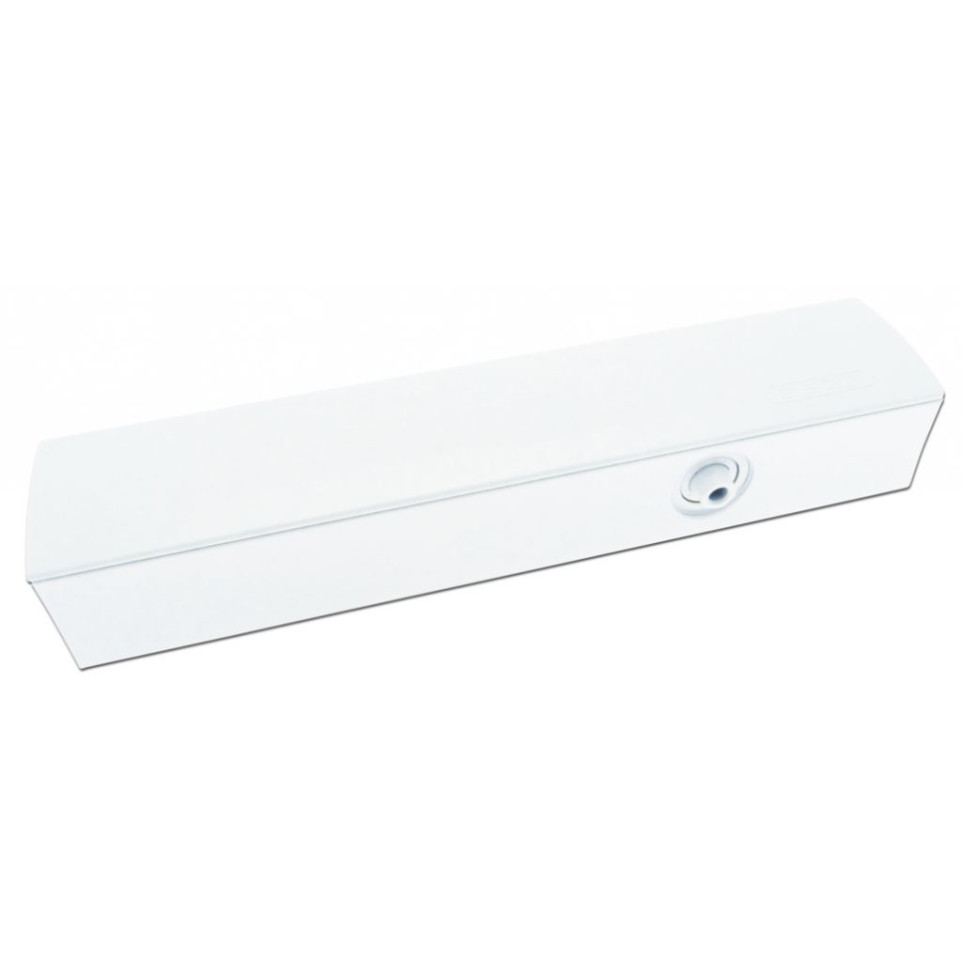

The Geze TS 5000 L is an overhead door closer designed for single-leaf doors, installed on the side opposite the hinges. It is ideal for medium to large doors in commercial or public buildings, supporting leaf widths up to 1400 mm.
Specifications
- Durable cast aluminium body, elliptical gear and rack mechanism, white finish
- Adjustable closing force from EN 2 to EN 6, certified to EN 1154:1996 + A1:2002
- Concealed fixing and adjustment screws behind a gently curved front plate
- Visual indicator for closing force, adjustable closing speed, hydraulic latching action, integrated back check function
- Suitable for fire and smoke protection doors; supports both right and left swing directions without conversion
Usage
Mount the closer directly on the door leaf, on the side opposite the hinges, using a sliding arm (not included). Adjust the closing force and speed via front-access screws. The device slows door movement when forcefully opened and ensures reliable, smooth closing, especially important for fire-rated and public-access doors.
FAQ
-
What door sizes does the TS 5000 L support?
- Supports single-leaf doors up to 1400 mm in width.
-
Is it suitable for fire or smoke protection doors?
- Yes, it is certified for use on fire and smoke protection doors.
-
Can the closing speed and force be adjusted?
- Both the closing speed and closing force are fully adjustable from the front, with a visible indicator for precise settings.
-
Does it work on both left and right opening doors?
- Yes, it can be used on both right- and left-hand doors without conversion.
-
Is the arm included with the product?
- No, the sliding arm must be ordered separately.
