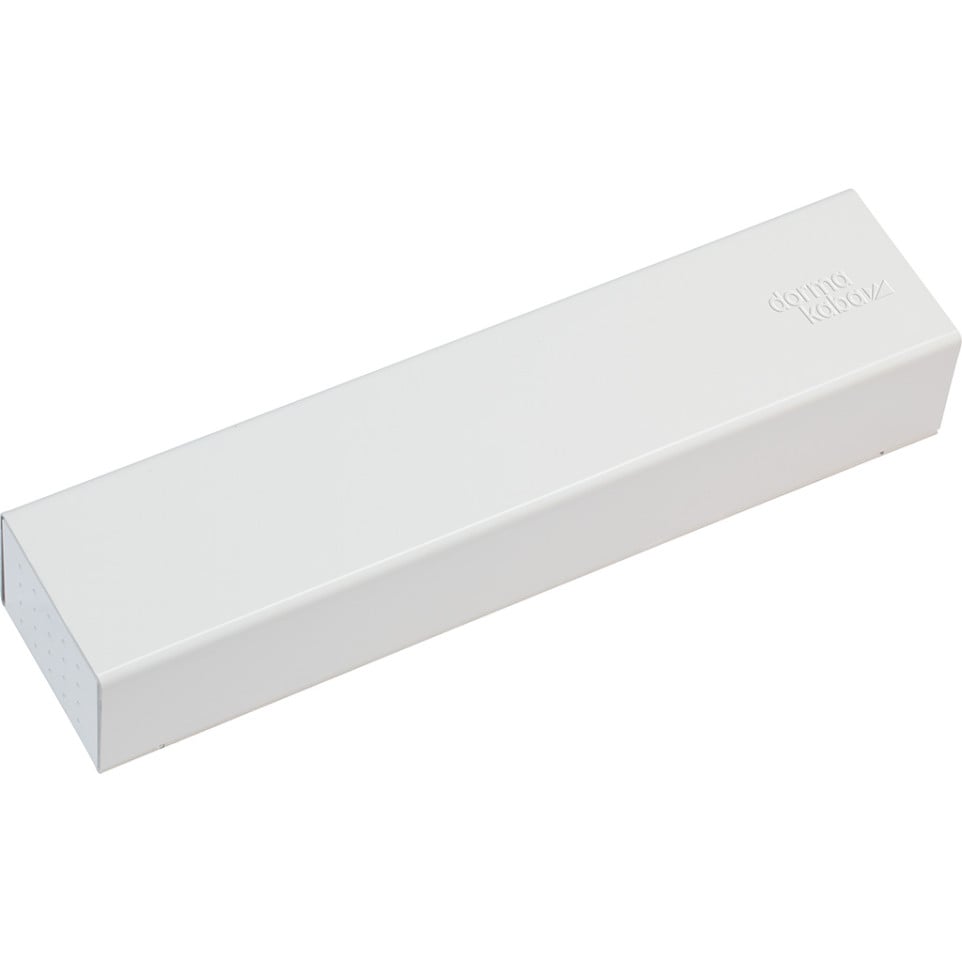

Dorma TS 92 B Contur Door Closer EN 2-4 without Arm White / pc

Usage

The Dorma TS 92 B Contur EN 2-4 door closer is designed for controlled closing of interior doors in public, commercial, or private buildings. It is suitable for standard and barrier-free access requirements.

Advantages

• Cam action technology allows exceptionally smooth opening with minimal resistance.
• Adjustable closing force (EN 2-4) accommodates a range of door sizes and weights.
• Slim, modern Contur design blends discreetly with contemporary interiors.
• Reliable latching action ensures secure door closure at every use.
• No arm included, permitting customized arm selection based on installation needs.

Specifications

• The body features robust construction and a white finish; utilizes cam action mechanism for efficient force management.
• Tested to meet EN1154 standards for performance and durability; non-handed design fits left or right opening doors.
• Power size adjustable from EN 2–4: suitable for doors from approximately 850 mm to 1100 mm wide, supporting weights between roughly 40 kg to 80 kg. Maximum opening angle typically up to 120° depending on installation conditions.


• Features independent adjustment valves for closing speed and latching speed control. Compatible with various mounting options (slide channel sold separately).

How it works

The Dorma TS 92 B Contur controls the motion of a hinged door via an internal cam mechanism that dampens movement as the door closes. Adjustments allow fine-tuning of both regular swing speed and final latching speed according to user preference or site requirements.
