GEZE Link Arm for TS 2000-4000 Brown per piece
€13.50
In stock
Usage
The Geze TS 2000 NV door closer enables controlled and automatic closing of single-action doors in public, commercial, or private buildings. Suitable for fire and smoke protection doors up to 1100 mm leaf width.
Advantages
- Variable closing force (EN 2–4) adjustable to match door size and requirements
- Compatible with right and left-hand doors without the need for conversion
- Adjustable hydraulic latching action ensures reliable final closure
- Precise front-facing adjustment of closing speed for tailored performance
- Suitable for fire- and smoke-rated applications when installed with a mounting plate; parallel arm installation required on the opposite hinge side may be less straightforward than standard mounting
Specifications
- Surface-mounted design in a compact one-size body; finished in brown (without arm)

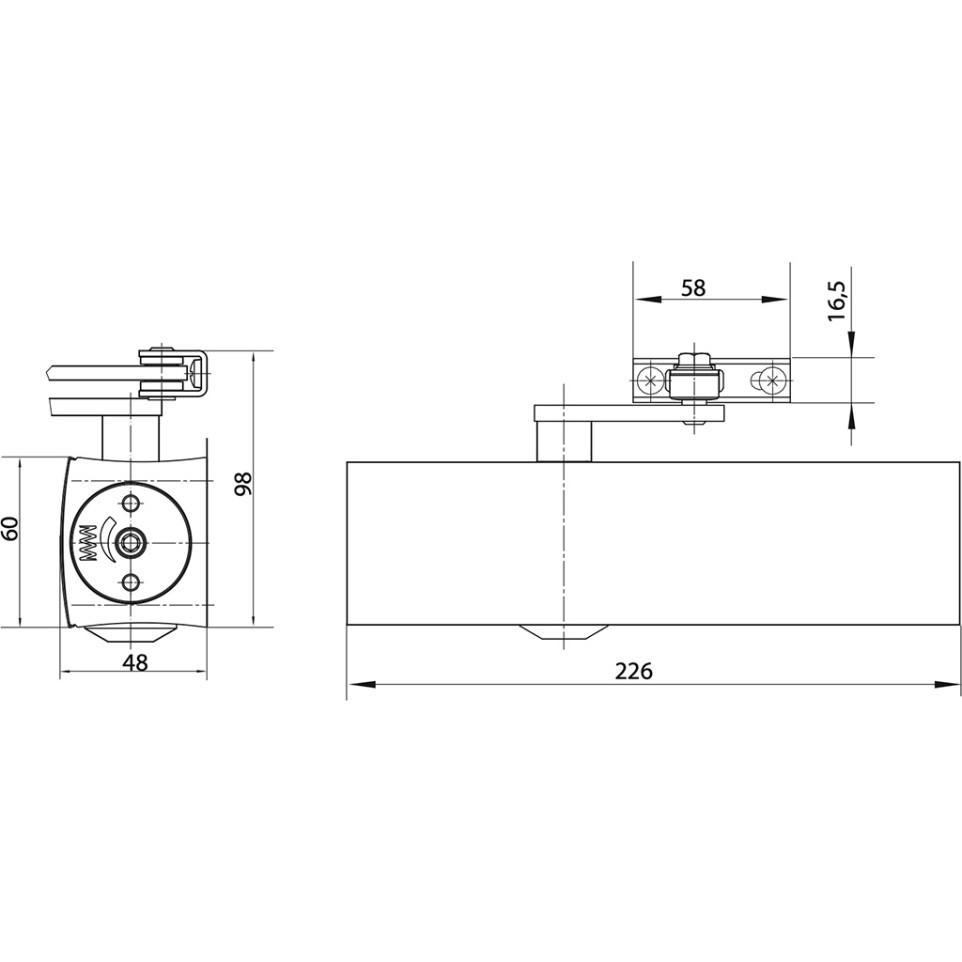

- Casing dimensions: length 226 mm, height 60 mm, depth 48 mm; corrosion-resistant materials used throughout construction [3][5][7]
- Lifespan rated up to several hundred thousand cycles; tested to EN1154 safety standard with variable closing force from size EN 2 to EN 4 [3][5][7]
- Suits door leaves up to max. width of 1100 mm; can be set for different leaf weights by adjusting force [1][9]
How it works
The Geze TS 2000 NV is mounted above the door. When opened, its internal spring mechanism is tensioned; upon release, hydraulic control regulates both speed and latching so the door closes smoothly and securely every time.
