Product
Single handle Fapim Horus 2050 in black RAL 9005, designed for door fittings in both residential and commercial settings. Offers a modern and functional solution for opening and closing doors with ease.
Specifications
- Die-cast aluminum handle and base, ensuring robust construction
- Nylon rotation bush for smooth movement
- Stainless steel square 8 mm springs and washers
- Zinc-plated steel fixing screws
- Return spring mechanism with screw-concealing escutcheon
- Matte black finish, compliant with RAL 9005

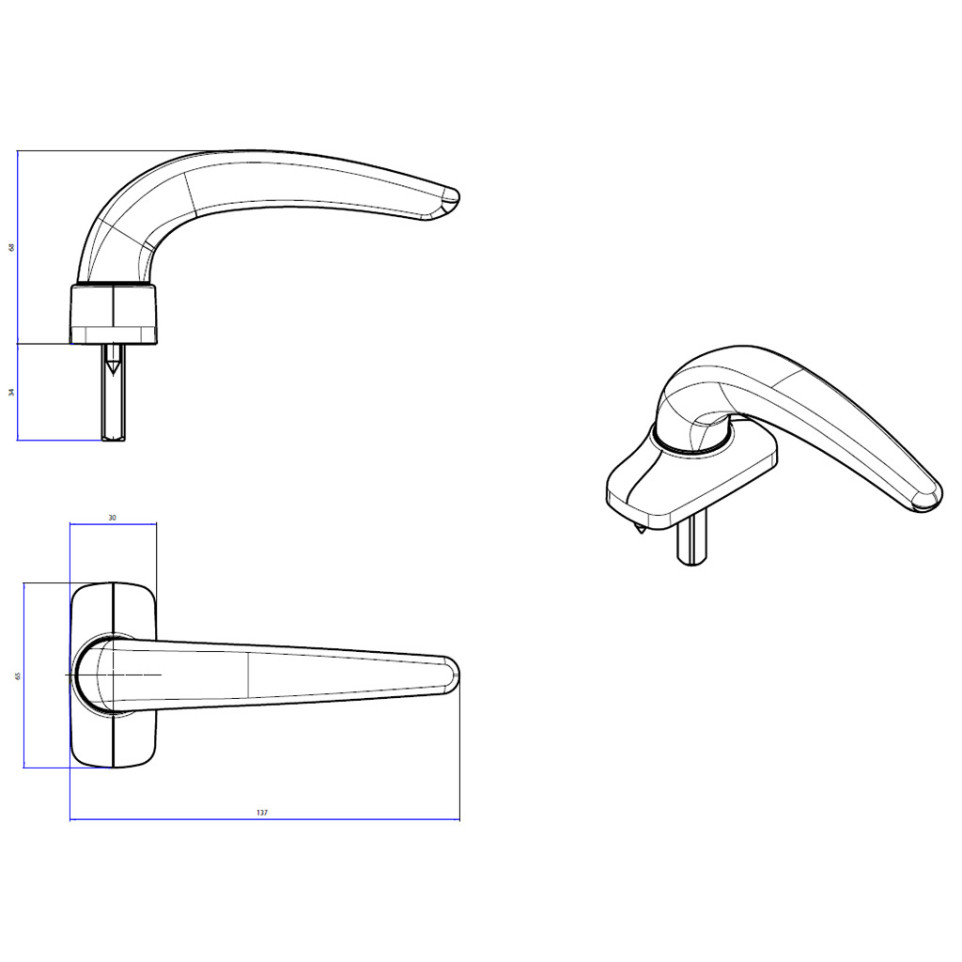

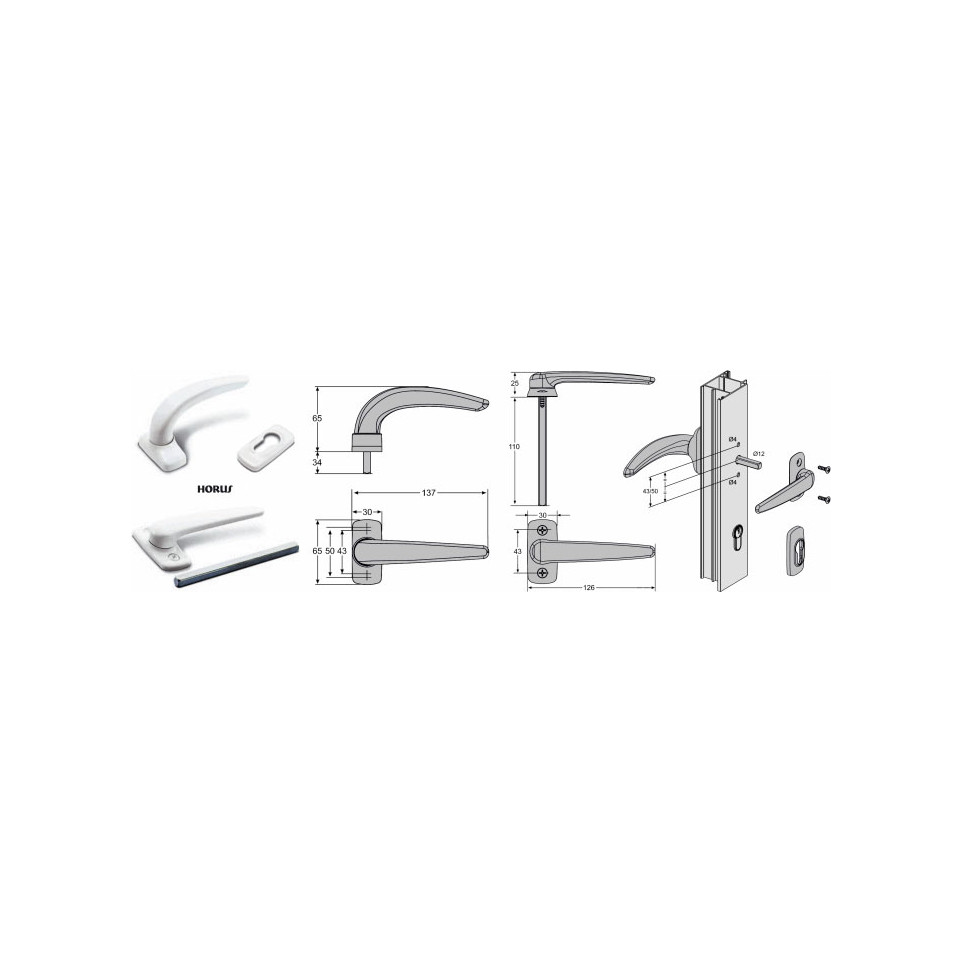

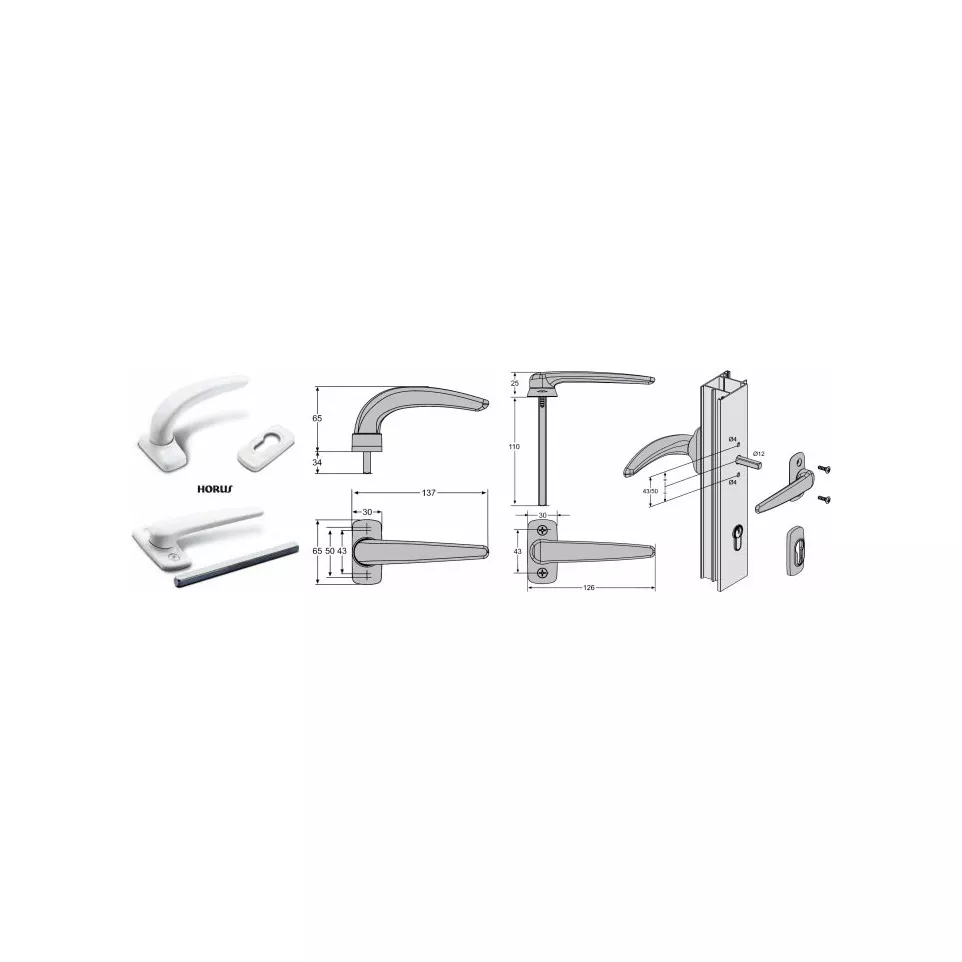

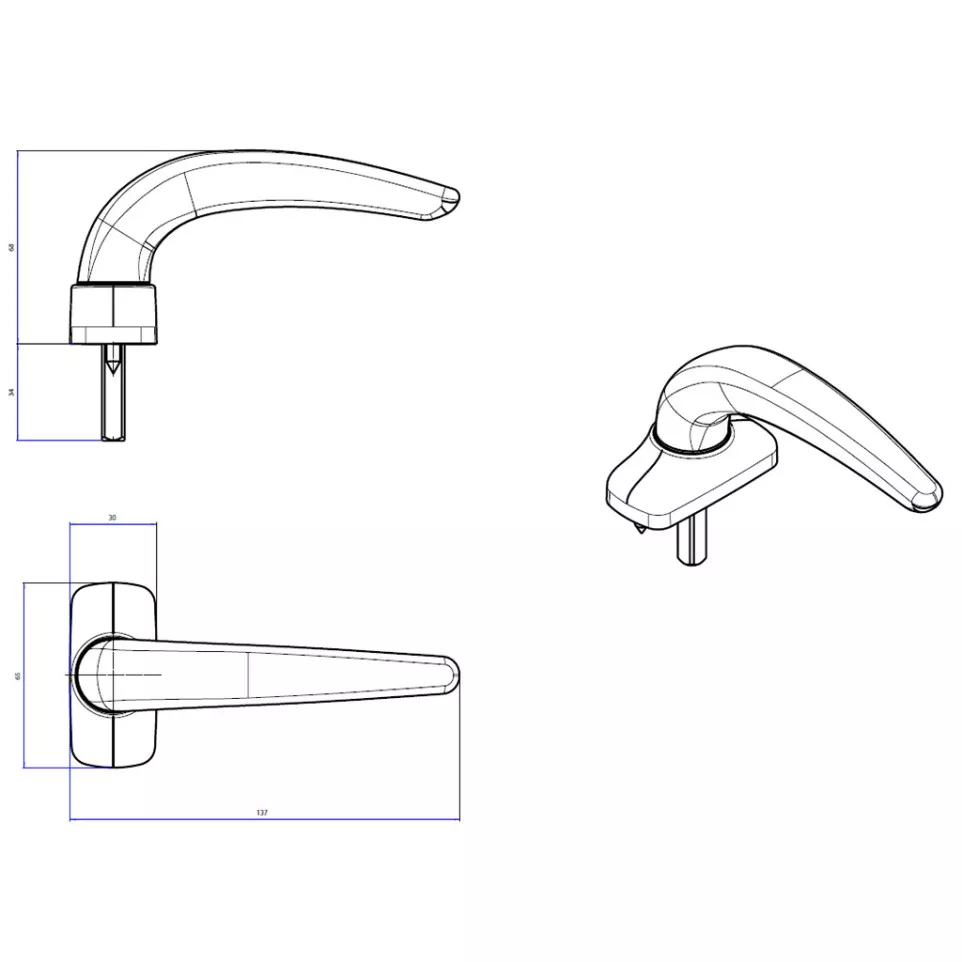

- Dimensions: length 137 mm, width 30 mm, height 13 mm, depth 68 mm
Usage
Install the handle onto the door by following the manufacturer’s instructions, ensuring proper alignment of the 8 mm square spindle with the lock mechanism. Secure with the provided zinc-plated screws. The return spring ensures the handle automatically returns to its original position after use, improving user comfort and reliability.
FAQ
-
What materials are used in the Fapim Horus 2050 handle?
The handle and base are made from die-cast aluminum, with a nylon bush, stainless steel springs and washers, and zinc-plated steel screws.
-
Is this handle suitable for both left and right-hand doors?
Yes, the handle is non-handed and can be installed on either side of the door.
-
What is the finish of the handle?
It features a matte black finish, compliant with the RAL 9005 standard.
-
What are the spindle dimensions?
The included spindle is 8 mm square.
-
How does the return spring function benefit users?
The integrated return spring ensures the handle returns to the horizontal rest position automatically after use, enhancing convenience and maintaining consistent appearance.
