Product

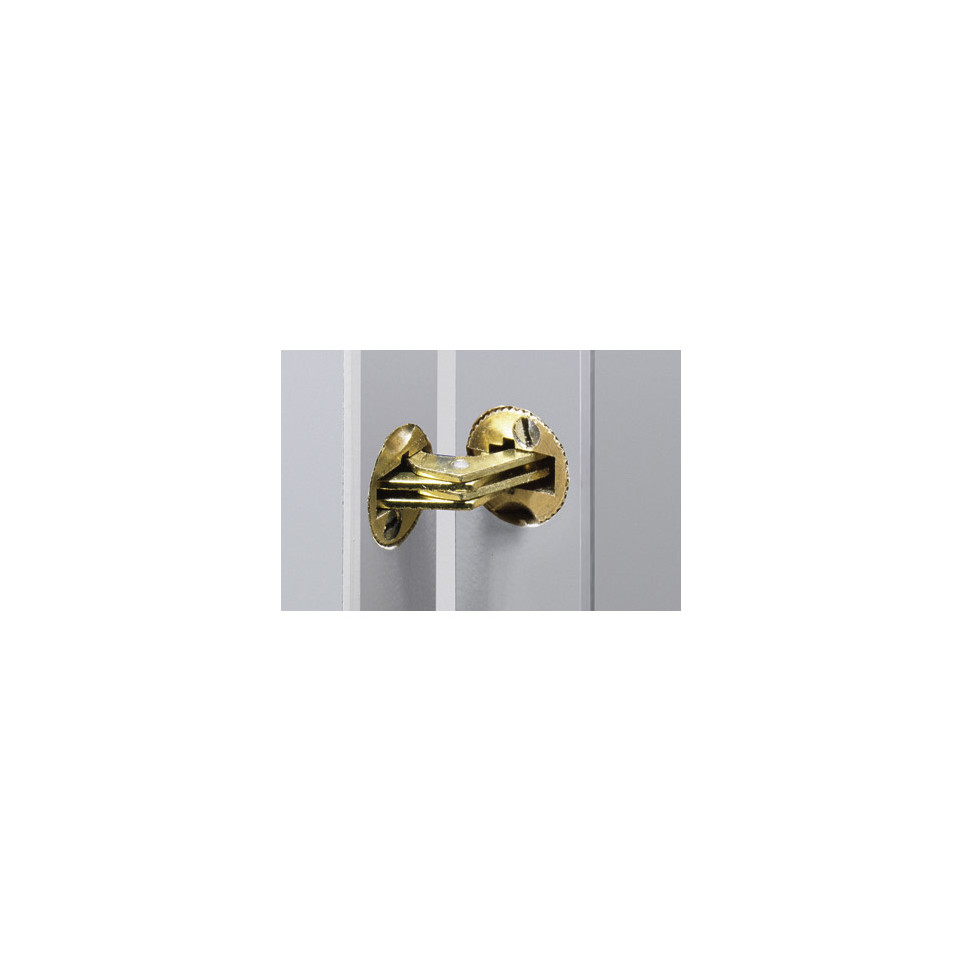

Versatile cylindrical hinge designed for drilling applications, suitable for hinged doors, folding doors, flaps, chest lids, and similar fixtures. Ideal for both residential and commercial use where a concealed and reliable hinge is needed.
Specifications
- Features a drill-in design for precise 18mm bore holes, with a maximum leaf height of 35mm and suitable for door leaves up to 19mm thick
- Constructed in matte brushed brass for corrosion resistance and a discreet finish
- Offers a 180° opening angle for full accessibility; reversible for left or right installation
Usage
Prepare the frontal side of the door or panel by drilling an 18mm hole. Insert the hinge directly into the bore, with or without adhesive, then secure by tightening the expansion screws. For added stability, fasten further with countersunk screws according to the assembly chart. Suitable for heavy and moderate-duty joints in furniture and cabinetry.
FAQ
- What is the correct bore diameter for installation?
- The hinge requires an 18mm diameter bore for proper fitting.
- Is the hinge reversible for left and right-hand doors?
- Yes, it is reversible and can be installed on either side.
- What is the maximum opening angle?
- The hinge provides a full 180° opening for maximum accessibility.
- What materials is this hinge made from?
- It is made of matte brushed brass, ensuring durability and aesthetic appeal.
- Can the hinge be used on thick doors?
- It is suitable for door thicknesses up to 19mm; verify compatibility before installation.
