Usage

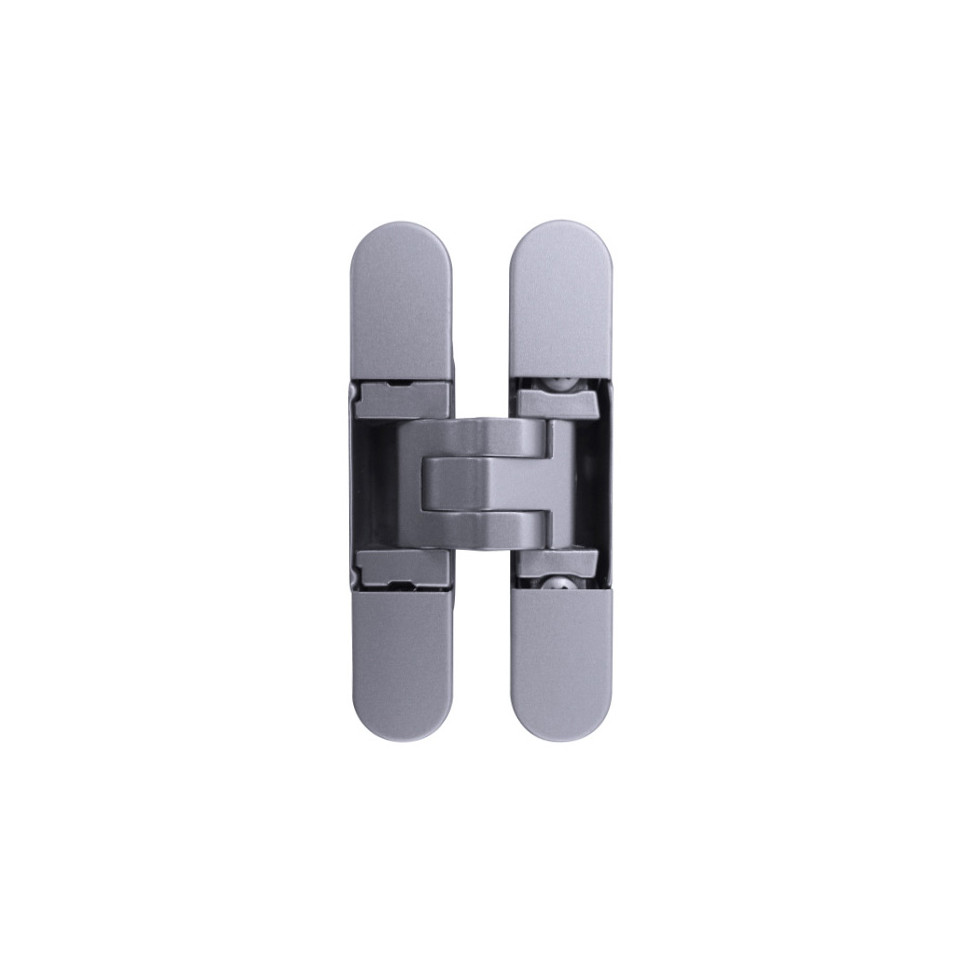

The Charnière invisible KUBIKINA K6100 chromé/satiné is designed for use in furniture and cabinet doors with a minimum panel thickness of 18 mm, offering concealed and adjustable mounting for a clean, modern aesthetic in interior spaces.
Advantages
- Completely concealed design ensures no visible hardware when the door is closed, enhancing visual appeal.
- 3D adjustment capability allows precise alignment: height ±1.5 mm, side ±1.5 mm, compression (depth) ±1 mm for perfect installation.
- High opening angle of up to 180° enables unobstructed access to cabinet interiors.
- Supports varying load capacities depending on hinge quantity: up to 10.5 kg with two hinges, 14 kg with three hinges, and 19 kg with four hinges.[7][3][4]
- Zamak alloy construction combined with acetalic plastic components delivers durability and smooth operation.[3][7]
Specifications
- Design: Chromed/satin finish; completely concealed once installed; suitable for both inside and outside cabinet applications.[7]
- Materials: Zamak (casing and connecting rods), acetalic plastic (adjustment body), steel cover; corrosion-resistant finishing tested at EN1670 standard for salt spray resistance up to 240 hours.[7]

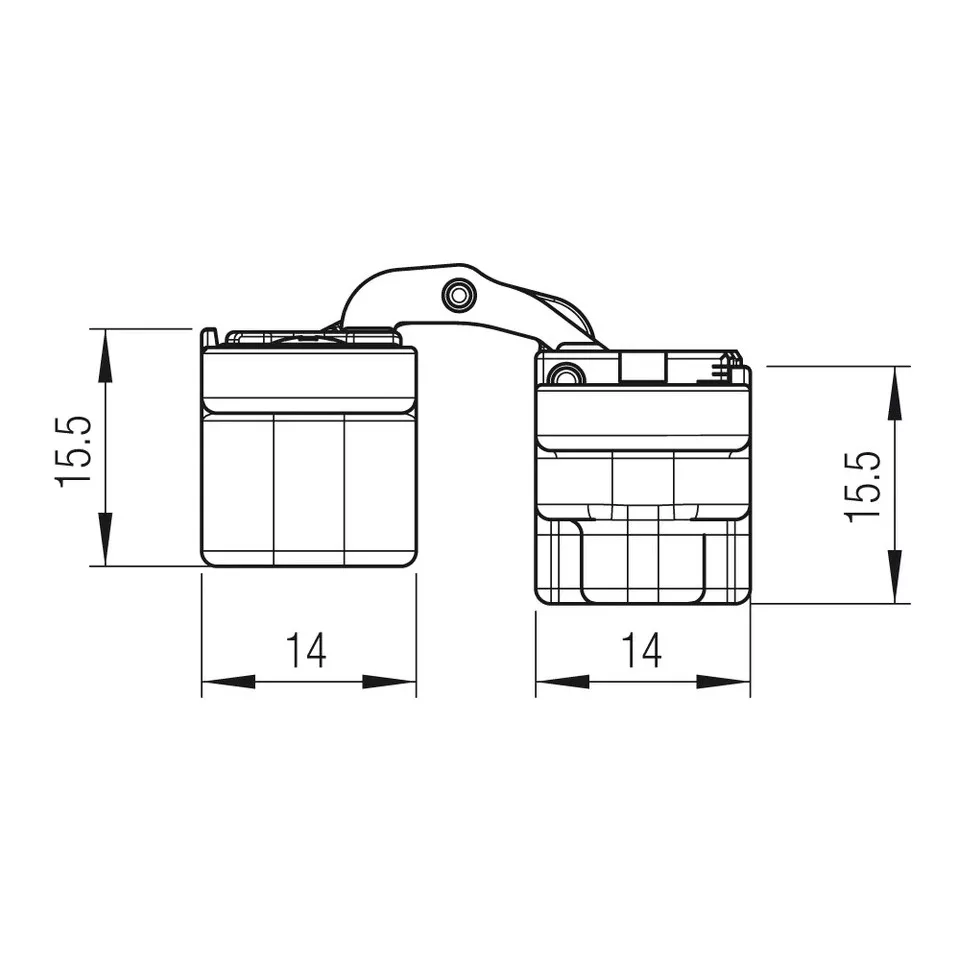

- Sizing & Capacity: Minimum panel thickness: ≥18 mm; hinge width: ≈14 mm; opening angle: up to 180°; supports door heights from ~1000–2000 mm using two to four hinges per leaf.[4][7]
- Differentiators: Independently adjustable in three dimensions after installation; maintenance-free bearings ensure longevity without regular servicing.[1][5][7]
How it works
The KUBIKINA K6100 installs into routed pockets within the door edge and frame. Once fitted using appropriate screws, its unique mechanism allows fine-tuning in height, depth, and lateral positioning even after mounting—enabling seamless closing function while remaining entirely hidden from view when the door is shut.[1][3][7]
