Product
Sliding and guiding kit for 2 doors with a maximum thickness of 19 mm, the Hawa Combino 35 H MS (Mixslide) supports up to 35 kg per panel, designed specifically for smooth and reliable movement of wooden cabinet or closet doors.
Specifications
- Constructed with durable zinc-plated steel running gear and anthracite plastic housings
- Suitable for top-running, Mixslide configuration for 2 wooden doors, maximum door height 2200 mm, door width up to 1200 mm each, and door thickness up to 19 mm

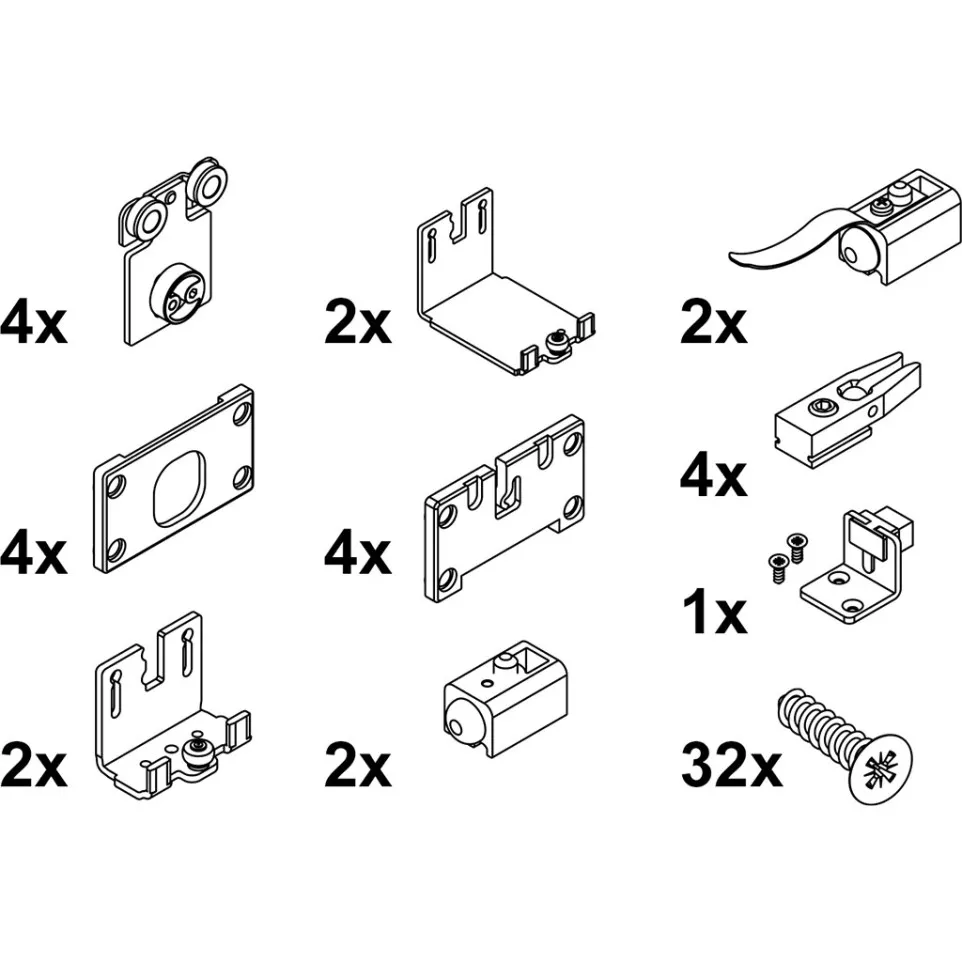

- Features pre-assembled components for easy installation, optional soft-close function, and access from the front for maintenance
Usage
This sliding kit is used to mount and guide two wooden doors in cabinets or furniture, ensuring each door with up to 35 kg glides smoothly along a top track. The system allows for quick installation without extensive cabinet modification and can be equipped with soft-close for enhanced convenience.
FAQ
-
What materials are compatible with this sliding system?
It is designed for wooden doors, supporting a maximum door thickness of 19 mm. -
What is the maximum weight capacity per door panel?
Each door panel can weigh up to 35 kg. -
Can the system accommodate doors wider or taller than the specified maximum dimensions?
No, the maximum door width is 1200 mm and height is 2200 mm per panel. -
Is the kit equipped with a soft-close mechanism?
The soft-close function is optional and can be added to the system. -
Is additional cabinet preparation required for installation?
No cabinet processing is needed; the kit features a high degree of pre-assembly for straightforward and quick mounting.
