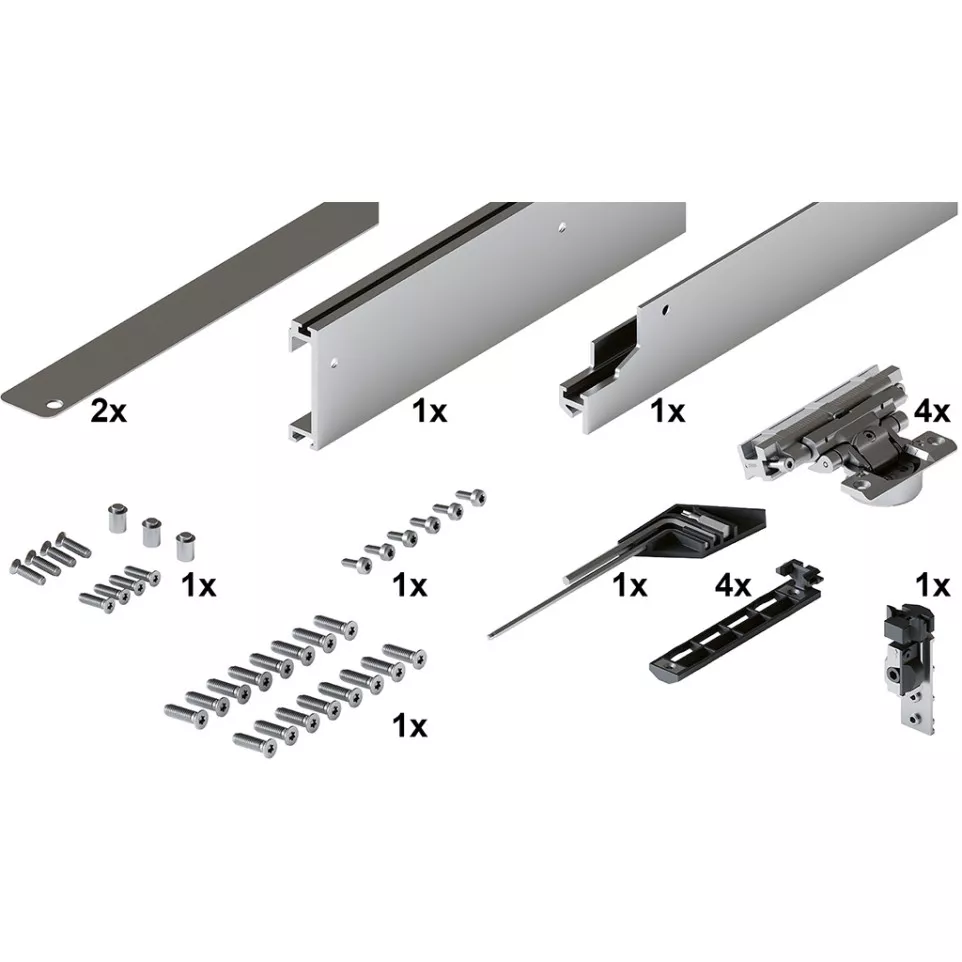

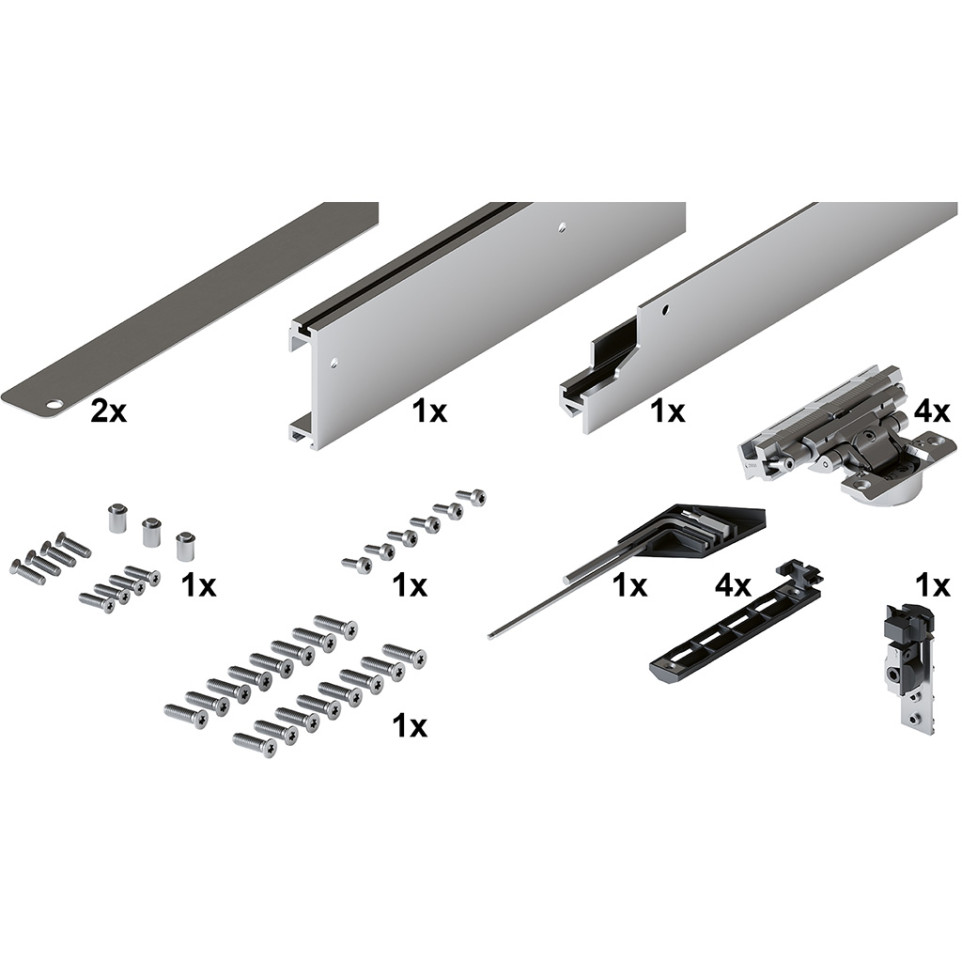

Hawa Concepta III 35 Base Kit for Left Pivot Sliding Door Height 1900–2700mm per piece

Product

Versatile base fitting set for a left-side pivoting and retractable door, designed for wooden doors 1900–2700 mm high. Ideal for creating seamless access in kitchens, closets, or workspaces, compatible with the Hawa Concepta III 35 system.

Specifications

• Supports a maximum door weight up to 40 kg with attention to the correct weight-to-size ratio.
• Designed for door widths from 300 to 900 mm and heights between 1851 and 2500 mm.
• Suitable for wooden door panels with thicknesses of 19 to 50 mm.
• Incorporates advanced movement technology for smooth, ergonomic operation.
• Durable construction meets demanding cabinet and furniture integration requirements.
• Compatible with left-handed, single-door applications and designed for easy installation and adjustment.

Usage

The set enables doors to pivot open and slide smoothly into a concealed pocket, maximizing usable space and providing unimpeded access to cabinets or niches. Commonly used in residential or commercial interiors, it is optimized for applications where flush fronts and hidden storage solutions are desired. Adjustment and installation are straightforward, reducing setup time and ensuring optimal door alignment.

FAQ

1. What is the maximum door weight this system can support?
   The system supports doors weighing up to 40 kg, but always check the weight-to-size ratio for safety and performance.

2. What door dimensions are compatible?
   It fits wooden doors with widths from 300 to 900 mm, heights from 1851 to 2500 mm, and panel thicknesses of 19 to 50 mm.

3. Is this set suitable for both residential and commercial use?
   Yes, the system is engineered for various interior applications, including residential kitchens, offices, and commercial storage.

4. Can the door be installed for right-side operation?
   This specific set is for left-side operation; right-side versions are available separately.

5. Are specialized tools or additional accessories required for installation?
   Installation is straightforward and requires standard tools. Some projects may need extra support brackets, depending on cabinet configuration.
