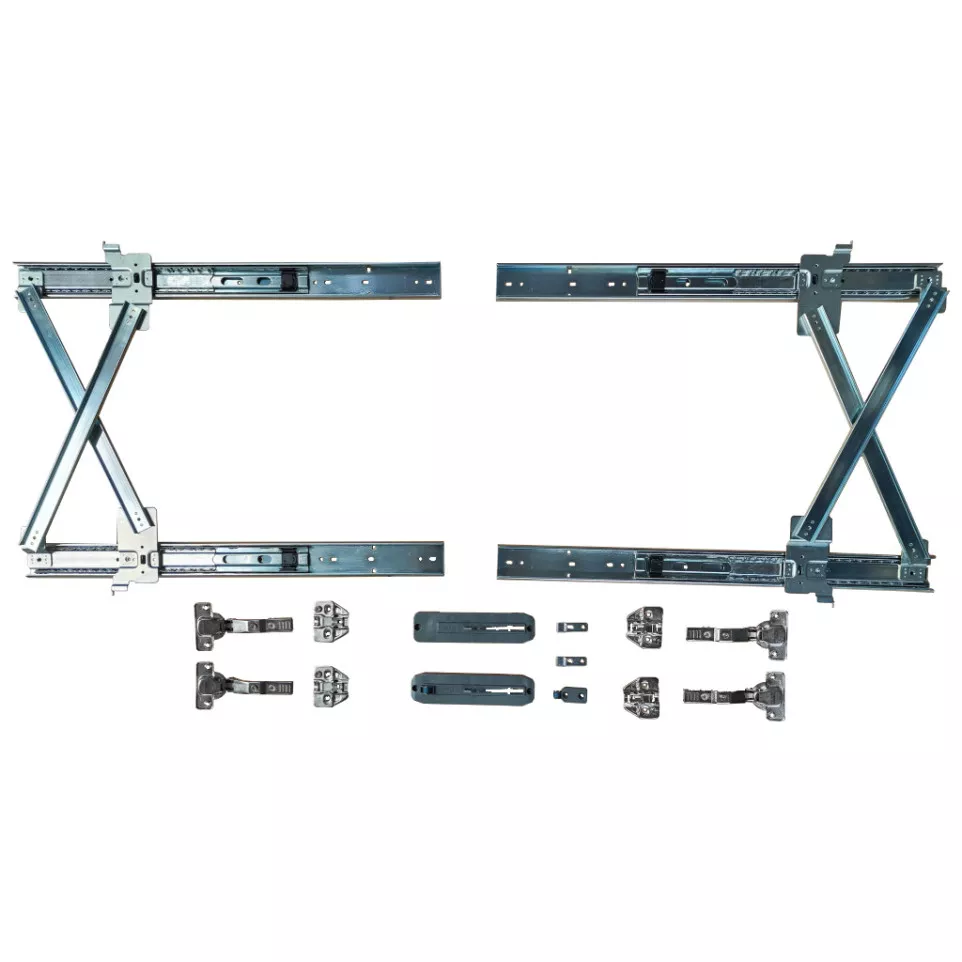

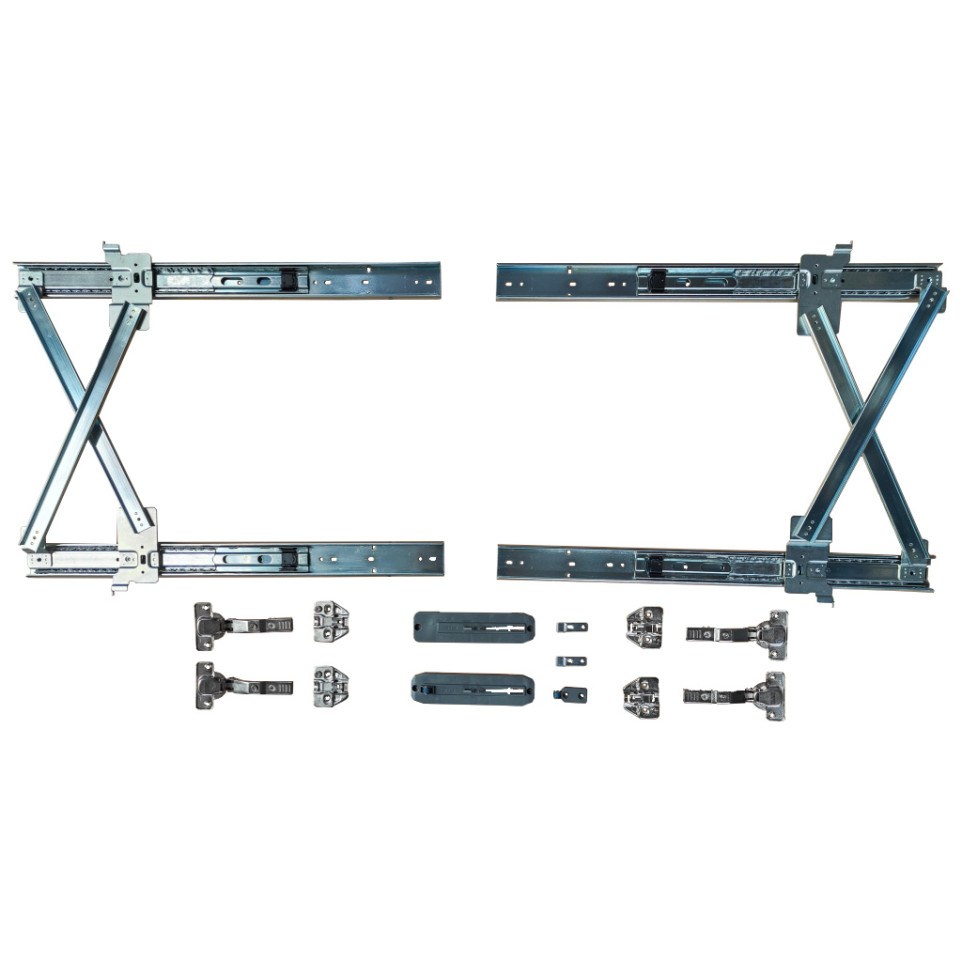

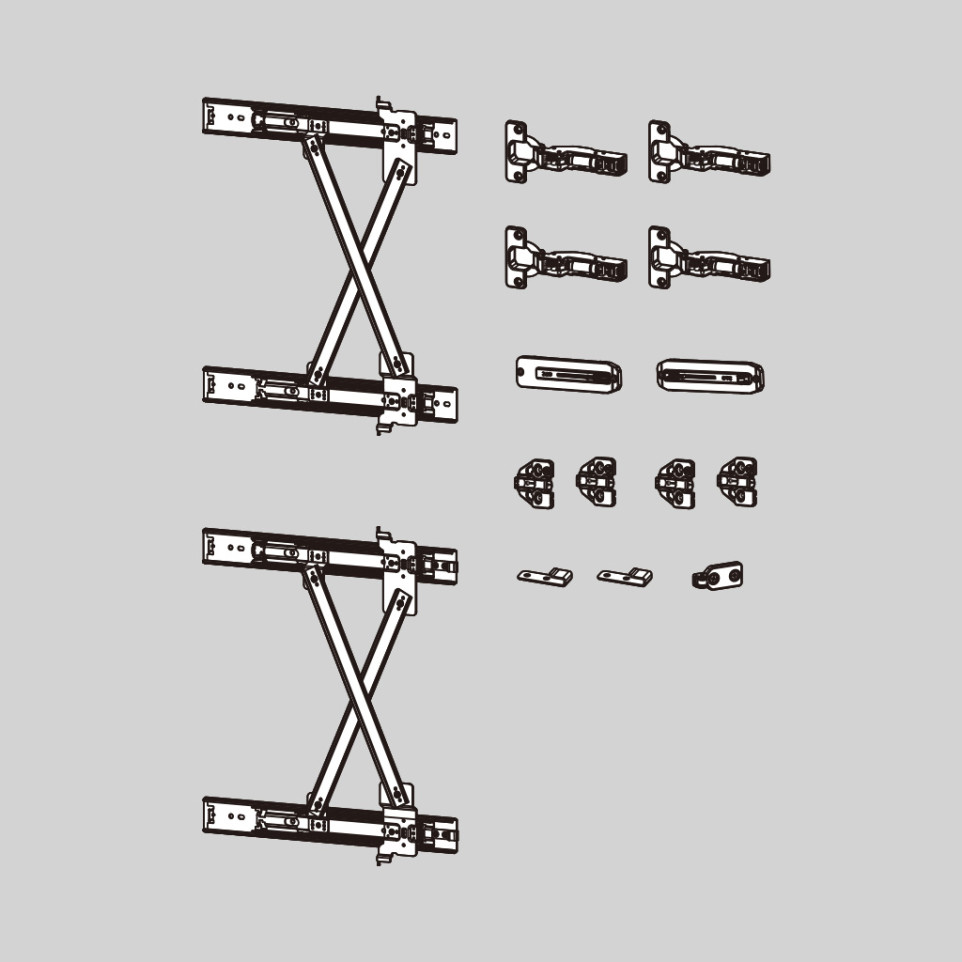

Pivoting and Retractable Hardware Kit R01 Depth 450mm for Doors up to 25kg / pc

Pivoting and Retractable Hardware Kit R01 Depth 450mm for Doors up to 25kg / pc
Pivoting and Retractable Hardware Kit R01 Depth 450mm for Doors up to 25kg / pc
Pivoting and Retractable Hardware Kit...
Pivoting and Retractable Hardware Kit...

Estimated delivery date :  Wednesday 10 June
€155.81 HT
In stock

Ref : FGT-247901

Variantes

Pivot and Retractable Fitting Kit R01 depth 700mm for doors up to 25kg per piece Pivot and Retractable Fitting Kit R01 depth 700mm for doors up to 25kg per piece Pivot and Retractable Hinge Kit R01 400mm Depth for Door Max 25kg per piece Pivot and Retractable Hinge Kit R01 400mm Depth for Door Max 25kg per piece Pivot and Retractable Hinge Kit R01 600mm Depth for Max 25kg Door per piece Pivot and Retractable Hinge Kit R01 600mm Depth for Max 25kg Door per piece Pivot and Retractable Hinge Kit R01 depth 650mm for door up to 25kg per piece Pivot and Retractable Hinge Kit R01 depth 650mm for door up to 25kg per piece Pivoting and Retractable Hinge Kit R01 550mm Depth for Max 25kg Door per piece Pivoting and Retractable Hinge Kit R01 550mm Depth for Max 25kg Door per piece Pivoting and Retractable Hinge Kit R01 Depth 500mm for Door up to 25kg per piece Pivoting and Retractable Hinge Kit R01 Depth 500mm for Door up to 25kg per piece
Quantity

Add to your shopping List

You must be logged


Description

Product

Pivoting and retractable hardware kit R01 with a 450 mm depth is designed for concealed cabinet or closet doors up to 25 kg. Ideal for optimizing access and space in furniture and storage solutions.

Specifications

  • Three-dimensional adjustment: height ±2 mm, side +3 mm/-2 mm, depth ±3 mm
  • Supports door thickness from 16 to 30 mm
  • Compatible with cabinet depths of 450 mm
  • For doors up to 25 kg with two slide sets (height up to 2000 mm)
  • For doors up to 30 kg with three slide sets (height 1600–2700 mm)
  • Provides smooth, controlled door movement

Usage

After installation inside the cabinet or closet, the hardware allows the door to pivot open and then slide seamlessly into the side cavity, providing unimpeded access without obstruction. Three-way adjustments ensure precise door positioning.

FAQ

  1. What is the maximum door weight this kit can support?

    • Up to 25 kg with two slide sets; up to 30 kg with three slide sets.

  2. What are the adjustment ranges?

    • Height ±2 mm, lateral +3 mm/-2 mm, and depth ±3 mm.

  3. What is the supported door thickness?

    • Between 16 mm and 30 mm.

  4. What cabinet depth is required for installation?

    • A cabinet depth of 450 mm.

  5. How does the door operate with this hardware?

    • The door pivots outward to open and then slides laterally into the cabinet’s side cavity for full, unobstructed access.
