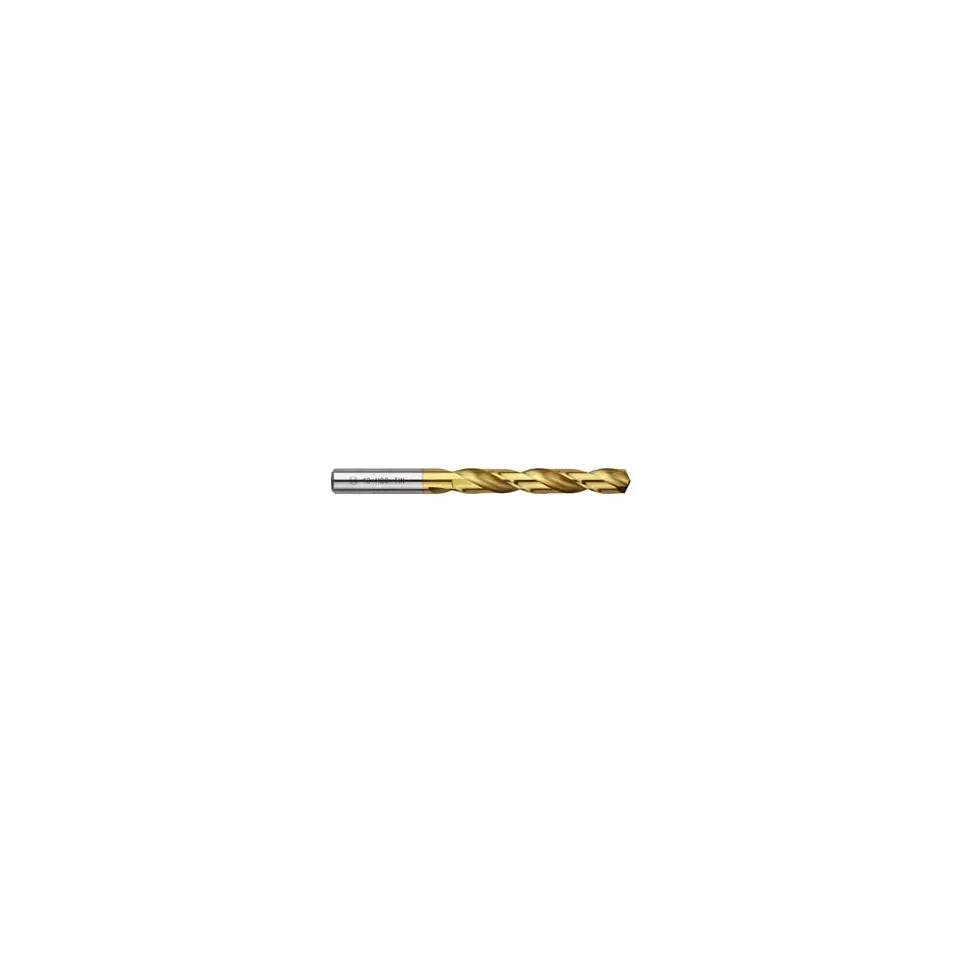

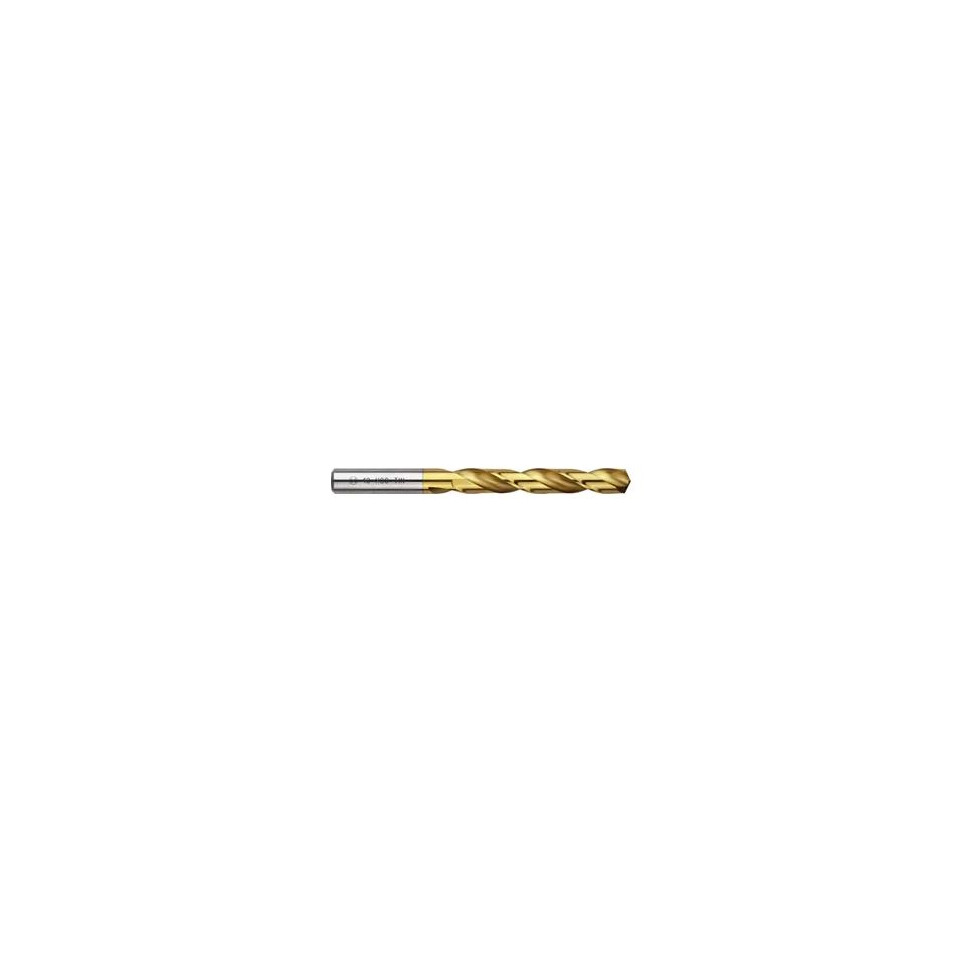

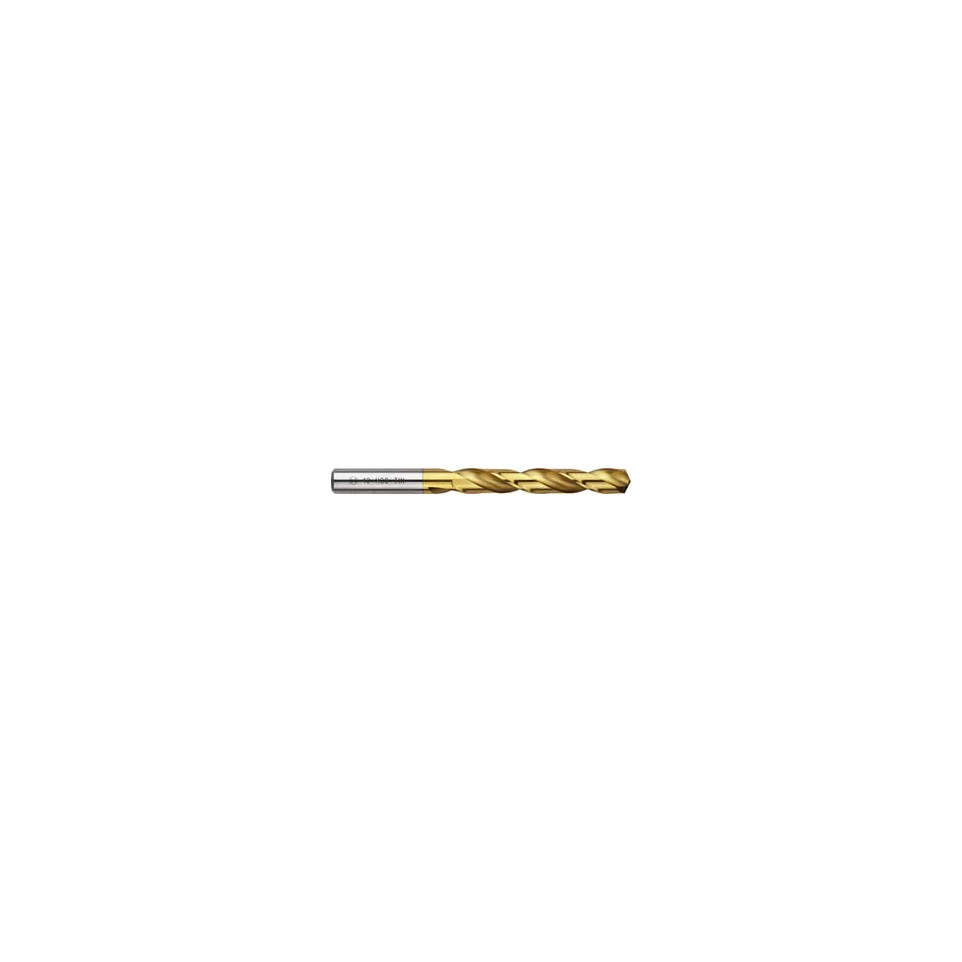

Bosch Titanium-Coated Metal Drill Bit Ø10 mm / pc

Product

Bosch Titanium-Coated Metal Drill Bit Ø10 mm is engineered for accurate drilling in a range of metals and technical materials. Ideal for precise, high-performance work in both professional and industrial settings.

Specifications

• Helical twist design, made from high-speed steel (HSS) following DIN 338 standards, with a right-hand cutting direction and type N geometry
• Fully ground body with a titanium nitride-coated surface for enhanced durability and optimized performance
• 135° split point tip ground to DIN 1412C, including diameter tolerance to ensure accurate, clean holes
• Gold-colored finish and shank diameter matching the drill diameter for secure fit
• Suitable for drilling alloyed and unalloyed steels (up to 900 kg/mm² tensile strength), malleable cast iron, sintered iron, silver, alloyed and unalloyed aluminum, copper, bronze, and plexiglass

Usage

Insert the drill bit into the appropriate chuck, ensuring the shank matches the diameter. Apply steady pressure and use a coolant fluid during operation to maintain tip sharpness and extend tool life. Recommended for machine and hand-held electric drills.

FAQ

1. What materials can this drill bit handle?
   It is designed for metals like alloyed and non-alloyed steels, cast iron, sintered iron, silver, aluminum, copper, bronze, and plexiglass.

2. What is the benefit of the titanium coating?
   The titanium nitride coating reduces friction, increases wear resistance, and improves chip evacuation for longer tool life.

3. Does the drill bit require coolant during use?
   Yes, always use a suitable coolant fluid to optimize performance and prevent overheating.

4. What is the point angle and why does it matter?
   The 135° split point ensures fast, precise starts and minimizes bit walking, making it suitable for harder metals.

5. Is this drill bit suitable for handheld drills?
   Yes, it is compatible with both hand-held and stationary drilling machines, provided the chuck accepts a 10 mm shank.
