Dormakaba 117 E Symmetrical Electric Strike 6-12 Vac/dc Without Faceplate per piece

Product

The Dormakaba 117 E 6-12 Vac/dc electric strike offers a robust solution for secure access control in various environments. Designed as a versatile alternative to the 17, 27, and 37 EFF-EFF series, it fits seamlessly into new or retrofit installations.

Specifications

• Symmetrical body design compatible with multiple lock types and orientations
• Supports input voltages from 6 to 12 Vac/dc

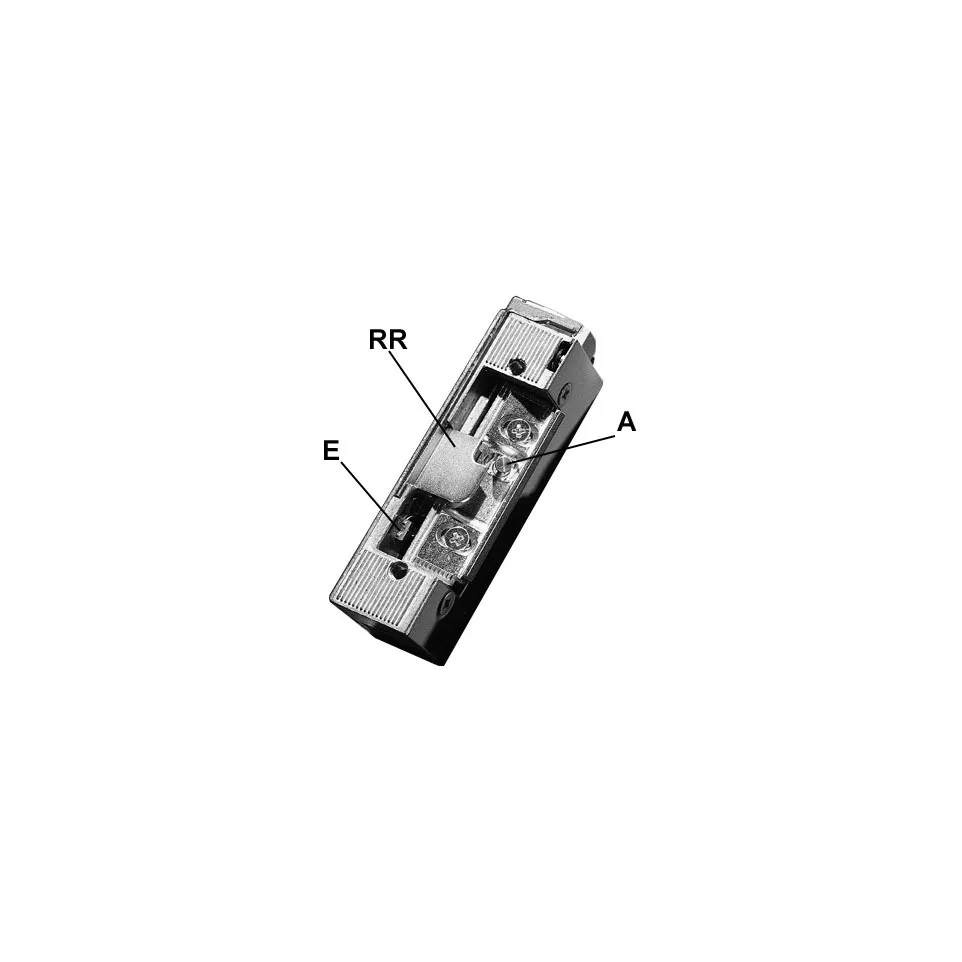

• Features stationary contact (A): unlocks after a pulse command until the door is opened
• Manual override (E): mechanically disables the lock, allowing unrestricted passage when needed
• Integrated signal contact (RR): provides door open/closed status via a potential-free micro-contact
• 100% ED continuous operation on compatible DC models (12 or 24 Vdc)
• Reliable performance suitable for commercial and public building access points

Usage

Install the electric strike in the door frame to enable secure, controlled entry. Connect to the building’s access control or intercom system for remote unlock via electrical pulse. Use the manual override for periods of free access. Status contact integrates with monitoring systems for real-time door state feedback.

FAQ

1. What lock types are compatible with the Dormakaba 117 E?

   • It is compatible with many standard lock types and is designed for both new installations and as a replacement for EFF-EFF 17, 27, and 37 series.

2. How does the manual override function work?

   • The manual override mechanically disables the locking function, allowing free passage for authorized periods or during emergencies.

3. Can I connect this electric strike to my existing access control system?

   • Yes, it integrates with most standard access control, door entry, and intercom systems using 6–12 Vac/dc input.

4. Is there a feedback signal for monitoring door status?

   • Yes, the integrated RR micro-contact provides a potential-free signal indicating whether the door is open or closed.

5. Is it suitable for continuous operation?

   • Models using 12 or 24 Vdc are designed for 100% duty cycle, allowing for continuous or frequent activation as required in busy settings.
