Effeff 128E.13 ProFix2 Narrow Symmetrical Electric Strike 10-24 Vac/dc without Faceplate per piece

Product

The Effeff 128E.13 ProFix2 is a slim, symmetrical electric strike designed for secure door access control in commercial and residential buildings. Compatible with most standard mortise locks and ProFix 2 strike plates, it offers universal voltage support and versatile installation options.

Specifications

• Symmetrical, narrow design for flexible installation (DIN left/right and horizontal)

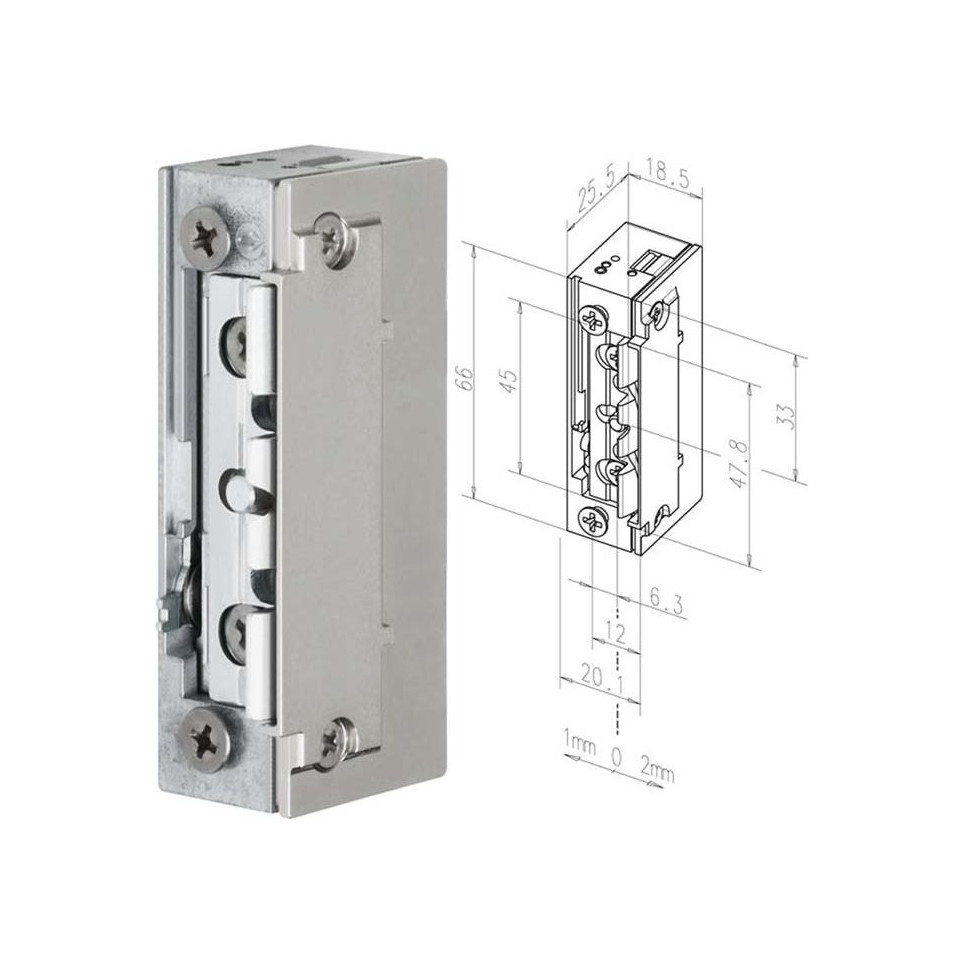

• Durable housing: 20.1 mm wide, 26 mm deep, 66 mm high; operating temperature -15 °C to +40 °C
• FaFix adjustable latch bolt (3 mm range), radial latch with mechanical day unlocking (manual release)
• Universal voltage (10–24 Vac/dc), terminal block connection
• Suitable for up to 250,000 load cycles; break-in resistance of 3750 N
• Current emission operation, stable contact, and manual mechanical unlocking (E)
• Fully compatible with all standard mortise locks and ProFix 2 strike plates

Usage

Install the electric strike in the door frame and connect it to the power supply via terminal block. The device allows for controlled access when energized and can be mechanically unlocked for daytime operation. Its adjustable latch and symmetrical design accommodate different door orientations and installation types.

FAQ

1. Is the Effeff 128E.13 ProFix2 suitable for both left- and right-handed doors? Yes, its symmetrical design allows installation on DIN left, DIN right, and horizontal door orientations.

2. What types of locks are compatible with this electric strike? It is compatible with all common mortise locks and ProFix 2 strike plates.

3. What is the voltage range for this model? The unit supports universal operation at 10–24 Vac/dc.

4. Does the strike allow for daytime mechanical unlocking? Yes, it features a manual mechanical release for day mode usage.

5. What is the break-in resistance of this product? The strike provides a resistance of up to 3750 N for enhanced security.
