Product
The LL Contuo Electric Desk Leg in white is a motorized, height-adjustable table leg system designed for ergonomic and comfortable workspaces. Suitable for desks used sitting or standing, it supports dynamic office environments by enabling effortless adjustment at the press of a button.
Specifications
- Electric height adjustment from 750 mm to 1250 mm, with a single-stage frame and smooth soft start/stop operation

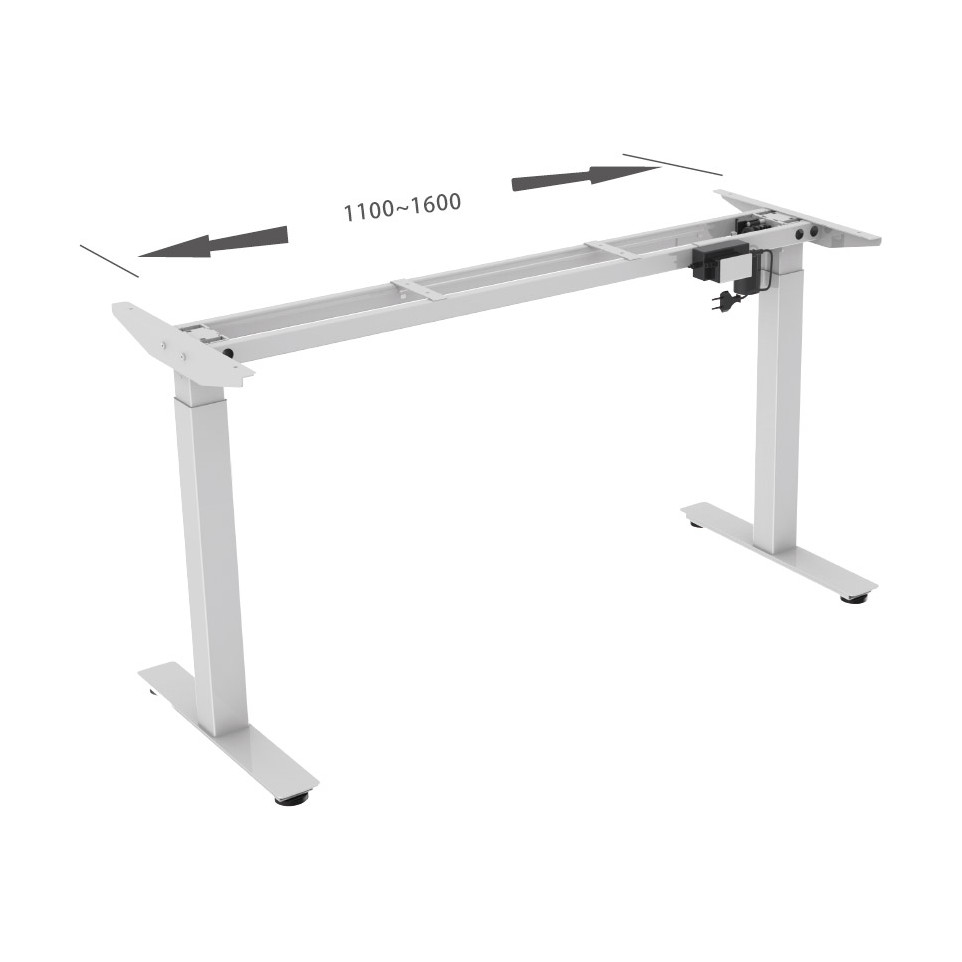

- Sturdy steel rectangular feet measuring 50 x 80 mm; frame width adjustable from 1100 mm to 1600 mm, compatible with desktops 650–800 mm deep
- Maximum lifting capacity of 80 kg with uniform load; lifting stroke of 500 mm; adjustment speed up to 25 mm per second
- No crossbars in the leg area for unobstructed leg movement
- Low energy consumption; rated voltage 100–240 V, 50–60 Hz
- Integrated collision detection system (object safety only)
Usage
Press the control button to smoothly raise or lower the desk to your preferred height for either sitting or standing work. The stable electric frame moves quietly and synchronously, making it ideal for ergonomic workstations up to 1600 mm wide and 800 mm deep. Regular use may contribute to better posture, comfort, and productivity.
FAQ
- What size desktops are compatible with this desk leg system?
- The frame suits desktops with a width of 1100–1600 mm and depth of 650–800 mm.
- How much weight can the Contuo electric legs lift?
- The maximum uniform load capacity is 80 kg, including the tabletop.
- How fast can the desk be raised or lowered?
- The adjustment speed is up to 25 mm per second.
- Is the adjustment process smooth and quiet?
- Yes, the system features soft start/stop technology for smooth and stable movement with low noise.
- Does the product include obstacle detection?
- Yes, it offers collision detection to prevent damage to objects but does not provide personal safety protection.
