Timer for Diax Electromagnetic Lock / pc
€67.87
In stock
Usage
The Bandeau 60cm with 2 suction cups (electromagnetic locks) and luminous signaling is designed for secure access control on new or existing doors in public buildings, offices, or schools. It provides visible door status indication for enhanced safety.
Advantages
- Integrates two monitored 300 kg electromagnetic locks for high holding force
- LED end caps display real-time door status with green and blue indicators
- Suitable for both indoor and outdoor installations, including retrofit use
- Compatible with various cable management accessories and spacers for professional finishes
- The short profile (700 mm total length) fits a wide range of standard doors while maintaining aesthetics[1][6][7]
Specifications
- Anodized aluminum housing; integrated dual electro-magnetic suction cups (ventouses)
- Complies with NF S61-937 certification; pre-assembled design covers previous installation holes[3][6]
- Total holding force: up to 600 kg (2 × 300 kg); dimensions: approx. 700×105×63 mm; operates at free-voltage DC:12/24/48V (-15%/+20%) with current draw of ~480mA @12VDC / ~240mA @24VDC[3][7]
- Luminous signalization clearly indicates open/closed state via colored LEDs; ready-to-install, adjustable mounting sections[1][3][6]
How it works

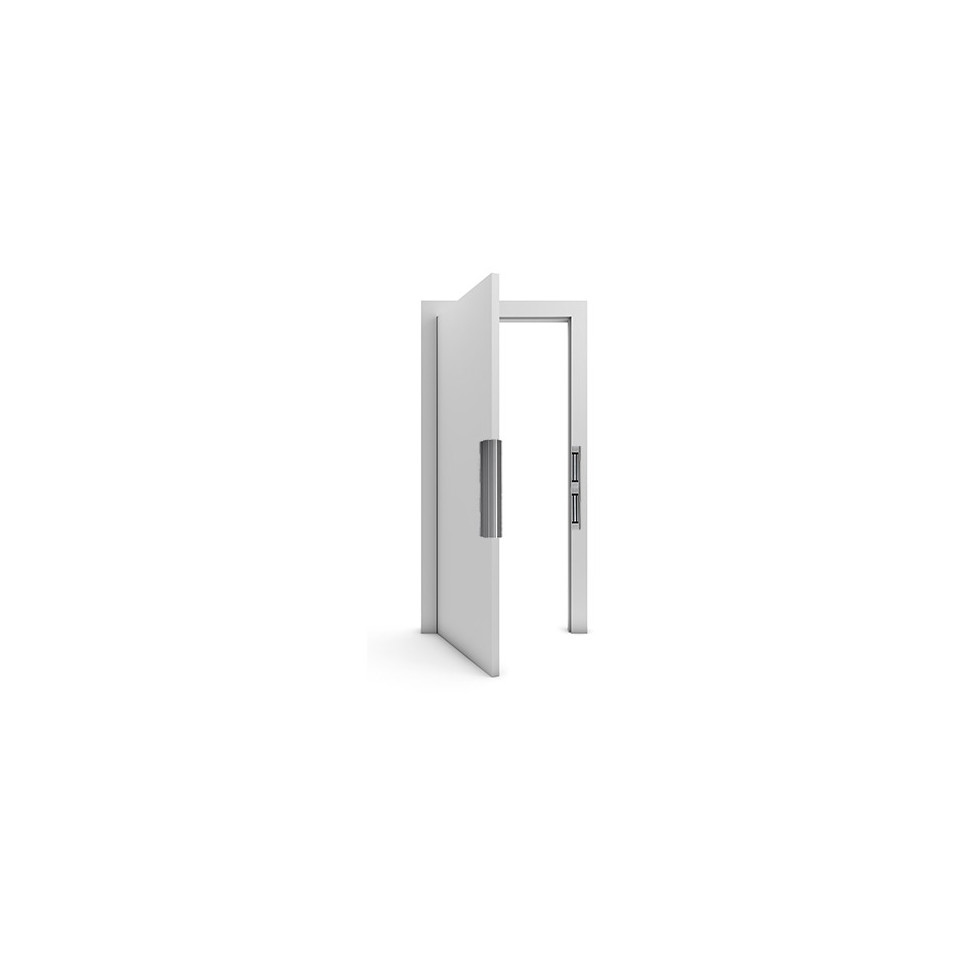

The product mounts directly onto the door frame. When powered, the twin electromagnetic locks provide secure holding power. Integrated LEDs show blue when locked (closed) and green when unlocked (open), offering immediate visual feedback to users or security staff.[1][3]
