CDVI BO600EVO 2500mm Architectural Handle with 1 Monitored Magnet 300kg LED Indication per piece

Product

The Cdvi BO600EVO is a 2.5-meter handle with two 300 kg electromagnetic hold magnets, designed for secure access control on a wide range of doors. Integrated blue and green LED indicators signal door status for enhanced safety and monitoring.

Specifications

• Robust aluminum handle equipped with two 300 kg (6000N) magnets for strong holding force
• Certified to NF S61-937 (PV SD190041 - CNPP) for compliance with safety standards
• Free-voltage operation: 12/24/48V DC (-15%/+20%)
• Blue LED indicates locked/closed status, green indicates unlocked/open
• Compatible with metal, wood, glass, and PVC doors
• Supports RAL color customization and custom cutting lengths

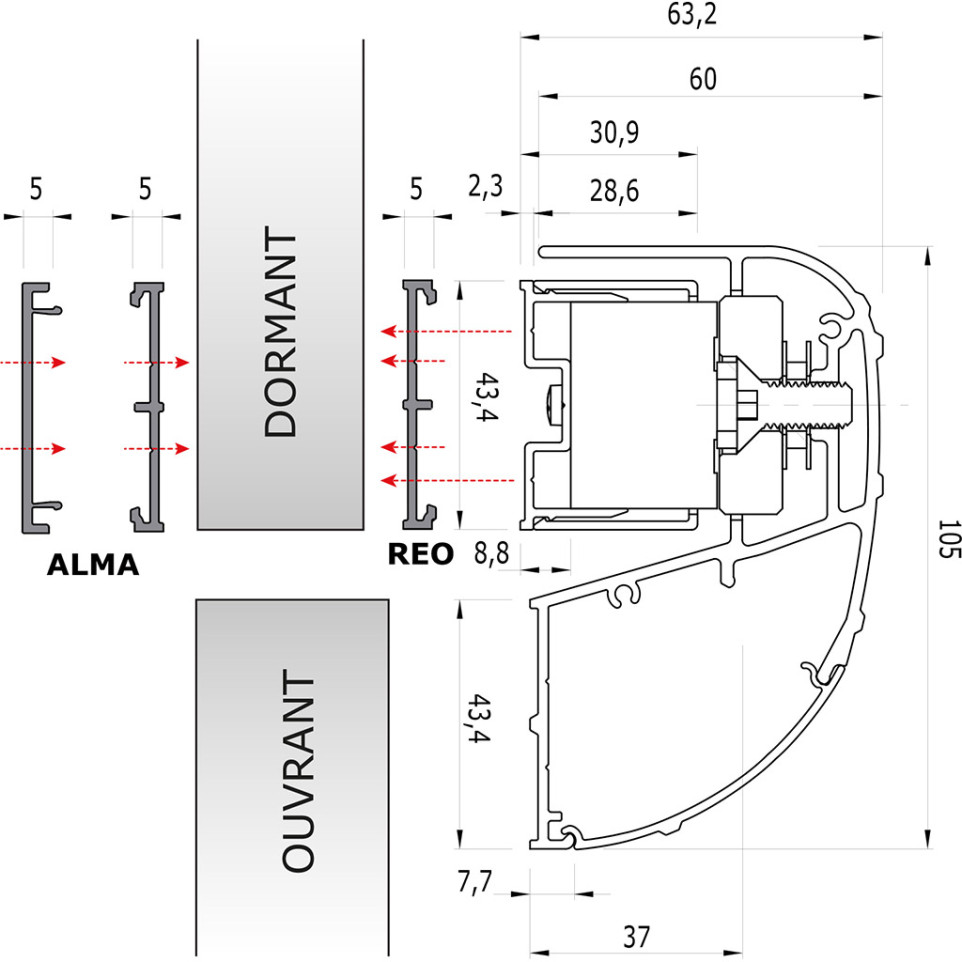

• Pre-assembled magnets on a clip-on mounting bar (frame installation)
• Pre-assembled counterplates on the covering handle (leaf installation)
• Allows partial or complete coverage of previous fittings

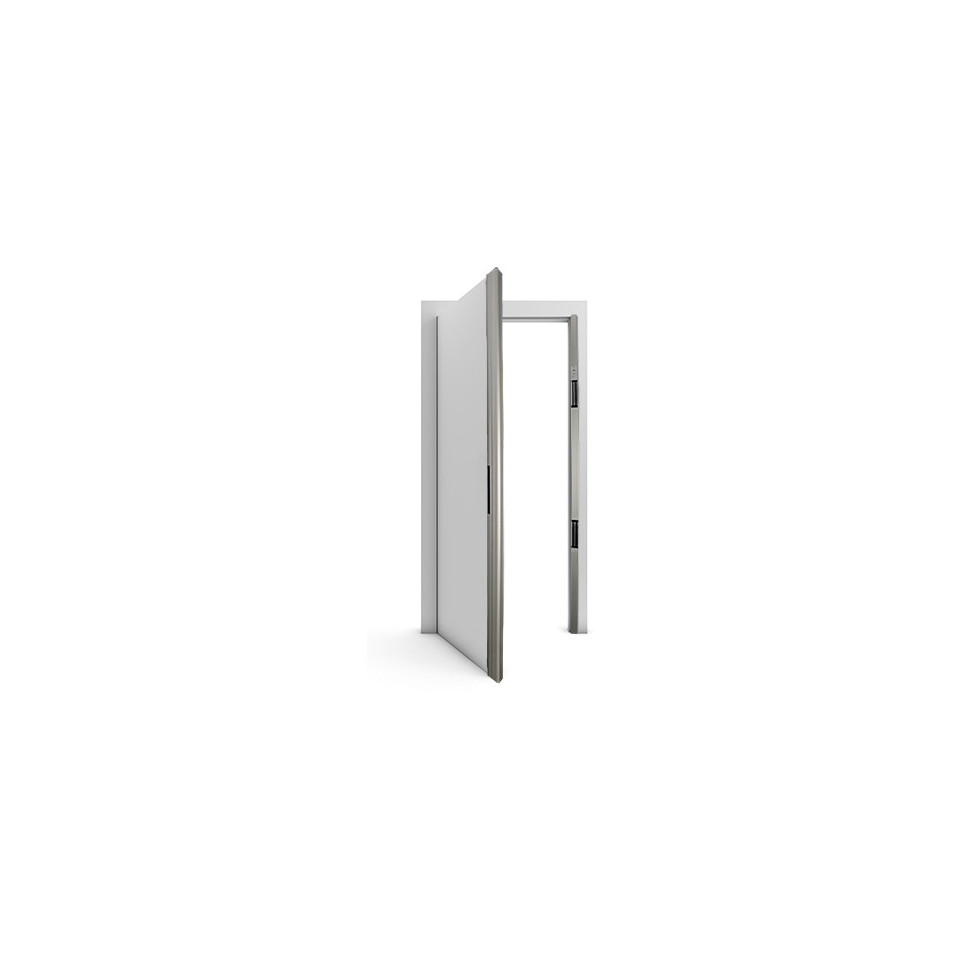

• Vertical or horizontal installation supported
• Installation compatible with NF S61-932; maintenance per NF S61-933
• Power consumption: 480 mA (12V DC), 240 mA (24V DC), 120 mA (48V DC) per magnet

Usage

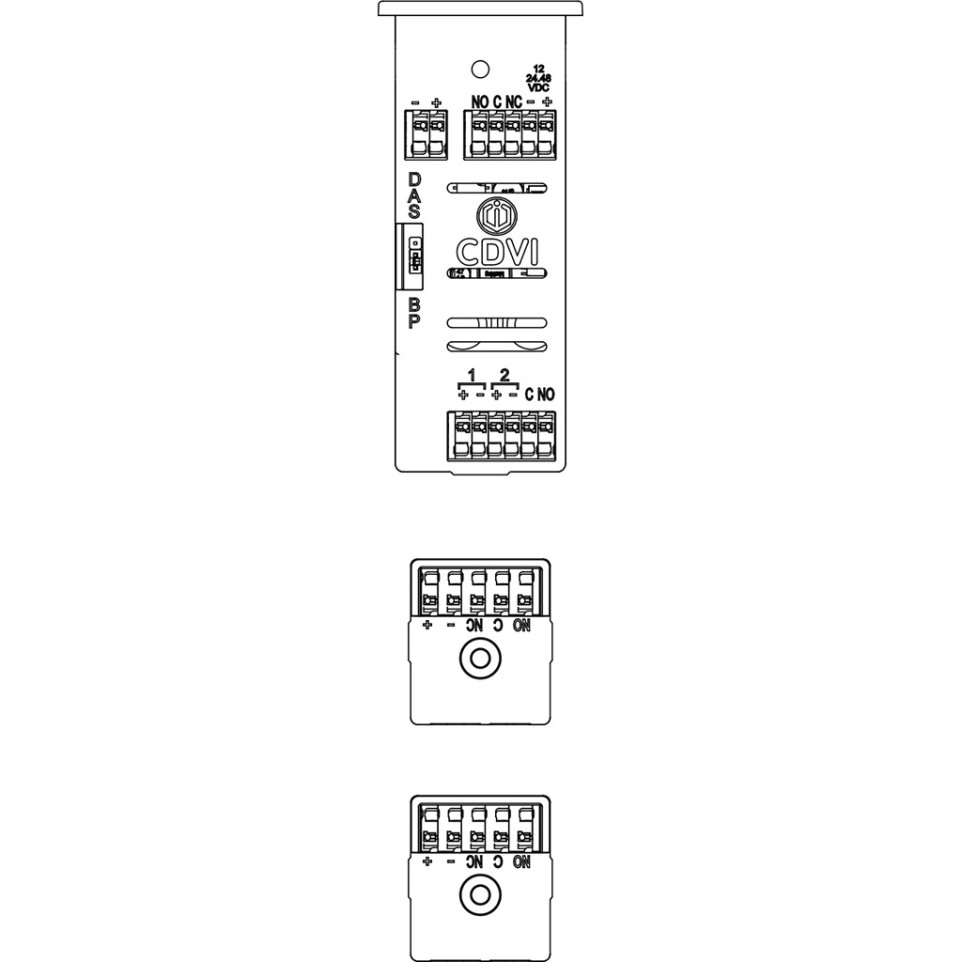

The BO600EVO is installed on either new or existing doors, offering secure electromagnetic locking. The LED indicators provide clear visual confirmation of the door’s security status, and the system supports remote control via a DAS-positioned jumper, accepting 24/48V DC input for the remote. Suitable for use in public, commercial, or institutional buildings, the handle can be installed vertically or horizontally to best fit the door type and layout.

FAQ

1. Can the BO600EVO be installed on any door type?
   Yes, it is compatible with metal, wood, glass, and PVC doors.

2. What do the blue and green LEDs indicate?
   Blue means the door is securely closed/locked; green means it is open/unlocked.

3. Is the BO600EVO compliant with safety regulations?
   It is certified to NF S61-937 and supports installation and maintenance per NF S61-932 and NF S61-933 standards.

4. Can I customize the color or length of the handle?
   Yes, RAL color customization and specific cutting lengths are available.

5. How is power supplied and what are typical consumption levels?
   It operates on 12/24/48V DC with a power draw of 480 mA, 240 mA, or 120 mA per magnet respectively.
