Product

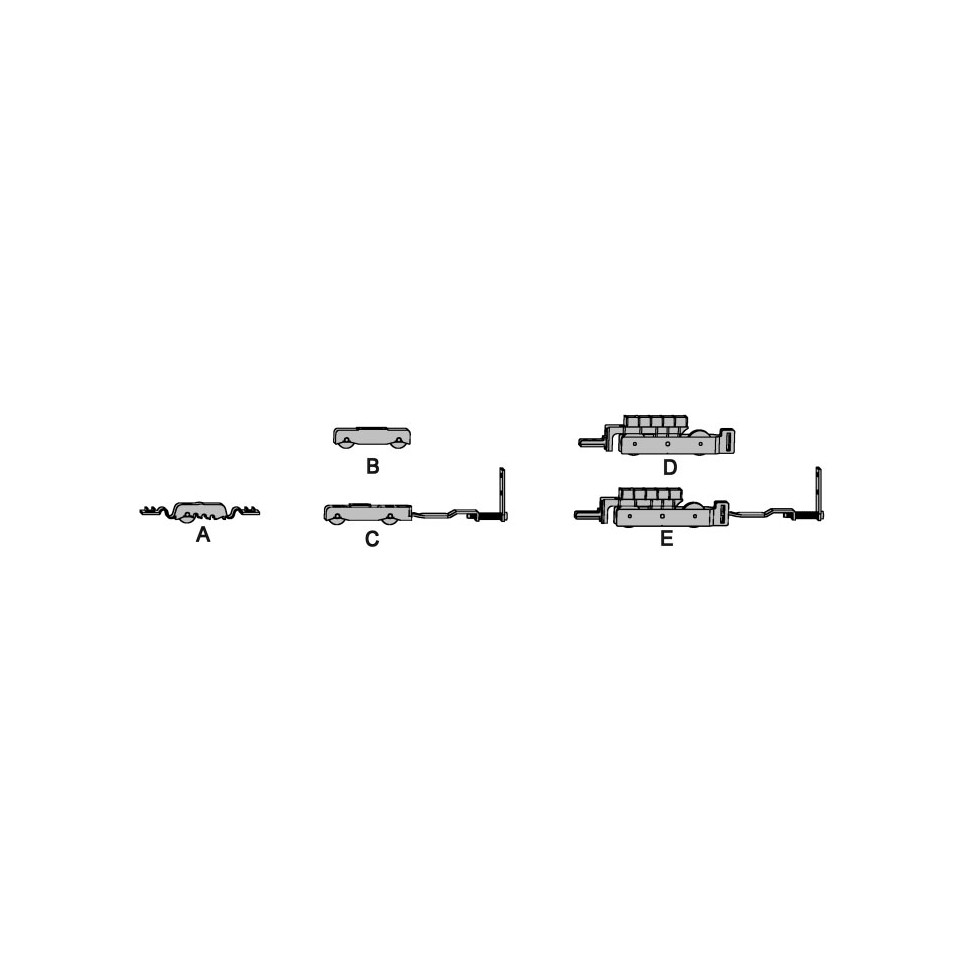

The Ferco Chape Roll Line 50 adjustable fitting is a dual-wheel bogie designed for sliding sashes up to 50 kg, offering either fixed or adjustable installation. It is compatible with SALAMANDER, Thyssen SR1-SF1, and VEKA CONTOUR & 2010 profiles, making it suitable for a range of PVC window and door systems.
Specifications
- Features a two-wheel bogie design, available in fixed or adjustable versions for precise sash alignment.
- Manufactured for robust and lasting performance, ensuring reliable sash movement for units up to 50 kg.
- Allows installation without notching the profile; the accessible adjustment mechanism does not require sash removal.
Usage
This fitting is mounted onto the sash to facilitate smooth sliding action for PVC windows or doors up to 50 kg. Its unique design enables on-site height and position adjustments through an accessible screw, all while the sash remains in place and the profile stays intact.
FAQ
-
What is the maximum sash weight supported?
The fitting supports sashes up to 50 kg.
-
Is profile notching required for installation?
No, installation can be completed without notching the profile.
-
Can sash adjustments be made after installation?
Yes, adjustments are accessible without removing the sash from its frame.
-
Which profiles are compatible with this product?
It is suitable for SALAMANDER, Thyssen SR1-SF1, and VEKA CONTOUR & 2010 profiles.
-
Is the Chape Roll Line 50 available in both fixed and adjustable formats?
Yes, you can select either fixed or adjustable configurations based on your project needs.
