Product

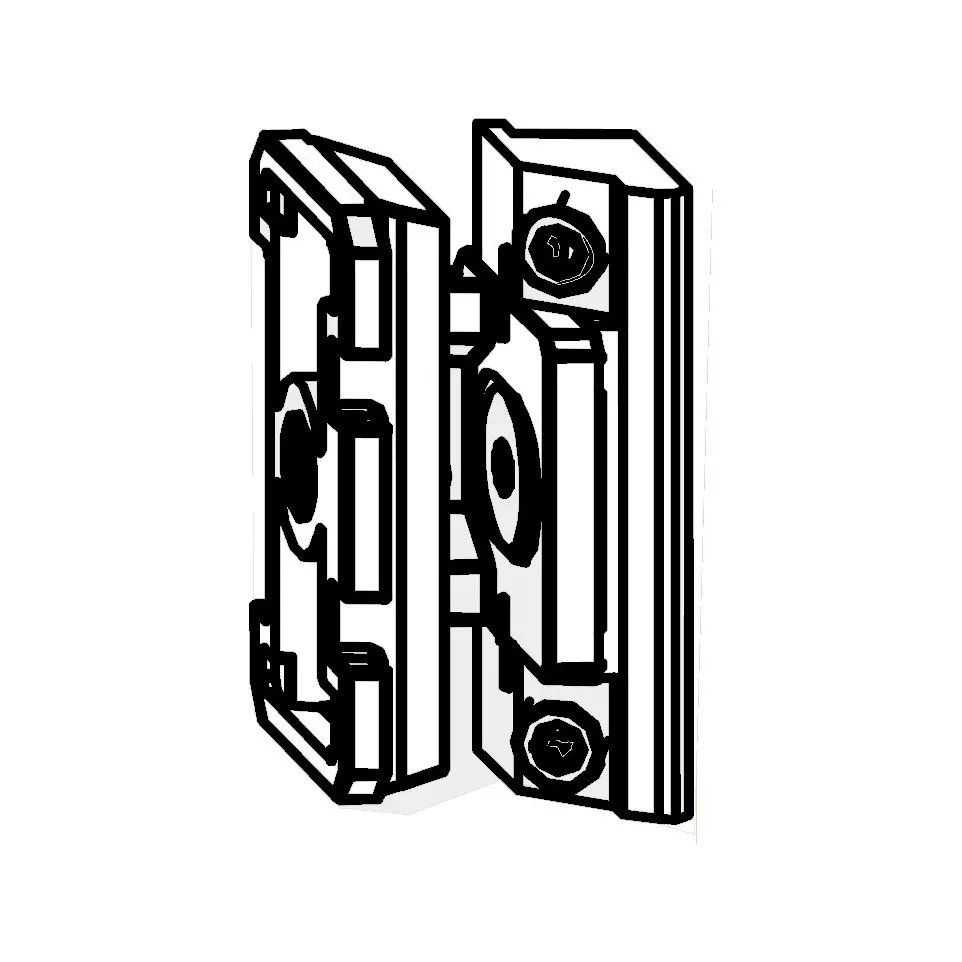

The Gâche compression invisible ouvrant-dormant R.740813 AL Designo by Roto is a concealed compression striker plate designed for aluminium opening frames. It provides secure and seamless sash-to-frame compression, enhancing both function and visual aesthetics in modern window systems.
Specifications
- Invisible and fully integrated into the frame for an uninterrupted appearance
- Constructed for compatibility with aluminium profiles using a modular design
- Supports overlay widths from 21.5 mm to 12 mm, with a groove clearance of 11.5–12 mm and a fitting axis of 10 mm
- Certified to GQ 328 for quality and reliability
- Integrated anti-slam safety and pre-assembled components facilitate secure and precise installation
- Suitable for sashes weighing 80–150 kg, with optional load transfer for heavier units
- Pre-assembled clamping elements simplify mounting, and the built-in drilling screw prevents horizontal movement
Usage
This compression striker plate is installed invisibly between the sash and the fixed frame of aluminium windows or doors. It ensures consistent and adjustable gasket compression, supporting maximum sash seal tightness. The product is compatible with multiple profile types and is designed for quick, reliable installation in tilt-and-turn or other opening frame systems.
FAQ
-
What type of window frames is this product designed for?
It is specifically designed for aluminium opening frames, particularly compatible with modular systems and various Euro-chamber profiles. -
Is the striker plate visible once installed?
No, it is fully concealed within the frame, preserving the minimalist appearance of the window or door. -
What sash weight can this product support?
It is suitable for sashes weighing between 80 and 150 kg, with optional components for supporting heavier sashes up to 180 kg. -
Does this product allow for gasket compression adjustment?
Yes, the integrated mechanism enables precise adjustment of gasket compression to ensure optimal sealing. -
Is special certification required for use in certain applications?
The striker plate is certified to GQ 328, meeting stringent quality requirements for window and door hardware.
