Cremone 330 F30 1451-1950mm / pce
€49.18
In stock
Usage

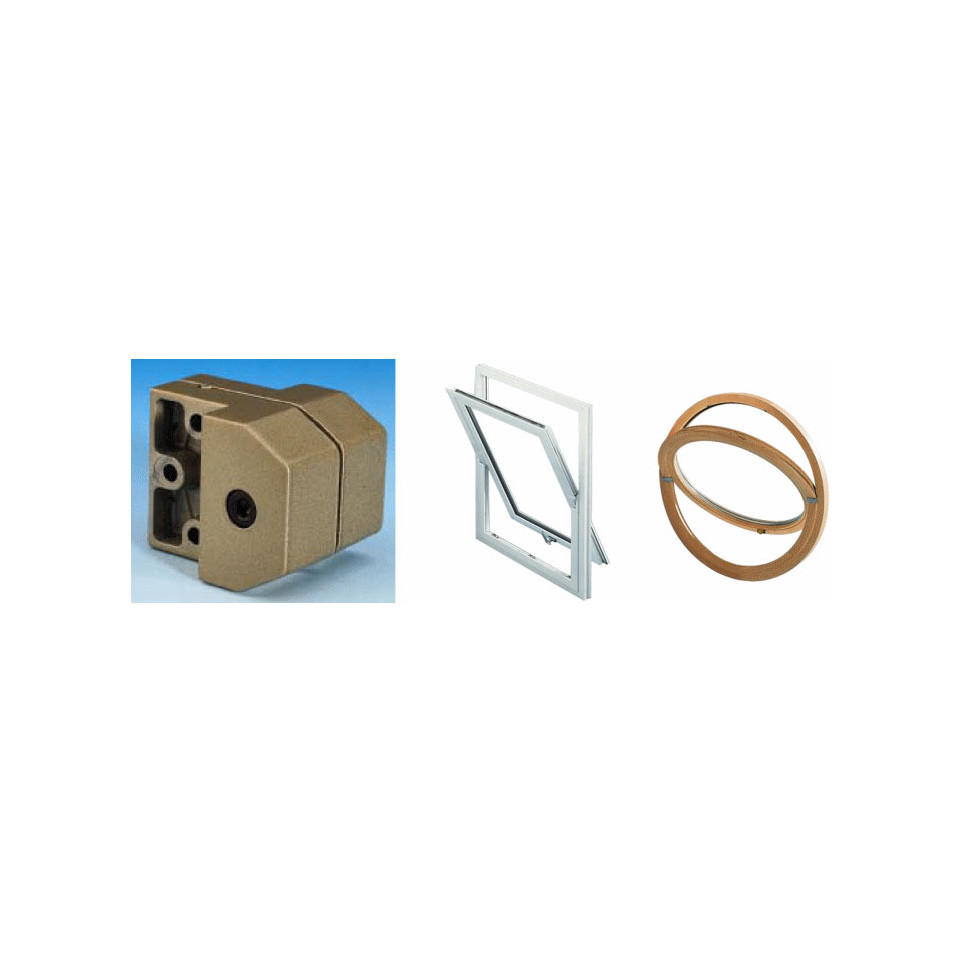

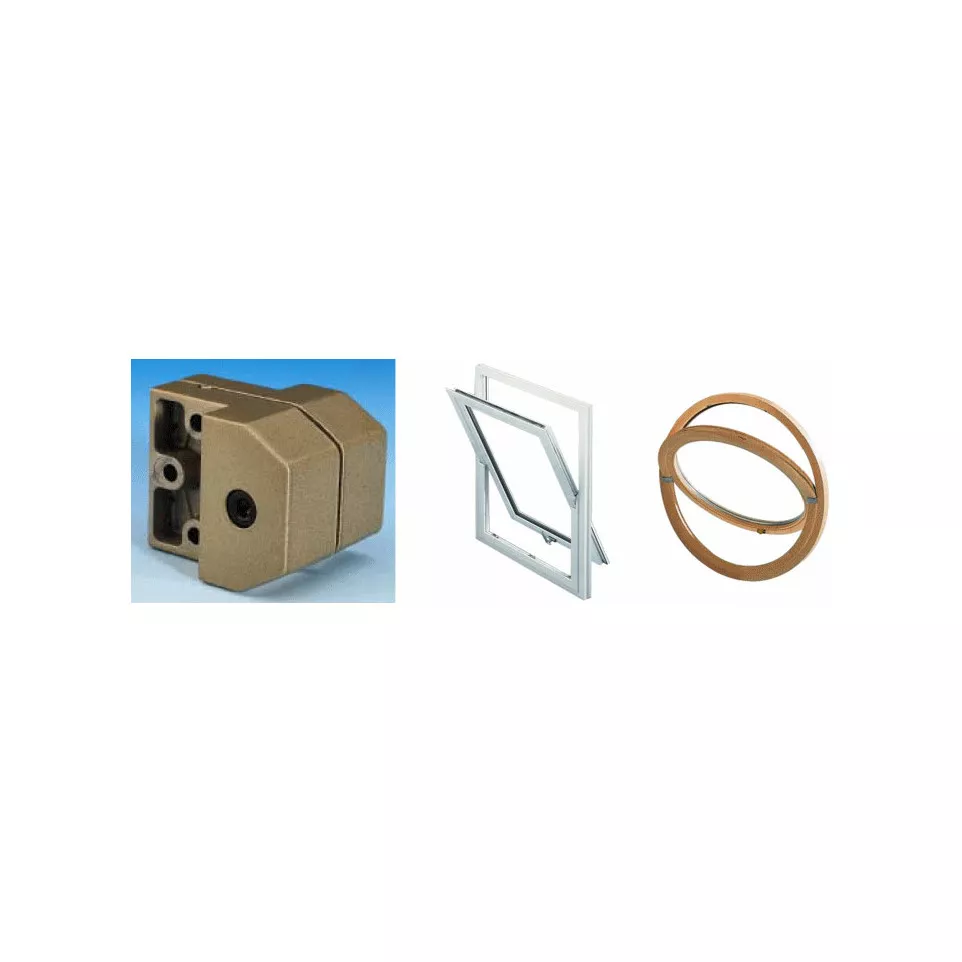

The Pivots Ferco n°50 are designed for mounting small pivoting or bull’s-eye (oeil de boeuf) windows, allowing smooth rotation and secure positioning in compact frame applications.
Advantages
- Compact dimensions enable use on small pivoting sashes and circular windows[1][2].
- Continuous adjustable braking system ensures stable positioning at any opening angle[1].
- Molded zamak body offers robust structural integrity and long-lasting performance[1].
- Fixation by six screws guarantees reliable attachment to the window frame[1][2].
- Easily accessible adjustment mechanism located on the glazing side for user convenience[1].
Specifications
- Molded zamak construction with metallic champagne-painted finish for corrosion resistance and aesthetics[1][2].
- Suits window sashes up to a maximum weight of 40 kg per set; ensures compatibility with most small frames[1][2].
- Pivot blade dimensions: width 20 mm, length 40 mm, depth/batée 24 mm; includes two pieces per set for complete mounting[1][2].
- Equipped with a continuously adjustable braking system, calibrated via hex screw after glazing installation for optimal balancing according to sash weight[1]. Fixation in rebate using six TF/90° Ø4 x 35 mm screws.
How it works
The pivots are installed at the top and bottom of the window sash. Once fixed in place with screws, they allow the sash to rotate smoothly around its axis. The built-in brake is adjusted after glass fitting to maintain balance in every open position, ensuring controlled movement without unexpected closing or drifting.
