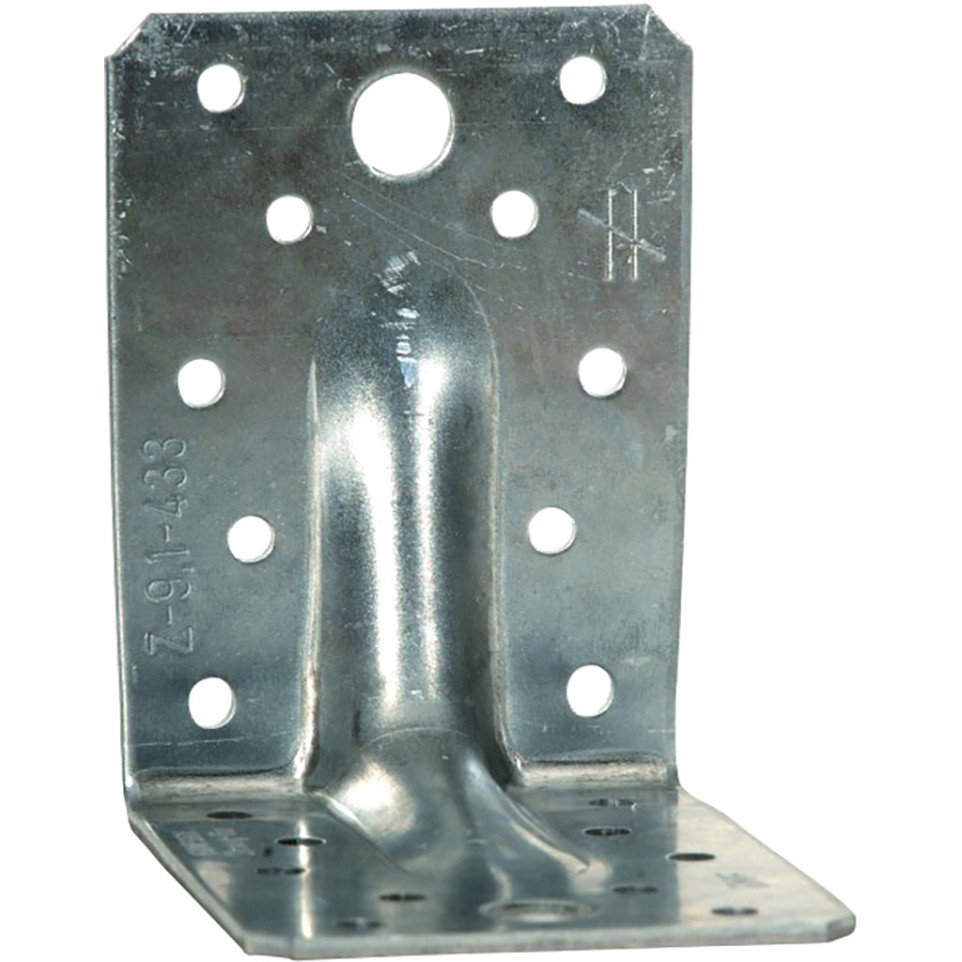

Reinforced Angle Bracket 65x90x90mm Thickness 2.5mm per piece

Product

The Simpson reinforced angle bracket 65x90x90mm with 2.5mm thickness offers robust structural support for timber frame construction, joinery, and roofing. Ideal for connecting beams, rafters, and other load-bearing elements in wood, concrete, or steel structures.

Specifications

• Manufactured from galvanized steel S250GD + Z275 according to NF EN 10346, ensuring excellent corrosion resistance and long-term durability
• Dimensions: 65mm width x 90mm height x 90mm depth; thickness: 2.5mm
• Equipped with pre-drilled holes: each wing contains 10 holes of 5mm diameter and 1 hole of 11mm diameter for versatile fixing options
• Designed to meet structural requirements in both wood and masonry assemblies
• Rigid, versatile, and suitable for a range of construction applications

Usage

Install the bracket at the junctions of structural elements by aligning it with the components to be joined. Secure using nails or screws through the pre-drilled holes. Suitable for fastening trusses, battens, wall plates, joists, and other framework elements in residential or commercial construction.

FAQ

1. What materials can this bracket be fixed to?

   • The bracket is suitable for solid wood, engineered wood, concrete, and steel structural elements.

2. Is the bracket corrosion-resistant?

   • Yes, it is made from hot-dip galvanized steel for corrosion protection in interior and exterior environments.

3. What fasteners should I use with this bracket?

   • Use appropriate screws or nails matching the hole diameters (5mm or 11mm), following local building codes and manufacturer guidelines.

4. Can this bracket be used for load-bearing applications?

   • Yes, it is designed for structural uses such as anchoring rafters, trusses, or beams where rigidity and stability are required.

5. Does the bracket comply with any standards?

   • It complies with NF EN 10346 for galvanized steel and is engineered for structural construction uses.
