Product

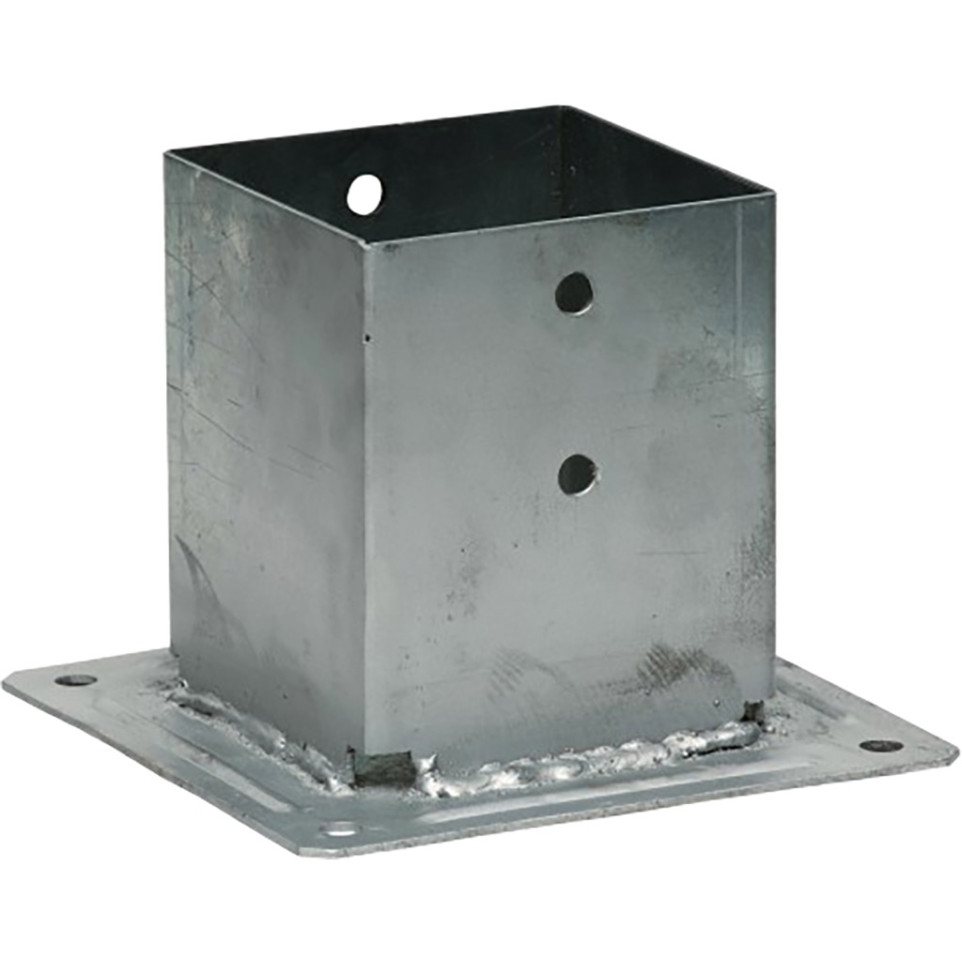

The Simpson 90x90mm bolt-down post base is designed for securely fixing wooden posts in garden fences, light wooden structures, or decking. It provides a stable and removable solution for both permanent and temporary outdoor constructions.
Specifications
- Made from hot-dip galvanized steel for enhanced corrosion resistance
- Black finish for discreet integration into garden and landscape designs
- Easy-to-dismantle design, suitable for temporary or permanent use
- Dimensions: 91x91mm internal width, 190mm height, 150mm base length
- Plate thickness: 4mm, post holder thickness: 3mm
- Four 12mm diameter fixing holes on the base plate, sixteen 8mm holes on the body
- Supports posts with a 90x90mm cross-section
Usage
Fix the base to a concrete or wooden surface using appropriate bolts, then insert the wooden post and secure with screws or bolts through the pre-drilled holes. Ideal for garden fences, pergolas, and other outdoor timber constructions requiring strong, level support.
FAQ
-
What size posts are compatible with this base?
- The base is designed for 90x90mm wooden posts.
-
Can this post base be removed after installation?
- Yes, its bolt-down design allows easy removal and reuse.
-
Is the product suitable for long-term outdoor exposure?
- Yes, the hot-dip galvanized steel provides strong resistance to weather and corrosion.
-
How should the base be secured to the ground?
- Use appropriate bolts or anchors to fix the plate onto concrete or robust timber surfaces.
-
Does this base fit applications other than garden fences?
- Yes, it is also suitable for pergolas, decking posts, and various light outdoor structures.
