Usage

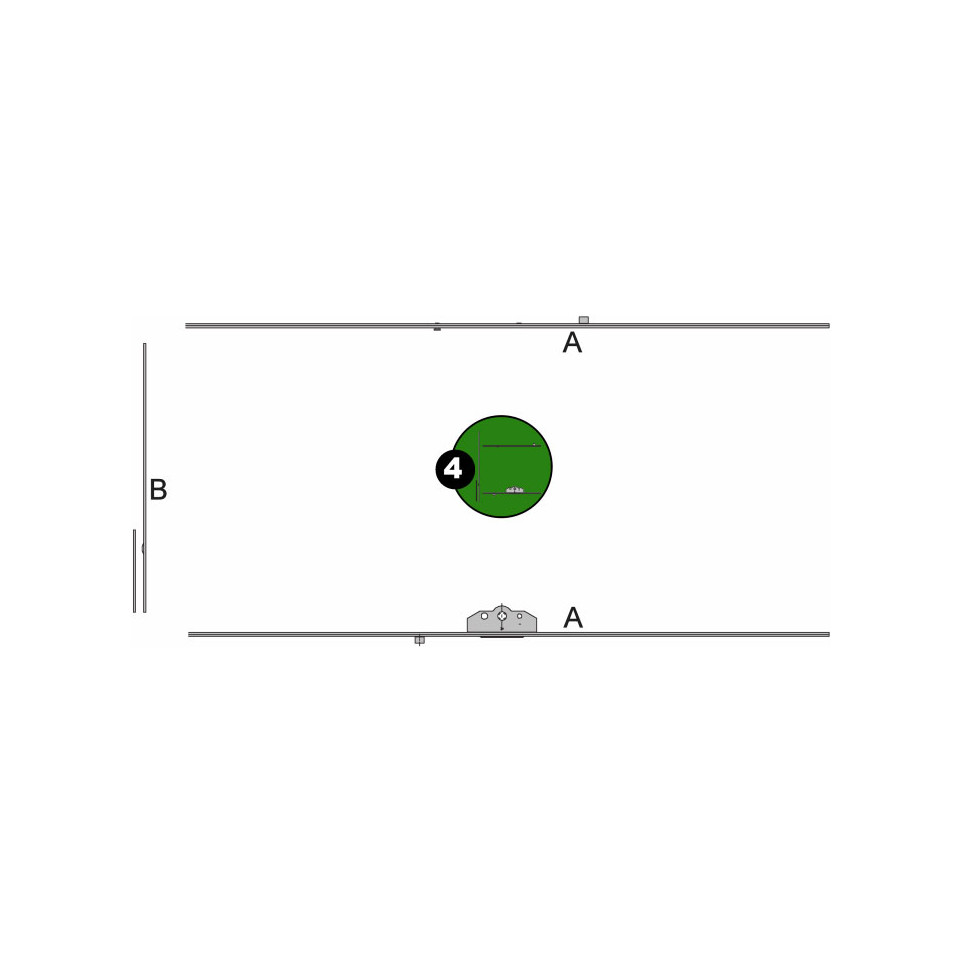

The Tringle Horizontale for Hautau Tornado 200 E25mm-1450mm is designed as a horizontal rod component for pivot window fittings, ensuring secure and efficient operation of PVC or timber windows with sash widths between 1101 mm and 1450 mm.
Advantages
- Specifically engineered for compatibility with the Hautau Tornado 200 swing sash system
- Supports smooth locking and unlocking operations in large pivot windows
- Adaptable to various profile systems using a standardized entry dimension of 25 mm
- Robust construction suitable for demanding architectural applications, supporting window sashes up to approximately 200 kg when used within system specifications
- A precise installation is required to maintain optimal performance in security and sealing functions
Specifications
- Design: Straight horizontal rod with an entry size of 25 mm; overall compatible sash width: from minimum LFF (longueur de la fenêtre finie) of approximately 1101 mm up to a maximum of about 1450 mm[1]
- Material: Galvanized steel or non-ferrous metal components, offering corrosion resistance suitable for building hardware environments[3][7]
- Tolerates high mechanical loads—part of a fitting set designed for sashes up to max. weight of 200 kg (when used within the full HAUTAU Tornado specification)[3][9]
- Differentiator: Engineered specifically as part of the complete HAUTAU security and sealing concept; integrates with multi-point locking systems and compatible across major Euro-groove profiles by leading window manufacturers[1][7]
How it works
This horizontal rod installs into the designated slot in the window profile, connecting directly with the cremone mechanism. When actuated by the handle, it transmits force laterally along its length to operate multiple locking points simultaneously, securing or releasing the sash on demand as part of the overall HAUTAU Tornado system.
