Fischer TherMax 10 Stand-off Installation Fastener 120 mm M6 per piece

Product

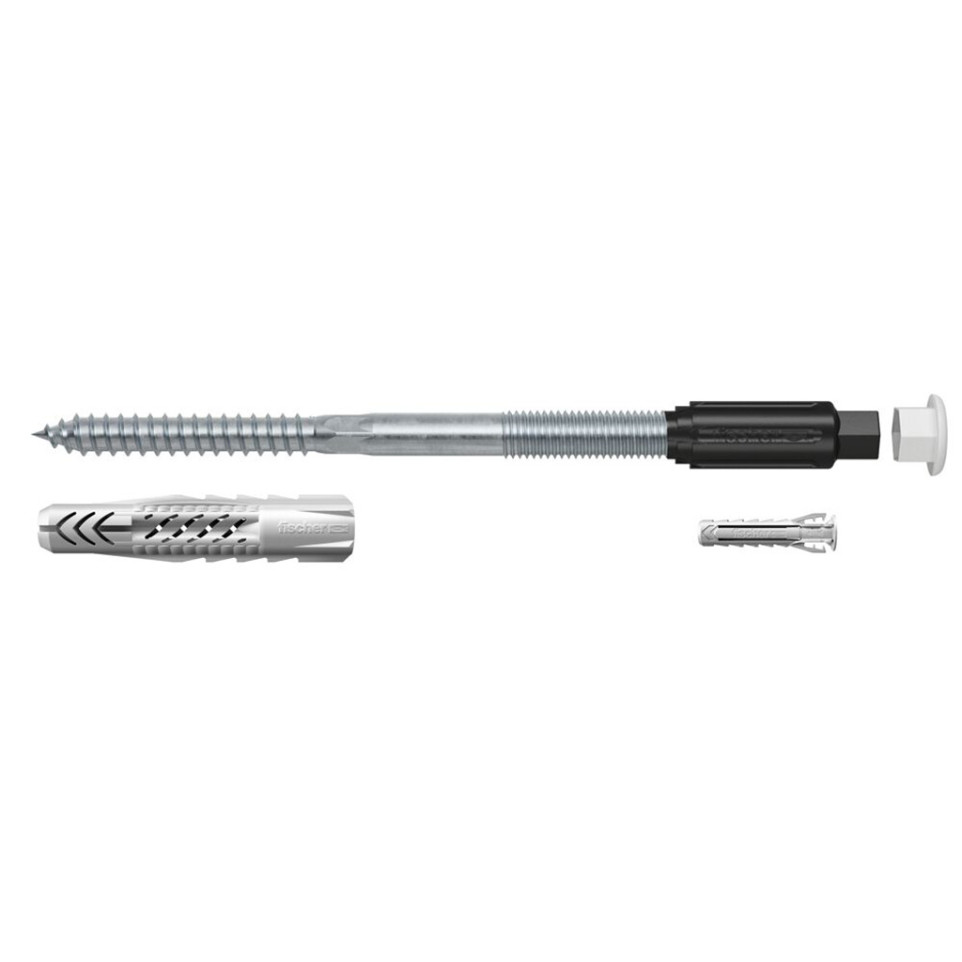

Fischer Thermax 10 / 120 - M6 is a stand-off fixation system for distance installation through insulation, designed to mount fixtures securely without creating thermal bridges. Ideal for use with external thermal insulation composite systems in various construction environments.

Specifications

• Features a self-cutting plastic cone that penetrates insulation and plaster layers, eliminating the need for special installation tools.
• Constructed with a glass-fibre reinforced cone to break thermal bridges and provide robust support.
• Allows precise adjustment of mounted objects without compressing or damaging the insulation layer.
• Suitable for all common construction materials, including concrete, aerated concrete, perforated and solid brick.
• Anchor depth: 70 mm; cover cap diameter: 22 mm.

Usage

The Thermax 10 / 120 is installed directly through the insulation with its self-cutting plastic cone, requiring no dedicated setting tool. The system securely fixes medium-load attachments such as lights, mailboxes, or lightning rods, while maintaining the insulation’s integrity and thermal efficiency.

FAQ

1. What is the main advantage of the Thermax 10 / 120 system?

   • The primary benefit is the prevention of thermal bridging thanks to the integrated plastic insulation cone.

2. Is special equipment needed for installation?

   • No, the self-cutting cone design enables installation without dedicated tools, streamlining setup and saving time.

3. What materials can this fixation be used with?

   • It is compatible with all major construction materials, including concrete, aerated concrete, and various brick types.

4. Can the fixture be adjusted after installation?

   • Yes, the system allows for precise adjustment of the mounted piece without damaging or marking the insulation.

5. What are the key dimensions of the product?

   • The anchor achieves a depth of 70 mm and the protective cap has a diameter of 22 mm.
