Oli RF Wireless Touch Switch White per piece
€19.66
In stock
Product

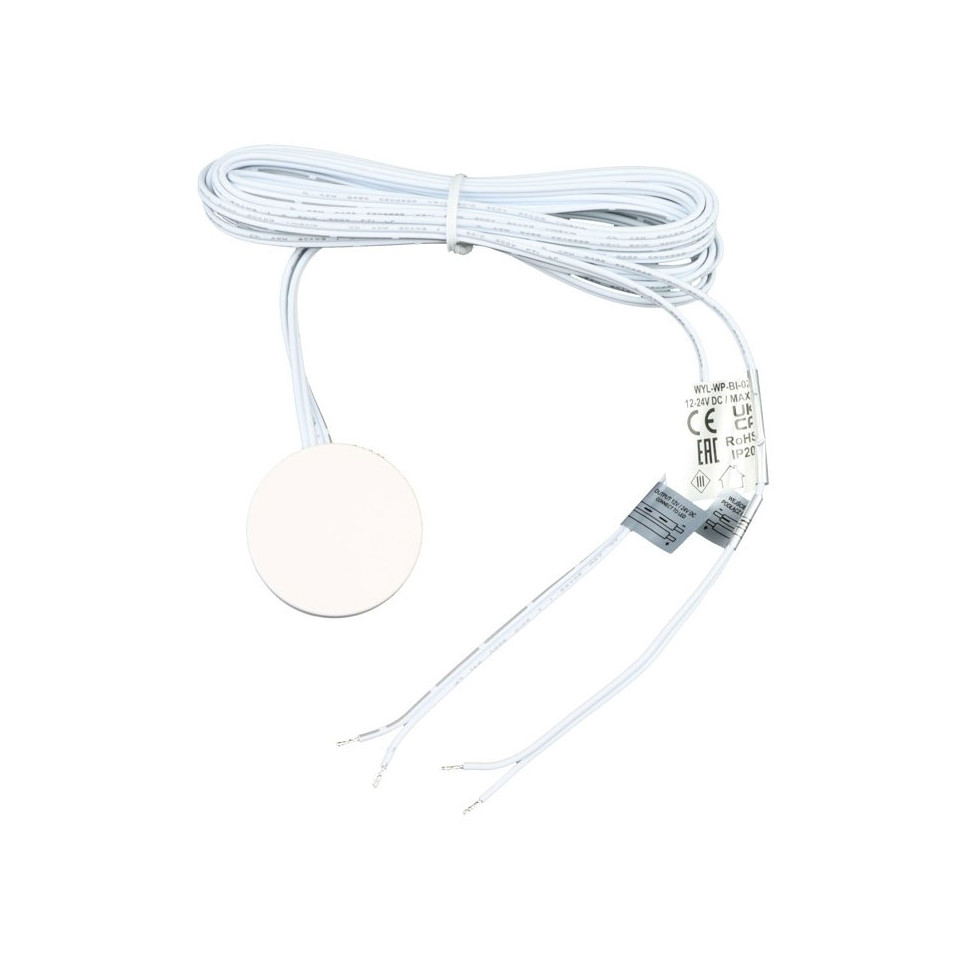

The Captive Switch 12V-24V is a capacitive under-counter switch designed to control LED lighting by turning any furniture panel or countertop surface up to 38mm thick into a touch-activated switch. It comes with a 2m cable for flexible installation.
Specifications
- Capacitive touch technology allows activation through solid surfaces such as wood, stone, or laminate panels ranging from 16mm to 38mm in thickness
- Operating voltage of 12V or 24V DC with a maximum load capacity of 5A, supporting up to 60W at 12V or 120W at 24V
- IP20 rating, suitable for dry indoor environments such as kitchens, bathrooms, and furniture installations

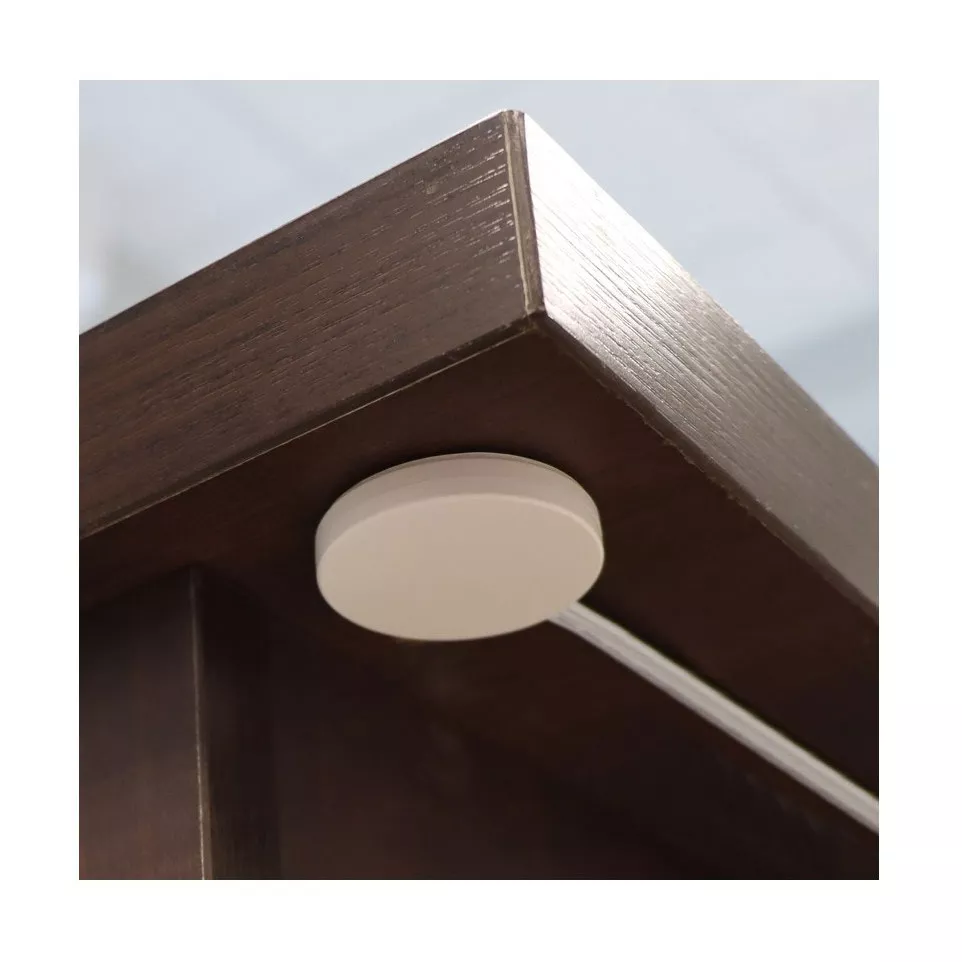

- Compact form factor with self-adhesive tape for secure mounting beneath the surface

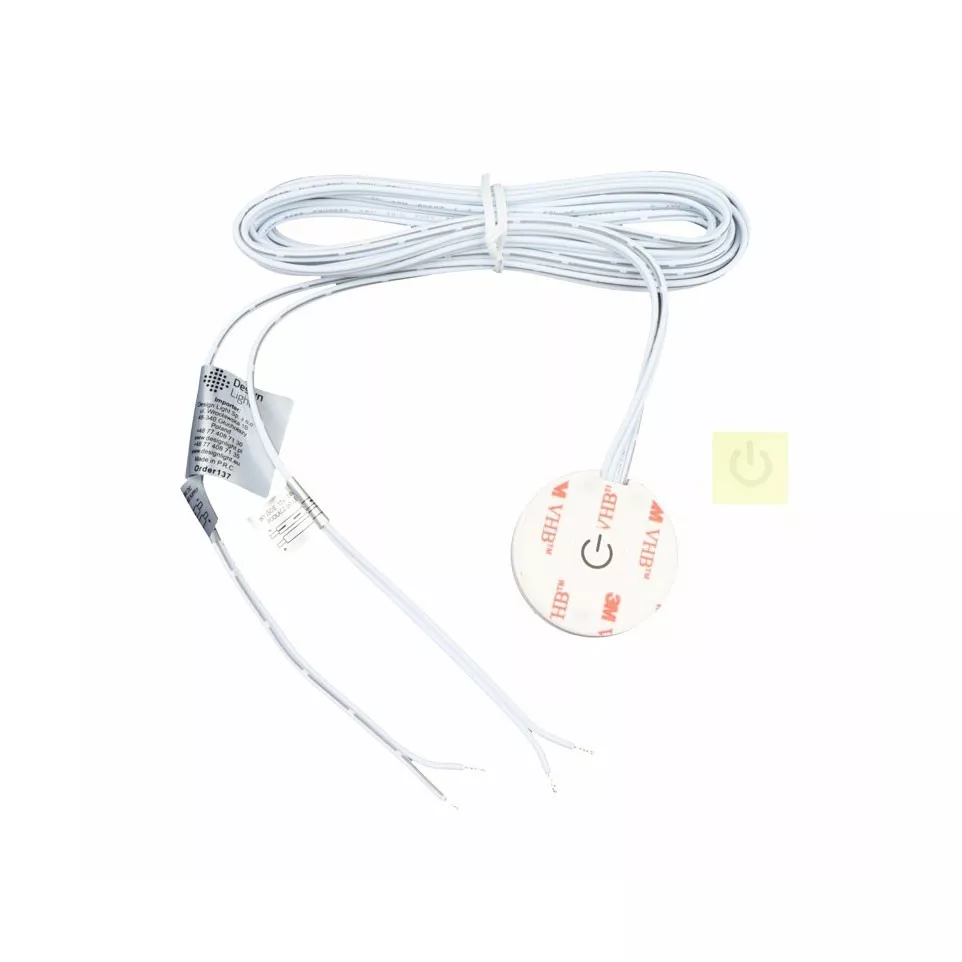

- Includes a dedicated sticker with a switch symbol to mark the activation point on the countertop
- Supplied with a 2m connection cable for convenient wiring to LED drivers or power supplies
Usage

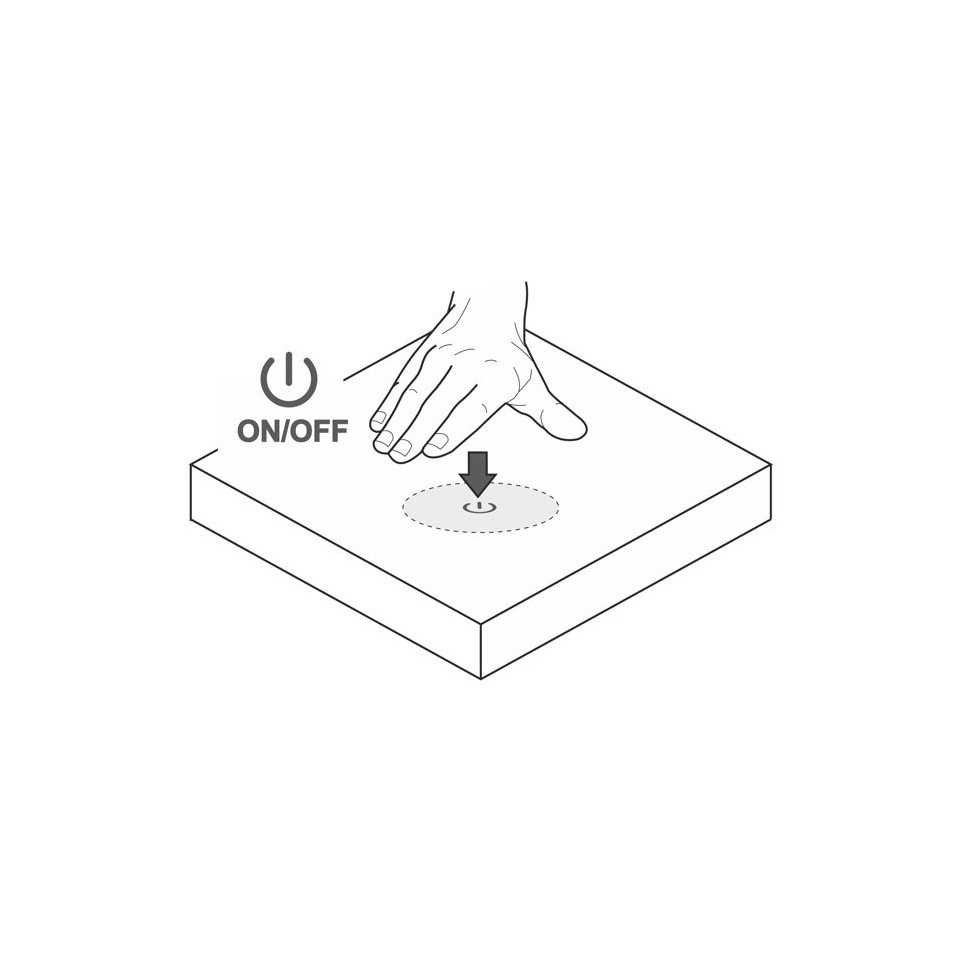

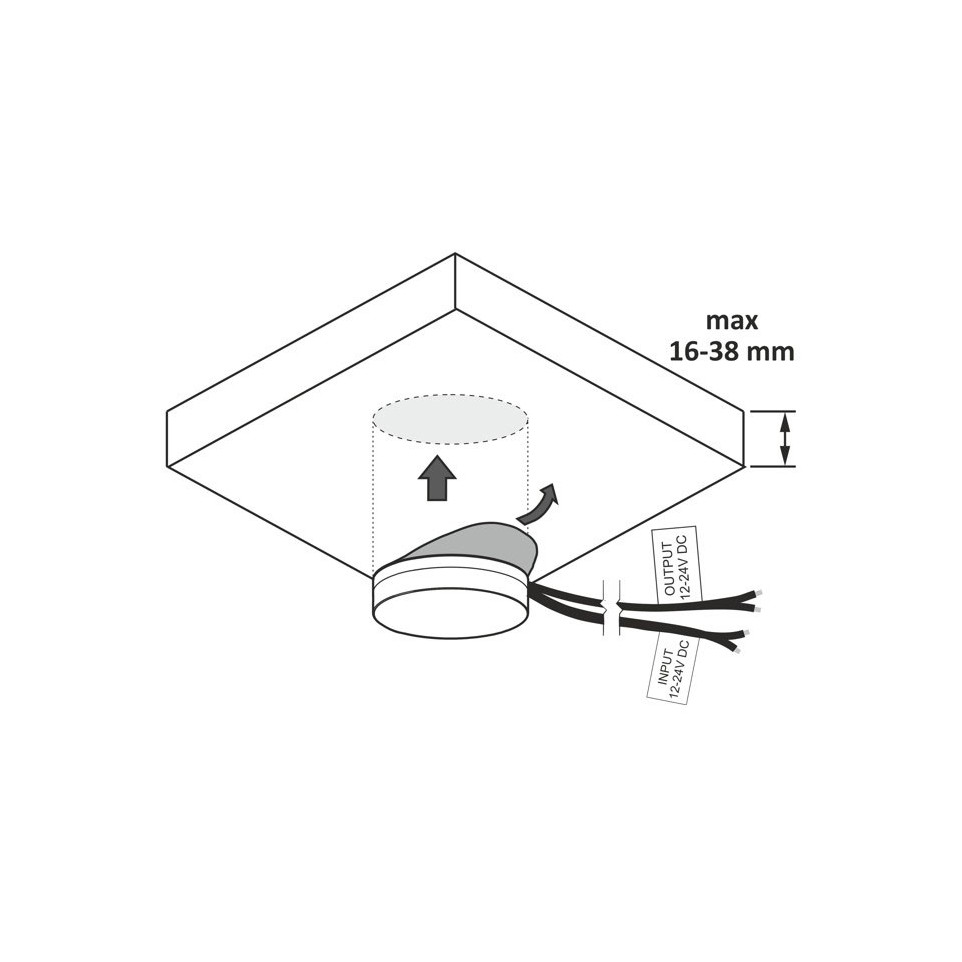

Mount the switch underneath your furniture panel or countertop using the included adhesive tape. Connect it to your 12V or 24V LED lighting circuit. Place the provided symbol sticker on the surface above to indicate the touch zone. A light touch on the marked area activates or deactivates the connected lighting. No drilling or visible hardware is required, keeping the surface clean and uninterrupted.
FAQ
- What maximum surface thickness can this switch operate through? The capacitive sensor works reliably through panels and countertops with a thickness between 16mm and 38mm.
- Can I use this switch with both 12V and 24V LED systems? Yes, the switch is compatible with both 12V and 24V DC power supplies, handling up to 5A maximum load on either voltage.
- How is the switch installed? It mounts directly beneath the surface using the included self-adhesive tape. No drilling or cutting into the countertop is necessary.
- Is this switch suitable for use in wet areas such as bathrooms? The switch carries an IP20 rating, meaning it is designed for dry indoor environments. It is not protected against water splashes or moisture exposure.
- How do I know where to touch the surface to activate the switch? A sticker with a switch symbol is included so you can mark the exact activation point on the top side of your countertop or panel for easy identification.
