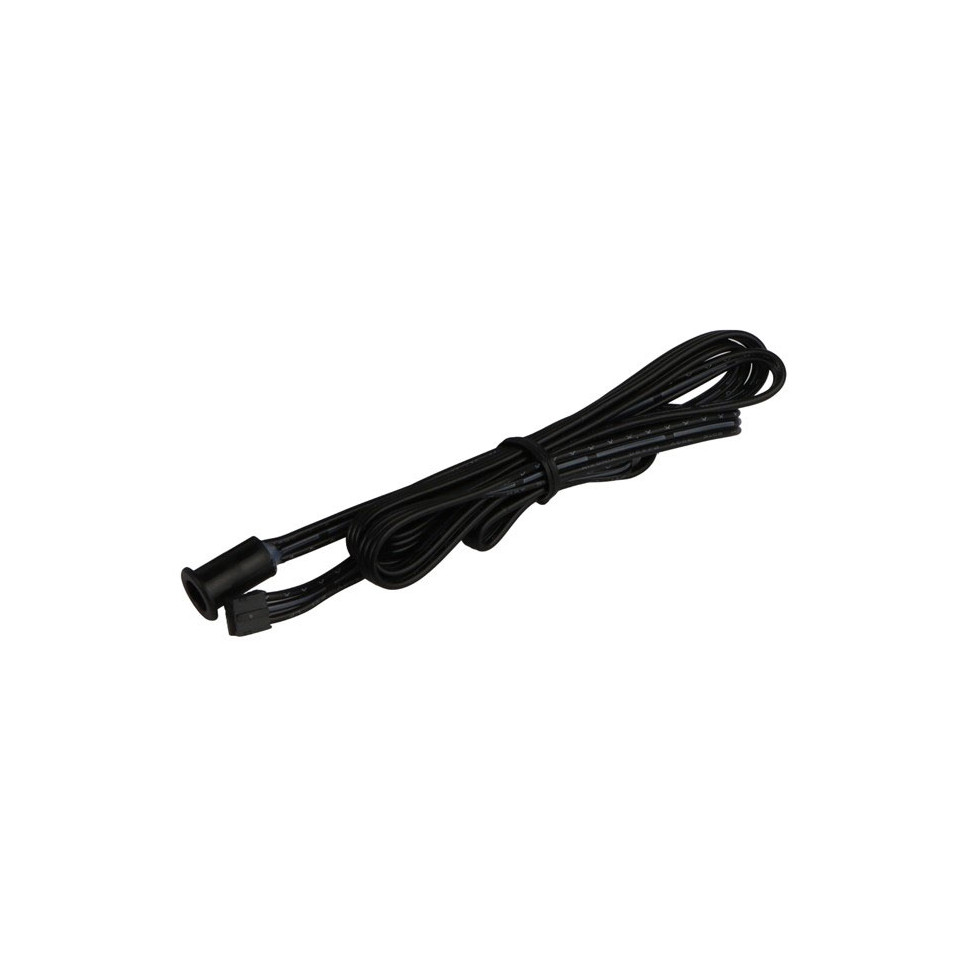

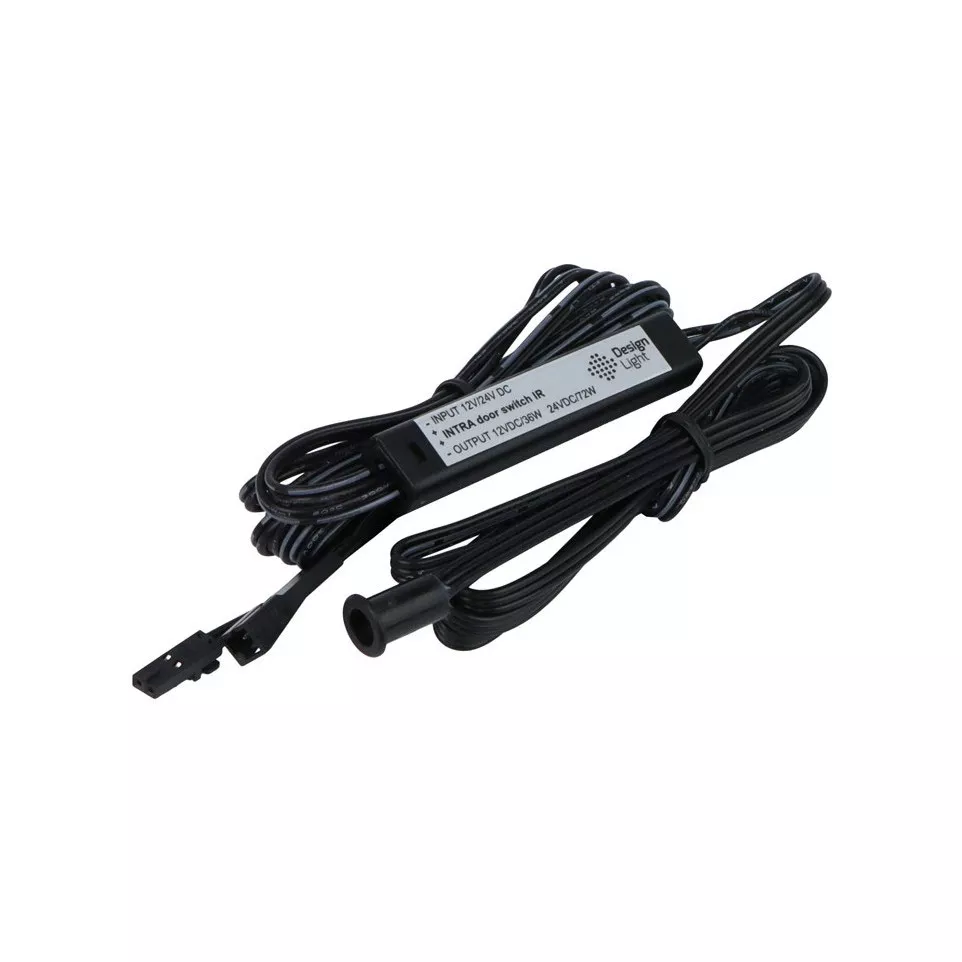

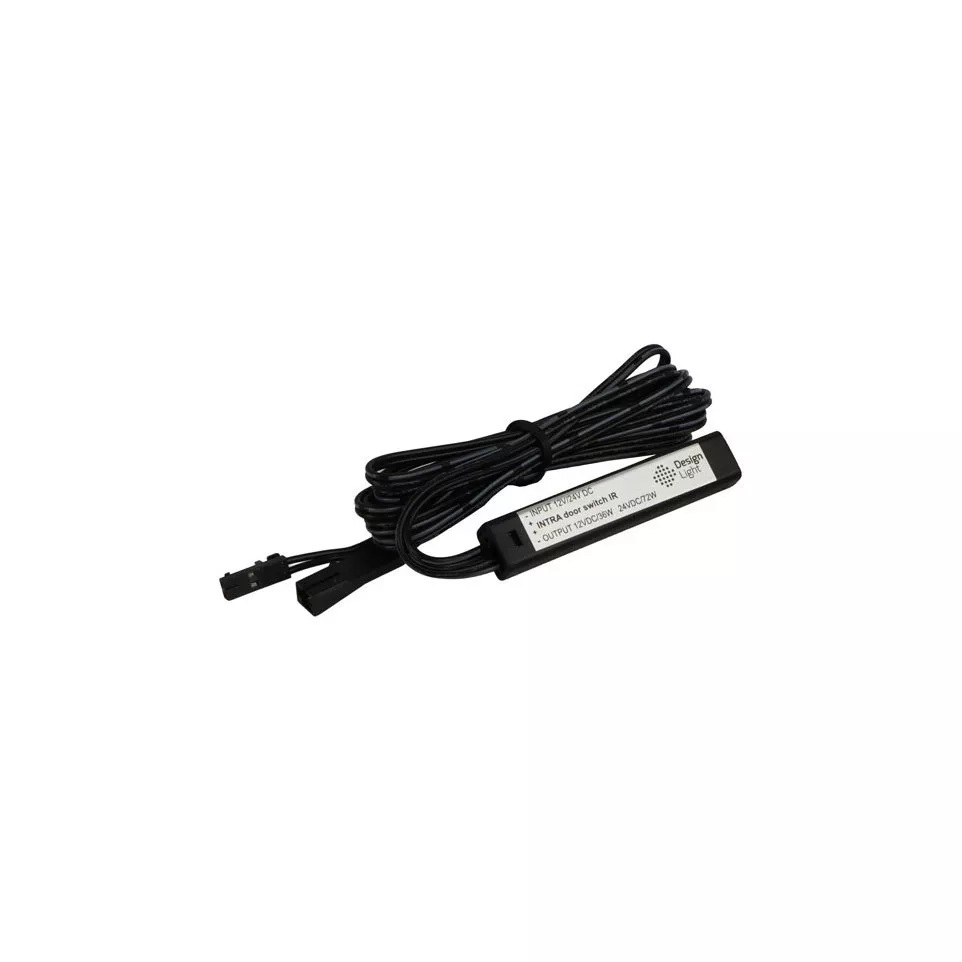

INTRA Infrared Furniture Switch Black / pce

Product

The INTRA Infrared Furniture Switch in black is a contactless lighting control solution designed for LED lighting in cabinets, wardrobes, and drawers.

Specifications

• Contactless infrared detection technology for hands-free operation
• Compatible with 12V DC (max 36W) and 24V DC (max 72W) LED lighting systems
• Detection range of 2 to 100 mm for white surfaces and 2 to 40 mm for black surfaces
• Suitable for both standard hinged and sliding door furniture
• Compact design for seamless furniture integration
• Color: Black

Usage

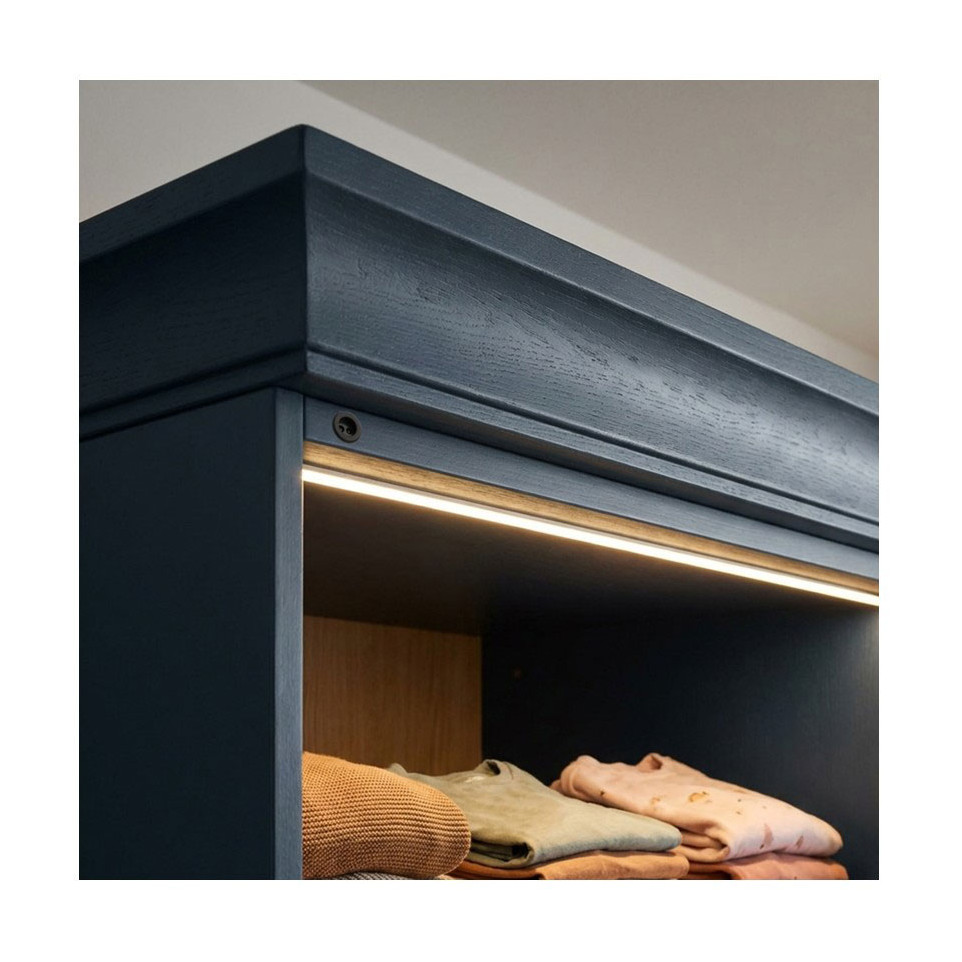

Install the INTRA switch inside a cabinet or drawer. When the door opens, the infrared sensor detects its presence and activates the LED lighting automatically. Closing the door moves it out of detection range, switching the light off without any physical contact.

FAQ

1. What type of lighting is compatible with the INTRA switch? — The switch is designed exclusively for LED lighting systems operating at 12V DC or 24V DC.
2. Does the switch work with sliding doors? — Yes, the INTRA switch is compatible with both traditional hinged doors and sliding door furniture.
3. What is the maximum load the switch can handle? — It supports up to 36W at 12V DC and up to 72W at 24V DC.
4. Does the detection range vary depending on surface color? — Yes, detection ranges from 2 to 100 mm for white surfaces and 2 to 40 mm for darker or black surfaces.
5. Is any physical contact required to operate the switch? — No, the infrared sensor activates and deactivates the lighting automatically based on door position, requiring no physical contact.
