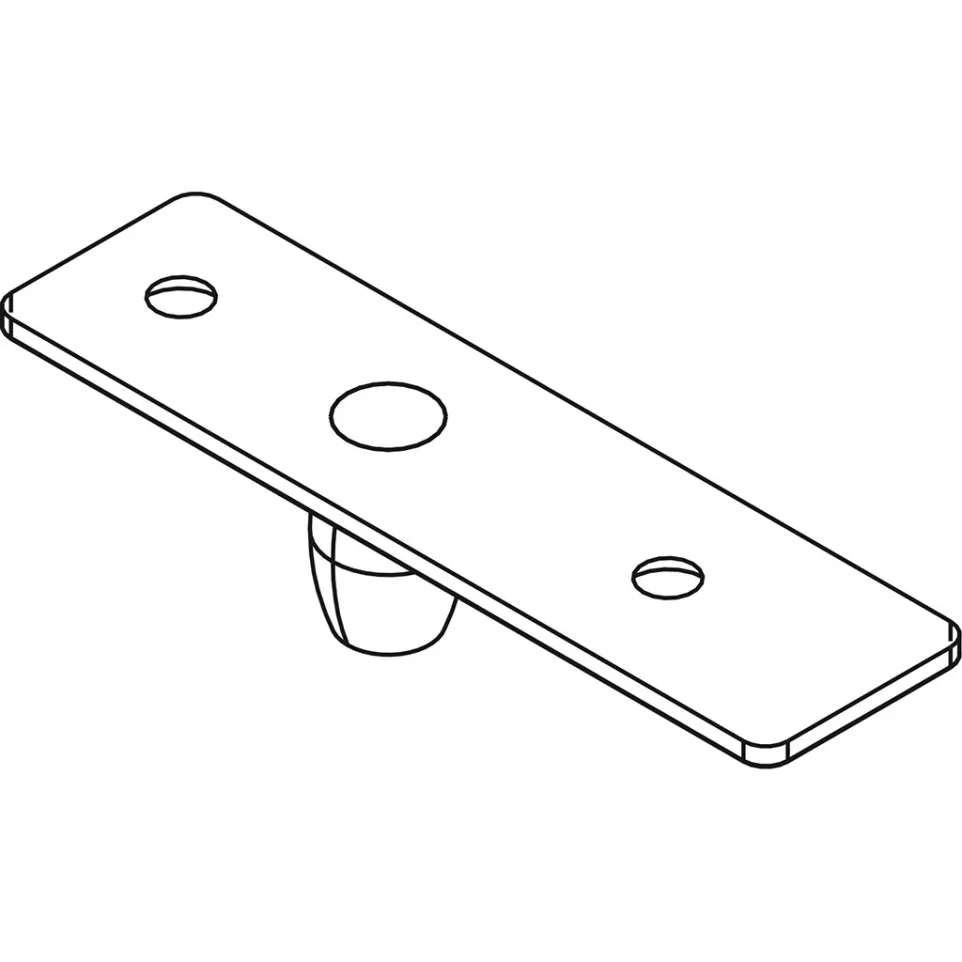

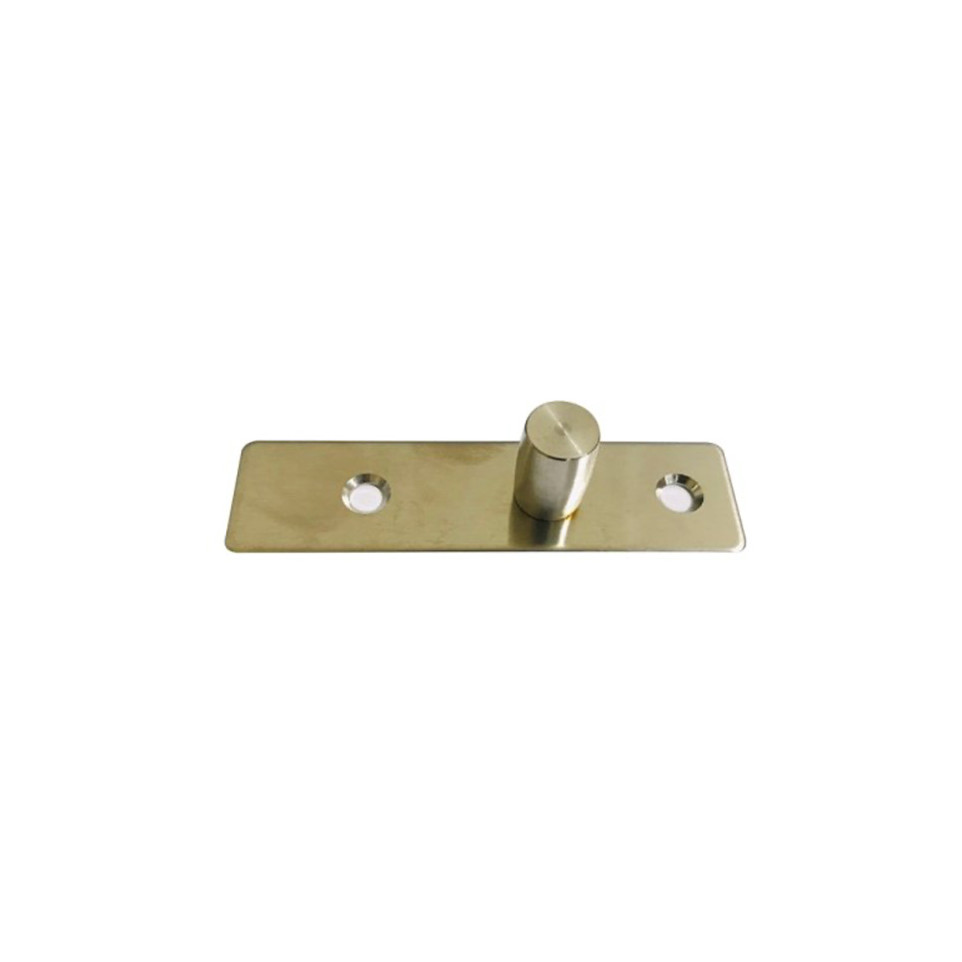

Dorma PT24 Top Pivot on Plate for DFG-2 Stainless Steel Glass Door / pc

Product

Rotation axis on plate Dorint PT24 / Top Pivot 1 for DFG-2 stainless steel is a robust component designed for glass door hinge assemblies, ensuring smooth and reliable pivoting of full-glass doors in commercial or residential environments. Use in combination with top hinge PT20 (FG 128006).

Specifications

• Constructed with stainless steel for corrosion resistance and durability
• Supports door leaf weights up to 100 kg, widths up to 1,000 mm, and heights up to 2,800 mm
• Compatible with single-action and double-action glass doors
• Designed for both interior and exterior glass door systems
• Engineered for use with matching upper hinge models to ensure secure and precise installation

Usage

The Dorint PT24 top pivot is mounted at the upper corner of the glass door frame, providing a reliable rotation axis for the door's opening and closing. It should be paired with the designated upper hinge for optimal performance, especially in stainless steel DFG-2 installations. Installation and detailed technical guidance are available on the manufacturer’s website.

FAQ

1. What doors is the Dorint PT24 Top Pivot compatible with?

   • It is compatible with full-glass doors, suitable for both single-action and double-action applications.

2. What is the maximum door weight and size supported?

   • This pivot supports door leaf weights up to 100 kg, widths up to 1,000 mm, and heights up to 2,800 mm.

3. Can the PT24 Top Pivot be used outdoors?

   • Yes, its stainless steel construction is suitable for both indoor and outdoor glass door systems.

4. Does this pivot require a specific upper hinge to function correctly?

   • Yes, it is designed for use in combination with the PT20 upper hinge (FG 128006) for proper installation.

5. Where can I find installation instructions or additional technical information?

   • Detailed installation instructions and specifications are available on the brand’s official website.
